| Manufacturer model | Archer BE400 |
|---|
| Product type | Router |
|---|
| WiFi Speeds | BE6500 • 5 GHz: 5764 Mbps • 2.4 GHz: 688 Mbps |
|---|
| WiFi Range | 3 Bedroom Houses 6× External Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range |
|---|
| WiFi Capacity | High Dual-Band Allocate devices to different bands for optimal performance MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple clients Airtime Fairness Improves network efficiency by limiting excessive occupation DFS Access an extra band to reduce congestion 4 Streams Connect your devices to more bandwidth |
|---|
| Advanced Features | • Multi-Link Operation (MLO) • 4K-QAM • Multi-RUs • EasyMesh-Compatible • Works with Alexa and Google Assistant • IoT Network |
|---|
| Wireless Mode | • Router Mode • Access Point Mode |
|---|
| Network Security | • SPI Firewall • Access Control • IP & MAC Binding • Application Layer Gateway • HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
|---|
| Guest Network | • 1× 5 GHz Guest Network • 1× 2.4 GHz Guest Network |
|---|
| VPN Server | • OpenVPN Server • PPTP VPN Server • L2TP VPN Server • WireGuard VPN Server |
|---|
| VPN Client | • Open VPN Client • PPTP VPN Client • L2TP VPN Client • WireGuard VPN Client |
|---|
| WiFi Encryption | • WPA • WPA2 • WPA3 • WPA/WPA2-Enterprise (802.1x) |
|---|

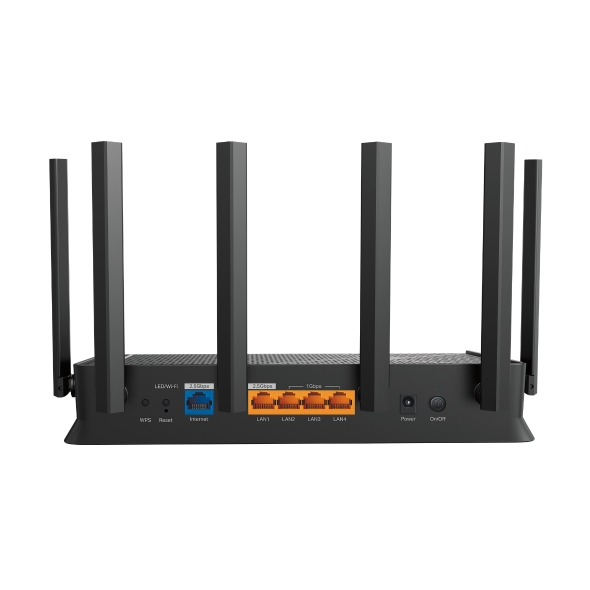

| Ethernet Ports | • 1× 2.5 Gbps WAN • 1× 2.5 Gbps LAN • 3× 1 Gbps LAN |
|---|
| USB Support | 1× USB 3.0 • Supported Partition Formats: NTFS, exFAT, HFS+, FAT32 • Supported Functions: FTP Server Media Server Samba Server |
|---|
| Power | 12 V ⎓ 2.5 A |
|---|
| Buttons | • Power Button • Wi-Fi/LED Button • WPS Button • Reset Button |
|---|
| Protocol | • IPv4 • IPv6 |
|---|
| Service Kit | HomeShield Learn More> |
|---|
| EasyMesh | Compatible with EasyMesh |
|---|
| Parental Controls | HomeShield Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports |
|---|
| WAN Type | • Dynamic IP • Static IP • PPPoE • PPTP • L2TP |
|---|
| Quality of Service | QoS by Device |
|---|
| Cloud Service | • Auto Firmware Upgrade • TP-Link ID • DDNS |
|---|
| NAT Forwarding | • Port Forwarding • Port Triggering • DMZ • UPnP |
|---|
| IPTV | • IGMP Proxy • IGMP Snooping • Bridge • Tag VLAN |
|---|
| DHCP | • Address Reservation • DHCP Client List • Server |
|---|
| DDNS | • TP-Link • NO-IP • DynDNS |
|---|
| Management Features | • Tether App • Webpage |
|---|
| Network Services Enabled by Default | Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCP DNS DNS • Port: 53 Protocol: TCP & UDP DHCP Server IP address assignment (DHCP) • Port: 67 Protocol: UDP App management Manage and configure device through app • Port: 20001 Protocol: TCP • Port: 30001 Protocol: TCP • Port: 20002 Protocol: UDP |
|---|
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browserCable or DSL Modem (if needed)Subscription with an internet service provider (for internet access) |
|---|
| Certifications | CE, FCC |
|---|
| Environment | • Operating Temperature: 0℃~40℃ (32℉ ~104℉)• Operating Humidity: 10%~90% non-condensing |
|---|
| Ethernet speed | 2.5Gbps |
|---|
| Wi-Fi Standard | Wi-Fi 7 |
|---|
