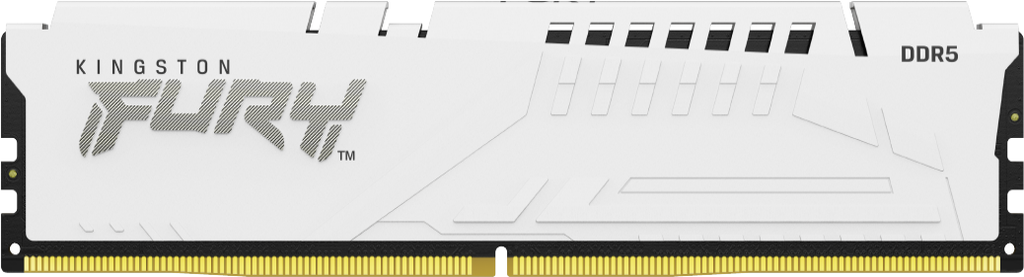

Kingston Memory DDR5 Fury Beast 16GB 6000Mhz KF560C30BW-16 CL30 Intel XMP White
Part# / SKU :
KF560C30BW-16Product Warranty :
Lifetime WarrantyBarcode :
740617343366Kingston Memory DDR5 Fury Beast 16GB 6000Mhz KF560C30BW-16 CL30 Intel XMP White
Type: DDR5; Capacity: 16GB; Transfer Rate: 6000MT/s; Form Factor: DIMM; Module Count: 1
Technical specifications
| Memory type | DDR5 |
|---|---|
| Total capacity | 16GB |
| Rated transfer rate (up to) | 6000MT/s |
| Module form factor | DIMM |
| Modules in package | 1 |
| Module capacity | 16GB |
| Rank and organization | 1Rx8 |
| Pins | 288 |
| JEDEC default CAS latency | 40 cycles |
| Default row cycle time (tRCmin) | 48ns minimum |
| Default refresh command time (tRFCmin) | 295ns minimum |
| Default row active time (tRASmin) | 32ns minimum |
| Operating temperature | 0°C to85°C |
| Storage temperature | -55°C to100°C |
| UL rating | 94 V-0 |
| Dimensions with heat spreader | 133.35 x34.9 x6.62mm |
| Dimension tolerance | ±0.15mm unless otherwise specified |
| Power supply VDD | 1.1V |
| Power supply VDDQ | 1.1V typical |
| VPP | 1.8V typical |
| VDDSPD | 1.8V to2.0V |
| On-die ECC | Supported; distinct from system-level ECC UDIMM/RDIMM |
| JEDEC default | DDR5-4800 CL40-39-39 @1.1V |
| XMP Profile1 | DDR5-6000 CL30-36-36 @1.4V |
| XMP Profile2 | DDR5-5600 CL40-40-40 @1.25V |
| Profile support | Intel XMP3.0 |
| Rated performance conditions | Published timing/profile requires compatible CPU/motherboard and supported BIOS settings; may not be reached by all systems. |
| RAM Type | DDR5 |
| RAM Capacity | 16GB |
| RAM Transfer Rate | 6000MT/s |
| RAM Form Factor | DIMM |
| RAM Module Count | 1 |
| Memory Capacity | 16GB |
| Memory Latency | CL30 |
| Memory Speed | 6000 MHz |
