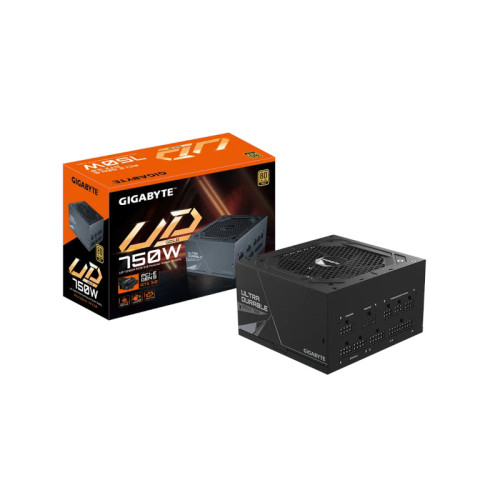

Gigabyte PSU 750W GP-UD750GM PG5 Gold
Barcode :
4719331553692Gigabyte PSU 750W GP-UD750GM PG5 Gold
Rated output: 750W. Efficiency certification: 80 Plus Gold. Fully modular outputs allow the required cables to be connected. Cooling: 120mm Hydraulic Bearing(HYB)fan. Protection: OVP/OPP/SCP/UVP/OCP/OTP.
Technical specifications
| Model | GP-UD750GM PG5 |
|---|---|
| Type | Intel Form Factor ATX 12V v3.0 |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 12-6A |
| Input Frequency | 60-50 Hz |
| Output Capacity | 750W |
| Dimensions | 150 x 140 x 86mm |

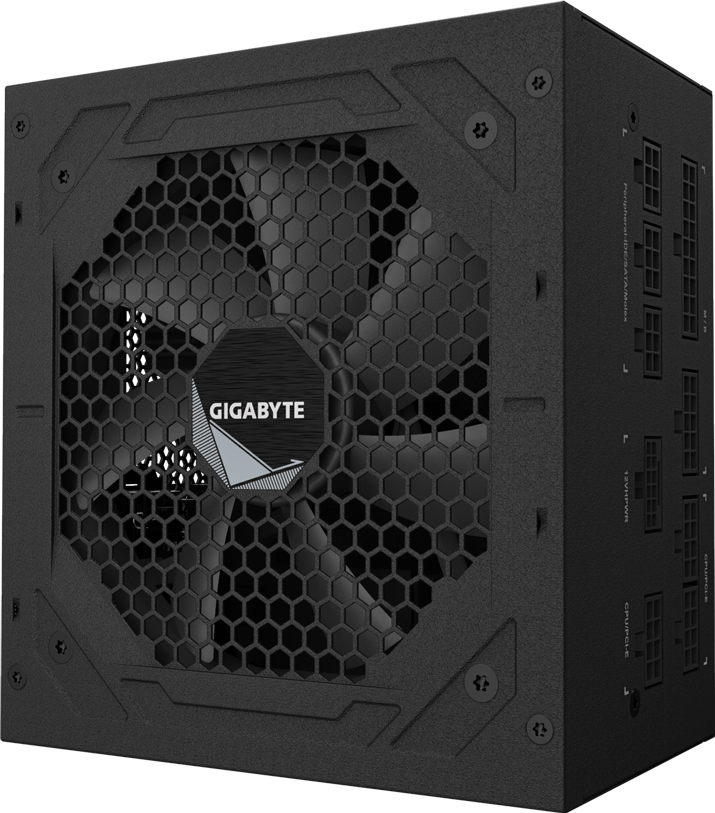

| Fan Type | 120mm Hydraulic Bearing(HYB)fan |
| 80 PLUS | Gold |
| Efficiency | 90% at typical load |
| MTBF | >100,000 hours |
| Protections | OVP/OPP/SCP/UVP/OCP/OTP |
| Power Good Signal | 100-150ms |
| Hold Up Time | >16ms |
| Cable Type | Flat, All black |

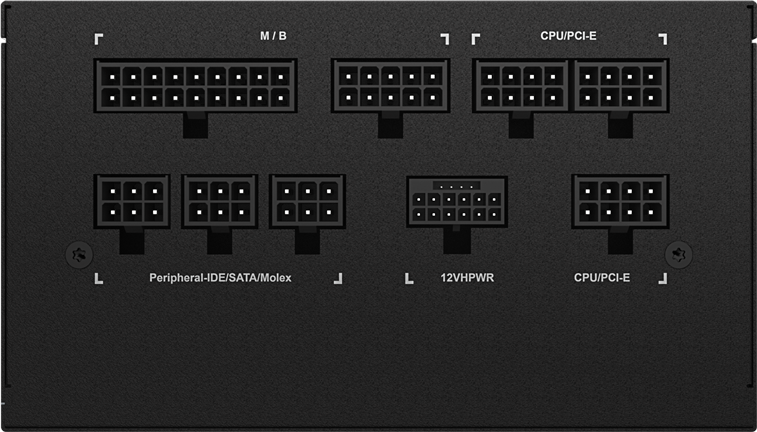

| Connectors | ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1 PCIe 16 Pin x 1: 700mm*1 PCIe 6+2 Pin x 4 : 600mm+150mm*2 SATA x 8 : 600mm+150mm+150mm+150mm*2 4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1 |

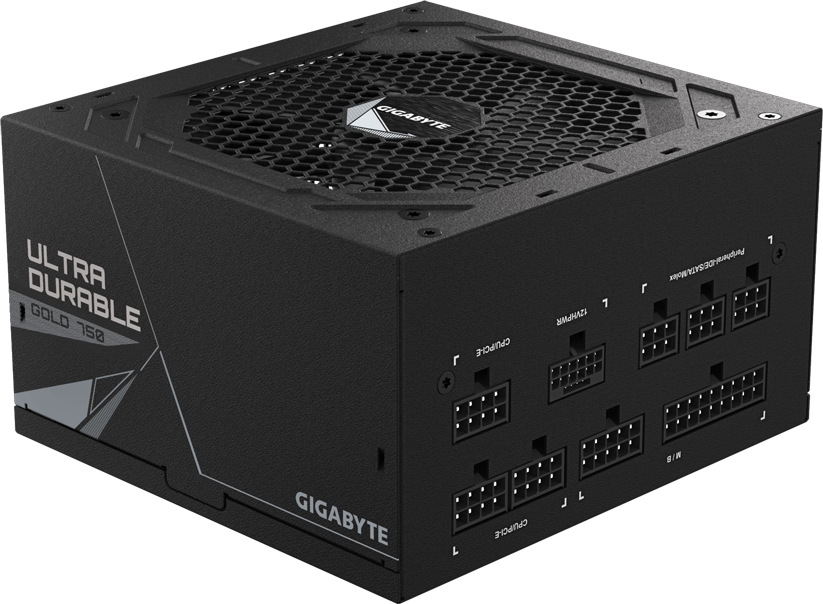

| Modularity | Fully modular |
| Power | 750W |
| Efficiency rating | 80 Plus Gold |
| Modular | Yes (fully modular) |
