Gigabyte PSU 650W GP-P650SS Silver
Product Warranty :
Five Year WarrantyBarcode :
4719331555689Gigabyte PSU 650W GP-P650SS Silver
Rated output: 650W. Efficiency certification: 80 Plus Silver. Fixed output cables. Cooling: 120mm Fluid Dynamic Bearing (FDB) fan. Protection: OVP/OPP/SCP/UVP/OCP/OTP.
Technical specifications
| Model | GP-P650SS |
|---|---|
| Type | Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1) |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 155-240 Vac |
| Input Current | 6.3A |
| Input Frequency | 50-60 Hz |
| Output Capacity | 650W |
| Dimensions | 150 x 140 x 86 mm |

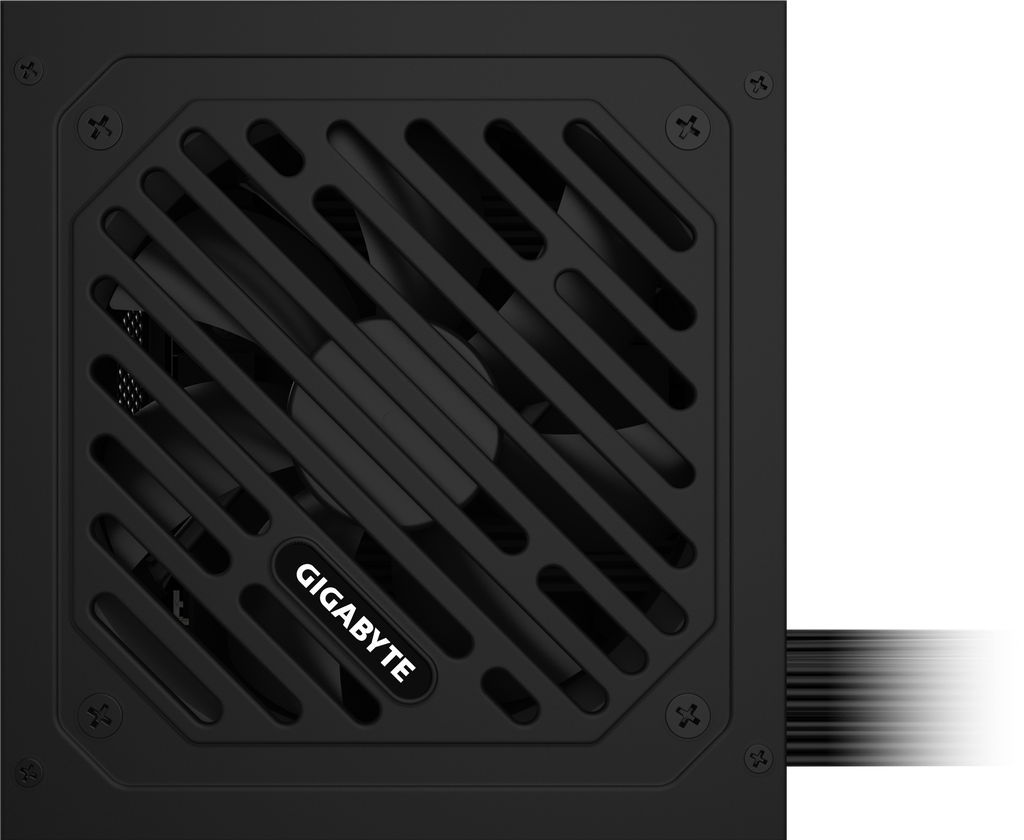

| Fan Type | 120mm Fluid Dynamic Bearing (FDB) fan |
| 80 PLUS | Silver |
| Efficiency | 90% at typical load (230V EU) |
| MTBF | >100,000 hours |
| Protections | OVP/OPP/SCP/UVP/OCP/OTP |
| Power Good Signal | 100-150ms |
| Hold Up Time | >16ms |
| Cable Type | Flat, All black |
| Connectors | ATX/MB 20+4 Pin x 1 : 600mm*1 CPU/EPS 4+4 Pin x 2 : 650mm+120mm*1 PCI-e 6+2 Pin x 2 : 600mm*2 SATA x 3 + 4 Pin Peripheral x 1 : 500mm+120mm+120mm+120mm*1 SATA x 2 + 4 Pin Peripheral x 2 : 500mm+120mm+120mm+120mm*1 |
| Modularity | Non-modular |
| Power | 650W |
| Modular | No |
| Efficiency rating | 80 Plus Silver |
