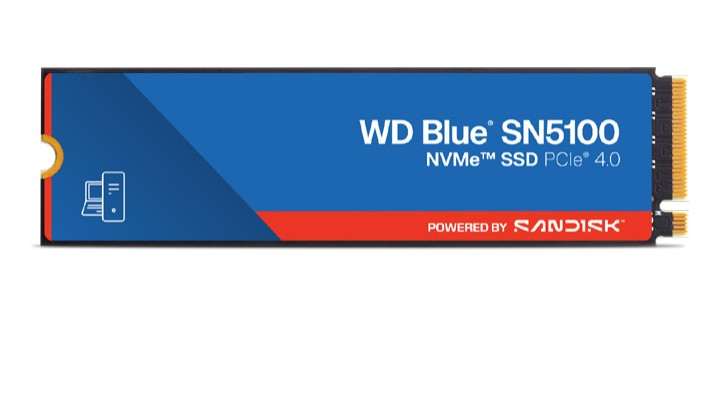

WD SN5100 500GB NVMe Blue PCIe Gen4 SSD
Part# / SKU :
WDS500G5B0E-00CPE0Barcode :
718037906287WD SN5100 500GB NVMe Blue PCIe Gen4 SSD
Capacity: 500GB. Form Factor: M.2 2280. Interface: PCIe Gen4 x4, NVMe.
Technical specifications
| Capacity | 500GB |
|---|---|
| Form factor | M.2 2280 |
| Interface | PCIe Gen4 x4, NVMe |
| Operating temperature | 0°C to85°C; drive-reported temperature, not ambient |
| Storage temperature | -40°C to85°C; non-operational storage does not guarantee data retention |
| Operating vibration | 5gRMS;10-2000Hz;3axes |
| Non-operating vibration | 4.9gRMS;7-800Hz;3axes |
| Shock | 1500G;0.5ms half-sine |
| Performance conditions | Up-to internal-test results; host, workload and firmware can affect measured performance. |
| Endurance conditions | JEDEC client workload JESD219; capacity-specific TBW. |
| NAND | SANDISK QLC3D CBA NAND |
| Sequential read Q8/T1 (up to) | 6600MB/s |
| Sequential write Q8/T1 (up to) | 5600MB/s |
| Random4K read Q32/T16 (up to) | 660000IOPS |
| Random4K write Q32/T16 (up to) | 1000000IOPS |
| Endurance (TBW) | 300TB |
| Average power(read/write) | 3.8W /3.8W |
| Idle sleep power | 4mW |
| MTTF | 1.75 million hours |
| Security | TCG Pyrite2.01;ATA Security passthrough overNVMe |
| RoHS compliant | Yes |
| Dimensions | 80 x22 x2.38mm |
| Weight | 5.7g |
| SSD Capacity | 500GB |
| SSD Form Factor | M.2 2280 |
| SSD Interface | PCIe Gen4 x4, NVMe |
| SSD Brand | WD Western Digital |
| SSD Generation | PCIe Gen4 |
