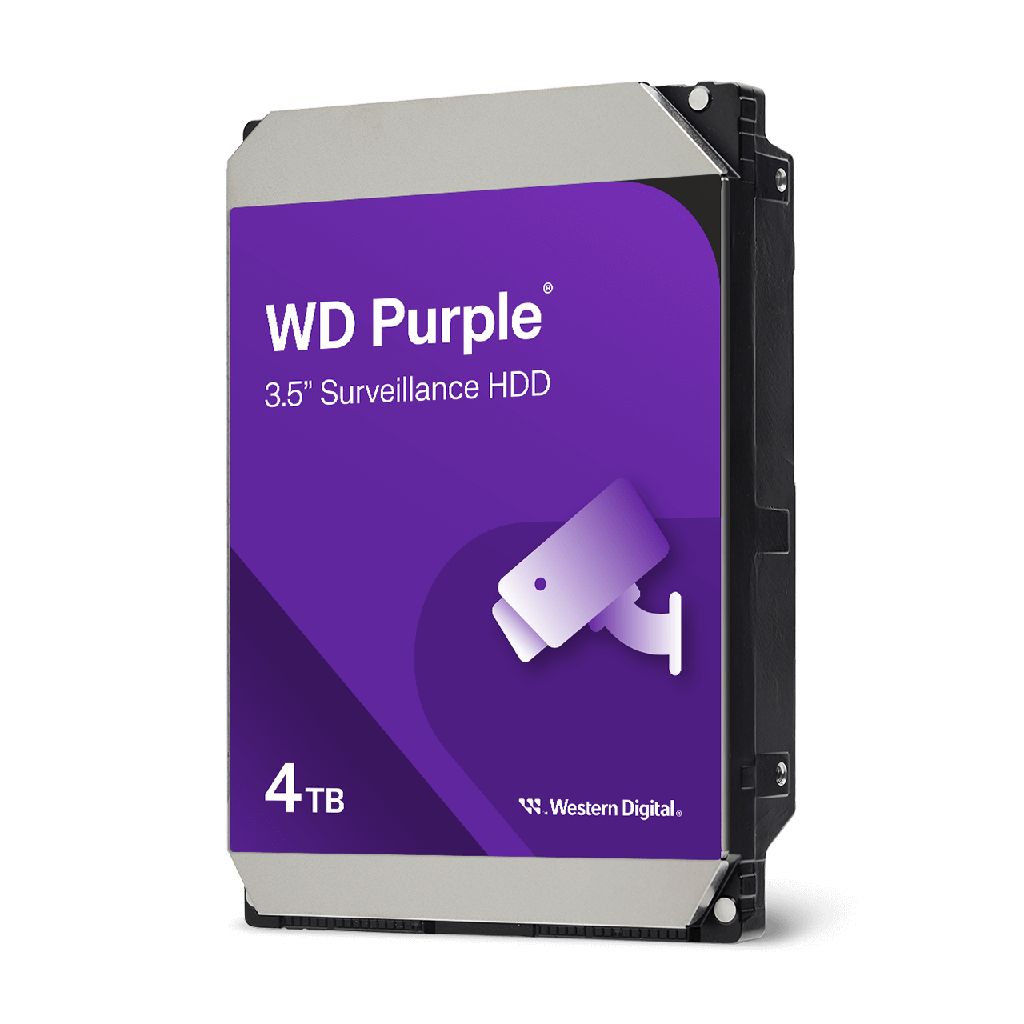

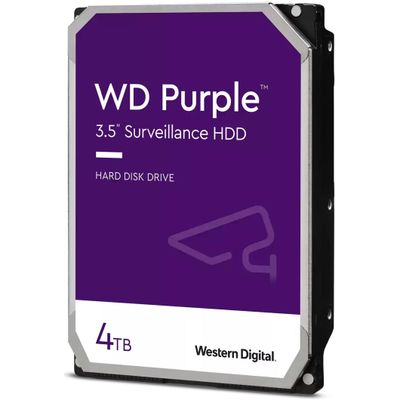

WD Purple 4TB AV SATA HDD WD43PURZ
Part# / SKU :
WD43PURZWD Purple 4TB AV SATA HDD WD43PURZ
Internal hard drive.
Technical specifications
| Model Number | WD43PURZ |
|---|---|
| Capacity | 4TB |
| Interface | SATA 6 Gb/s |
| Form factor | 3.5-inch |
| Advanced Format (AF) | Yes |
| Recording Technology | CMR |
| RoHS compliant | Yes |
| Maximum drive bays supported | 16 |
| Camera Support | Up to 64 HD |
| Firmware Feature Name | AllFrame |
| RV Sensors | Yes |
| Tarnish resistant components | Yes |
| Interface transfer rate (max) Buffer to host | 6 Gb/s |
| Cache (MB) | 256MB |
| Load/unload cycles | 3,00,000 |
| Annualized Workload rating (TB/year) | 180TB/year |
| Non-recoverable read errors per bits read | <1 in 10^14 |
| MTBF | 10,00,000 |
| Power consumption, read/write (W) | 4.7 W |
| Power consumption, idle (W) | 4.3 W |
| Power consumption, standby/sleep (W) | 0.3 W |
| Operating temperature (°C) | 0°C to 65°C |
| Non-operating temperature (°C) | -40°C to 70°C |
| Shock (Gs), Operating (2 ms, read/write) | 30Gs |
| Shock (Gs), Operating (2 ms, read) | 65Gs |
| Shock (Gs), Non-operating (2 ms) | 250Gs |
| Acoustics, idle (dBA) | 23 |
| Acoustics, seek average (dBA) | 27 |
| Height (max) (in / mm) | 1.028 / 26.1 |
| Length (max) (in / mm) | 5.787 / 147 |
| Width (± .01 in.) (in / mm) | 4 / 101.6 |
| Weight (± 3% ) (lb / kg) | 1.26 / 0.57 |
| Drive capacity | 4TB |
| Drive form factor | 3.5-inch |
| Drive interface | SATA 6 Gb/s |
| Drive recording method | CMR |
| Drive speed | 5400 RPM |
| HDD Capacity | 4TB |
| HDD Form Factor | 3.5-inch |
| HDD Interface | SATA 6 Gb/s |
| HDD Speed | 5400 RPM |
| HDD Recording Method | CMR |
