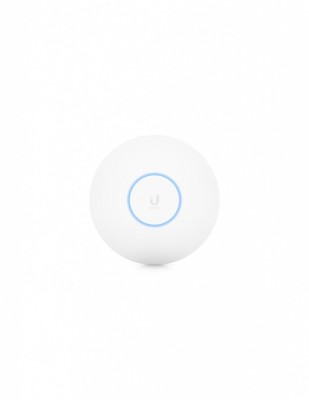

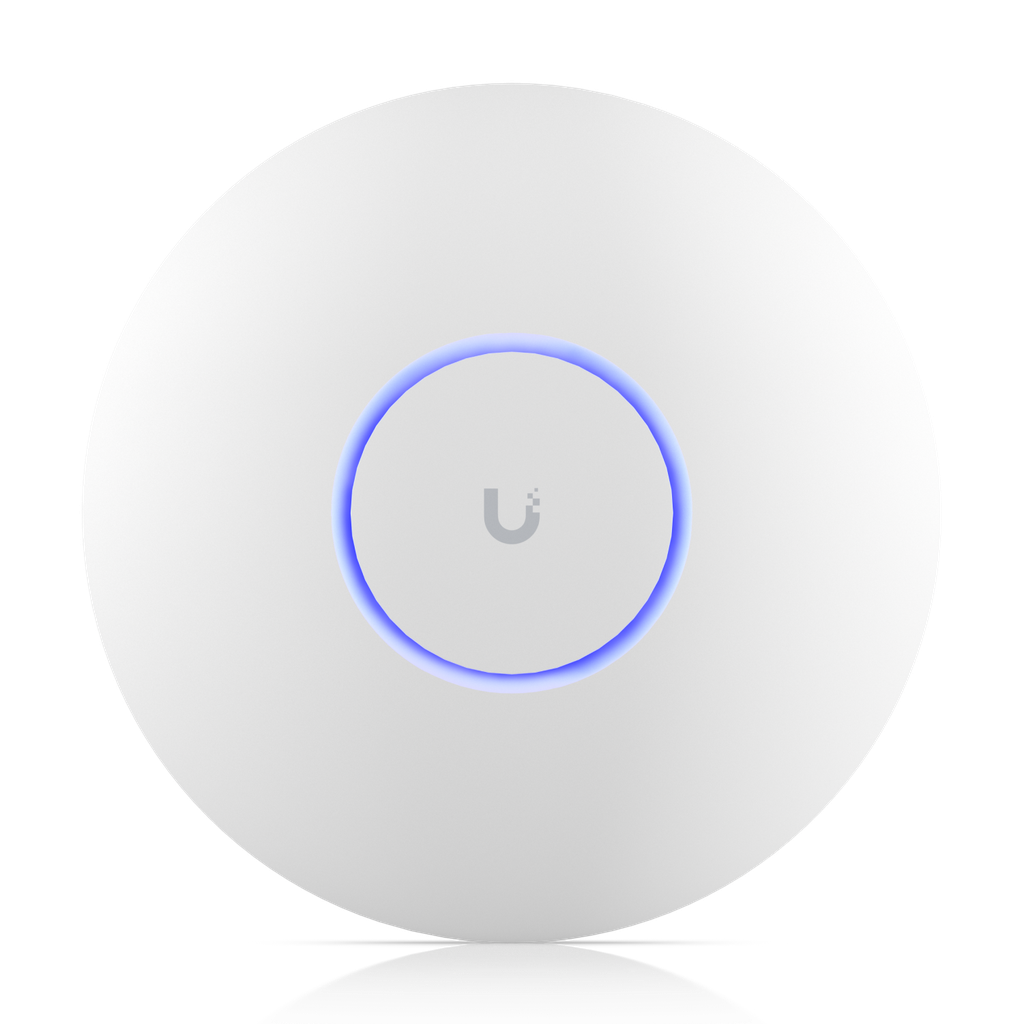

Ubiquiti U6-PRO Access Point
Part# / SKU :
U6-PROProduct Warranty :
Three Year WarrantyBarcode :
810010076830| Manufacturer model | U6-Pro |
|---|---|
| Product type | Wireless access point |
| Wi-Fi standard | WiFi 6 |
| Spatial streams | 6 |
| Max client count | 250+ |
| Dimensions | ⌀197 x 35 mm |
| Network interface | 1xGbERJ45 |
| MIMO5GHz | 4 x 4 (DL/UL MU-MIMO) |
| MIMO2.4GHz | 2 x 2 (UL MU-MIMO) |
| 5GHz maximum PHYrate | 4.8Gbps at160MHz |
| 2.4GHz maximum PHYrate | 573.5Mbps at40MHz |
| Antenna gain5GHz | 6 dBi |
| Antenna gain2.4GHz | 4 dBi |
| Max TX power 5 GHz | 26 dBm |
| Max TX power 2.4 GHz | 22 dBm |
| Max BSSIDs | 8 per Radio |
| Max power consumption | 13W |
| Input voltage | 44–57V DC |
| Power method | PoE |
| Device weight | 580g |
| Weight withmount | 720g |
| Enclosure | Polycarbonate |
| Mount material | Stainless steel (SUS304) |
| Mounting | Ceiling orwall |
| IP rating | IP54 |
| Operating temperature | -30–60°C |
| Operating humidity | 5–95%noncondensing |
| Software requirement | UniFiNetwork6.0.45orlater |
| Ethernet speed | 1Gbps |
| Ethernet ports | 1 |
| PoE Role | PoE input |
| Supported 802.11ax data rates | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| Supported 802.11ac data rates | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| Supported 802.11n data rates | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| Channel bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz) |
| Management interface | Ethernet Bluetooth |
| System LEDs | White/Blue |
| Wireless Meshing | Supported |
| Band Steering | Supported |
| 802.11v BSS Transition Management | Supported |
| 802.11r Fast Roaming | Supported |
| 802.11k Radio Resource Management (RRM) | Supported |
| Advanced Radio Management | Supported |
| Passpoint (Hotspot 2.0) | Supported |
| Captive hotspot portal: Custom Branding Landing Page | Supported |
| Captive hotspot portal: Voucher Authentication | Supported |
| Captive hotspot portal: Payment-Based Authentication | Supported |
| Captive hotspot portal: External Portal Server Support | Supported |
| Captive hotspot portal: Password Authentication | Supported |
| Guest Network Isolation | Supported |
| Private Pre-Shared Key (PPSK) | Supported |
| WiFi Speed Limiting | Supported |
| Client Device Isolation | Supported |
| WiFi Schedules | Supported |
| RADIUS over TLS (RadSec) | Supported |
| Dynamic RADIUS-assigned VLAN | Supported |
