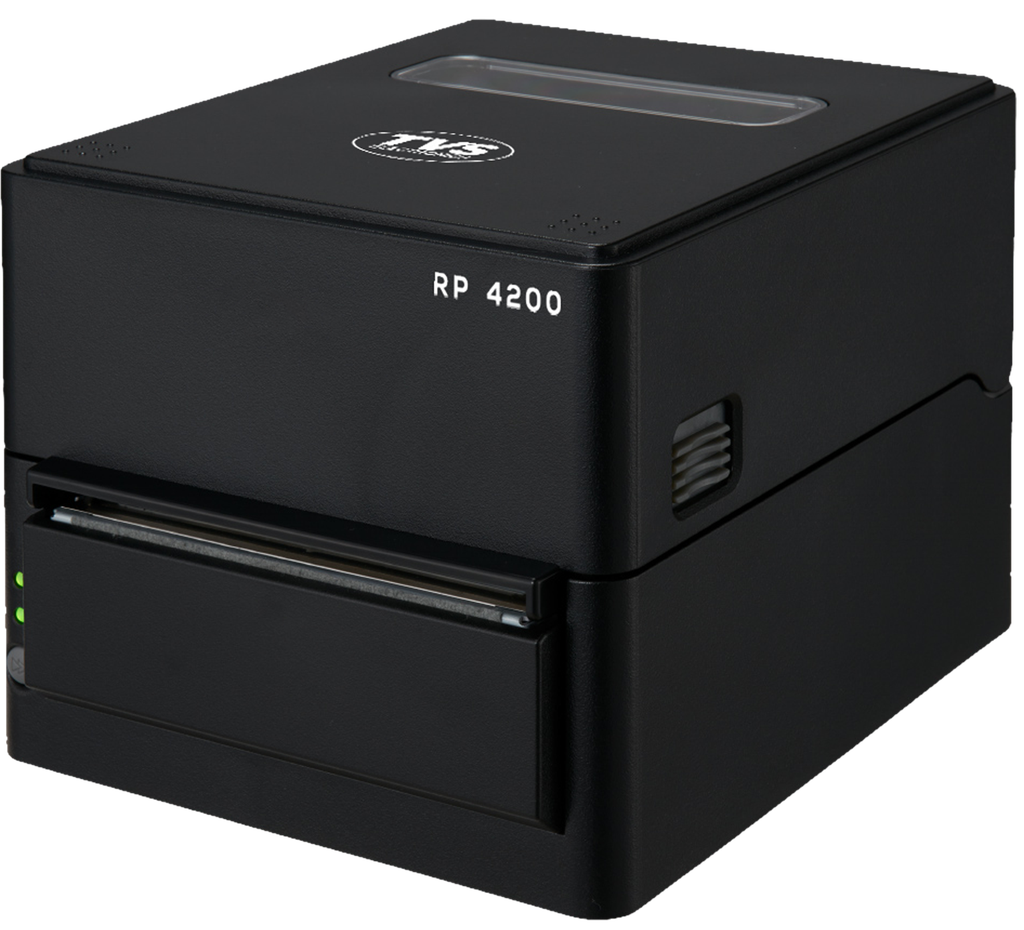

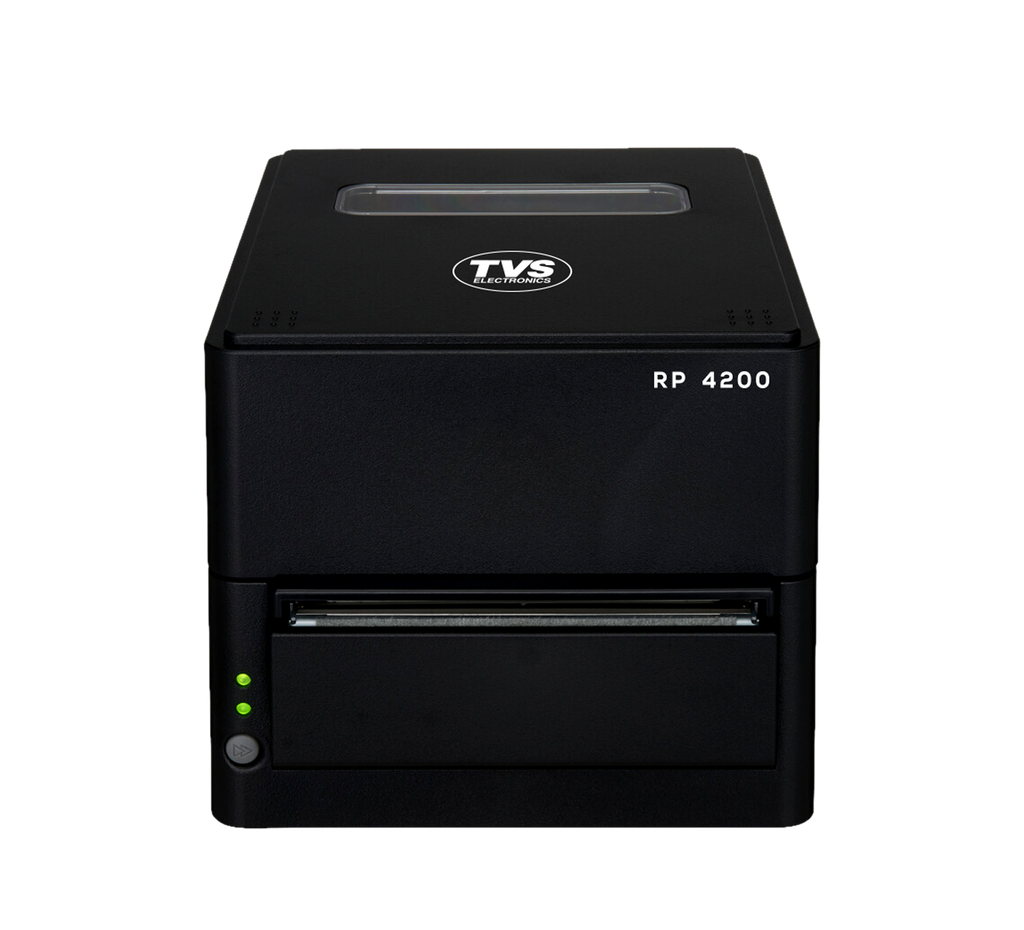

TVS Printer RP4200 Thermal 4inch
TVS Printer RP4200 Thermal 4inch. Manufacturer specifications for the exact model are listed below.
Sources: Manufacturer specifications
| Manufacturer model | RP 4200 |
|---|---|
| Product type | Receipt printer |
| Printing Method | Direct Thermal Line Printing |
| Max. Print Speed | 200mm/sec |
| Resolution | 203 dpi |
| Dot Pitch | 8 x 8 dots / mm |
| Character per line | Font A – 69 columns; Font B – 92, columns; Font C – 104 columns, [at 112 mm paper width] |
| Character set | Alpha numeric characters, International characters,PC437/850/852/857/858/860/863/864/865/866,WPC1252,Katakana,Thai code 11/18 (1 Pass/3 pass), TCWN-3,Kanji,kana,extended characters,JIS X0213,GB18030,BIG5,KS Hangul, EUC Hangul |
| Barcode fonts | UPC E/A, JAN (EAN)13 digits/8 digits,ITF, Code 39, Code 128, CODABAR(NW7), CODE 93, PDF 417, QR code,GS1 Databar |
| Paper width | 112 mm |
| Paper Thickness | Paper thickness : 68-85 µm |
| Paper roll diameter | 112 max |
| Printing width | 104 mm |
| Interface | USB, Serial |
| User memory | 384 KB(Capable of Storing user defined characters &logos |
| Bufferr size | 4 K bytes/ 45 bytes |
| Emulation | ESC/POS |
| Driver | Windows 7, Vista, 2K, XP, Linux, OPOS, VCOM |
| Cash drawer | 2 Drawers |
| Dimensions(W x D x H) mm | 170*151.3*216.2 mm (W*D*H) |
| Cutting method | Full / partial cut |
| Supply Voltage | AC 100 ~ 240V, 50 ~ 60Hz; DC 24V , 2.5 A |
| Operating Temperature | +5 to +40°C |
| Storage Temperature | -20 to +60°C |
| POS Printing Method | Direct thermal |
| POS Print Resolution | 203 dpi |
| POS Connection Mode | Wired |
| POS Product Type | Receipt printer |
