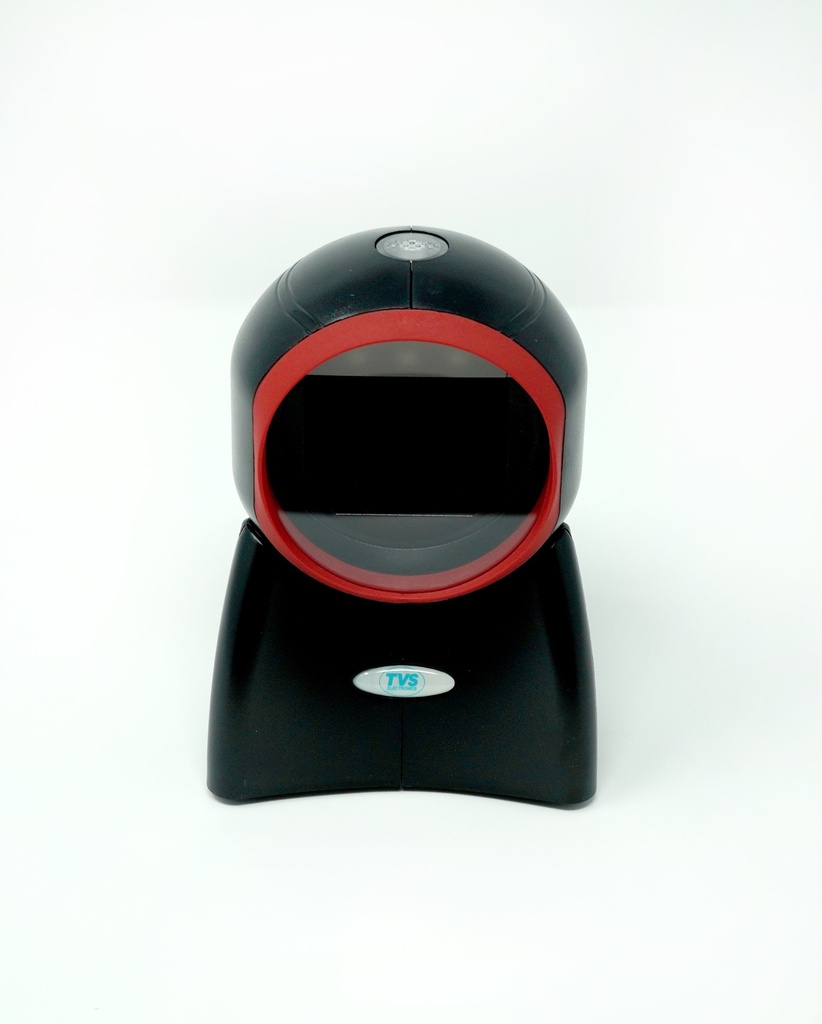

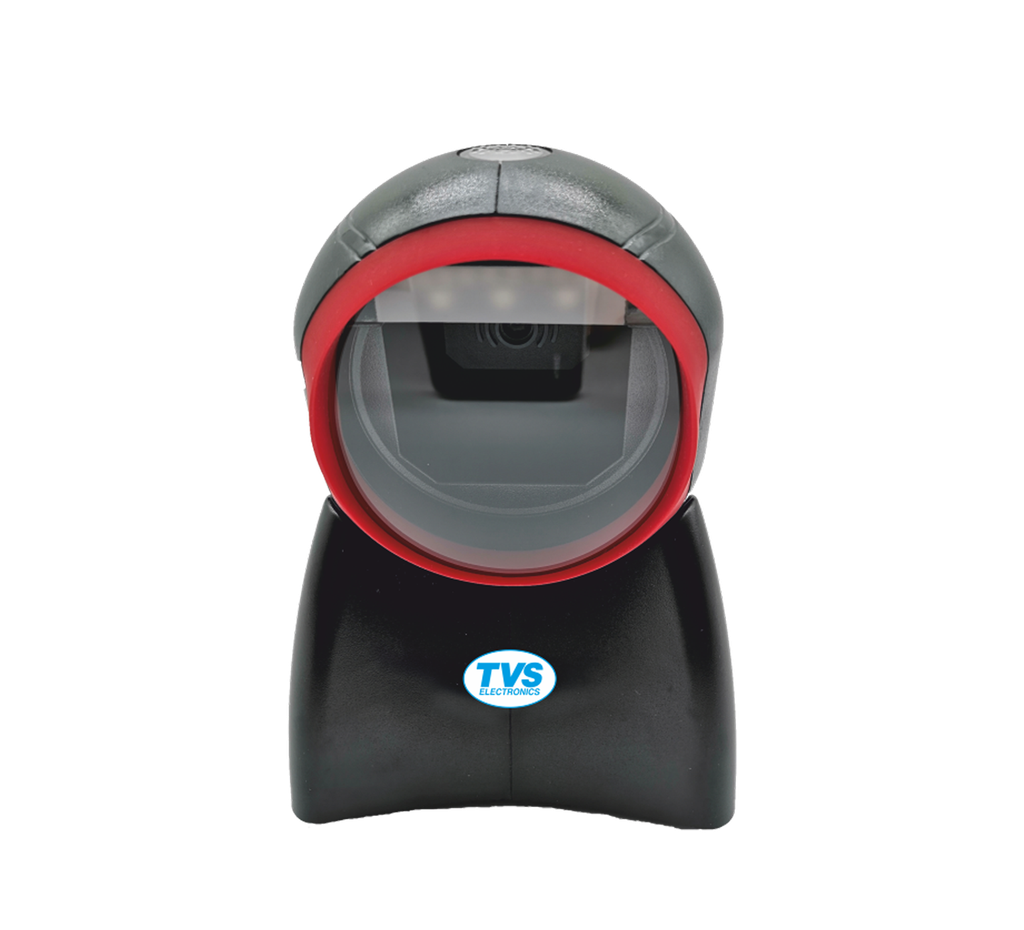

TVS Barcode Scanner BS-i302G
Hands-Free 1D 2D QR Barcode reading - Table Top
for Retail Application, Supermarkets, Production Line, Laboratories
for Retail Application, Supermarkets, Production Line, Laboratories
Product Warranty :
One YearTVS Barcode Scanner BS-i302G. Manufacturer specifications for the exact model are listed below.
Sources: Manufacturer specifications
| Manufacturer model | BS-i302G |
|---|---|
| Product type | Barcode scanner |
| Image Sensor | 752 × 480 CMOS |
| Supported Symbologies | 1D: EAN13, EAN8, UPCA, UPCE, ISSN, ISBN, Codabar, Code 128, Code 93, ITF6, ITF14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI Plessy, Plessy 2D: PDF417, QR Code, Data Matrix, Chinese Sensible Code |
| Resolution | 6.67 mil (PDF417), 5 mil (Code 39) |
| Scan Distance (Examples) | Code 39: 40 – 200 mm (20 mil) EAN13: 5 – 180 mm (13 mil) QR Code: 10 – 180 mm (20 mil) |
| Motion Tolerance | 2.5 m/s |
| Scan Angle | Pitch: ±60° @0° Roll and 0° Skew Roll: ±360° @0° Pitch and 0° Skew Skew: ±50° @0° Roll and 0° Pitch |
| Symbol Contrast | = 25% |
| Interface | USB |
| Dimensions (L × W × H) | 83 × 81 × 128 mm |
| Notification | Beep, LED Indicator |
| Operating Current | 150 mA |
| Standby Current | 120 mA |
| Storage Temperature | -40°C ~ 70°C |
| Humidity | 5% – 95% RH (non-condensing) |
| ESD Protection | ±14 kV air discharge, ±18 kV direct discharge |
| Drop Durability | 1.2 m drop to concrete (6 sides, one drop per side) |
| Sealing | IP50 |
| Accessories | USB Cable (connects scanner to host device) |
| POS Scanner Codes | 1D and 2D |
| POS Connection Mode | Wired |
| POS Product Type | Barcode scanner |
| Barcode Scanner Connectivity | Wired - USB |
| Barcode Type | 2D & 1D |
