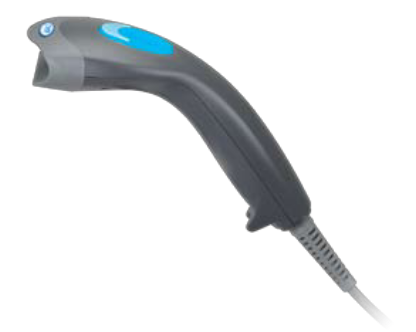

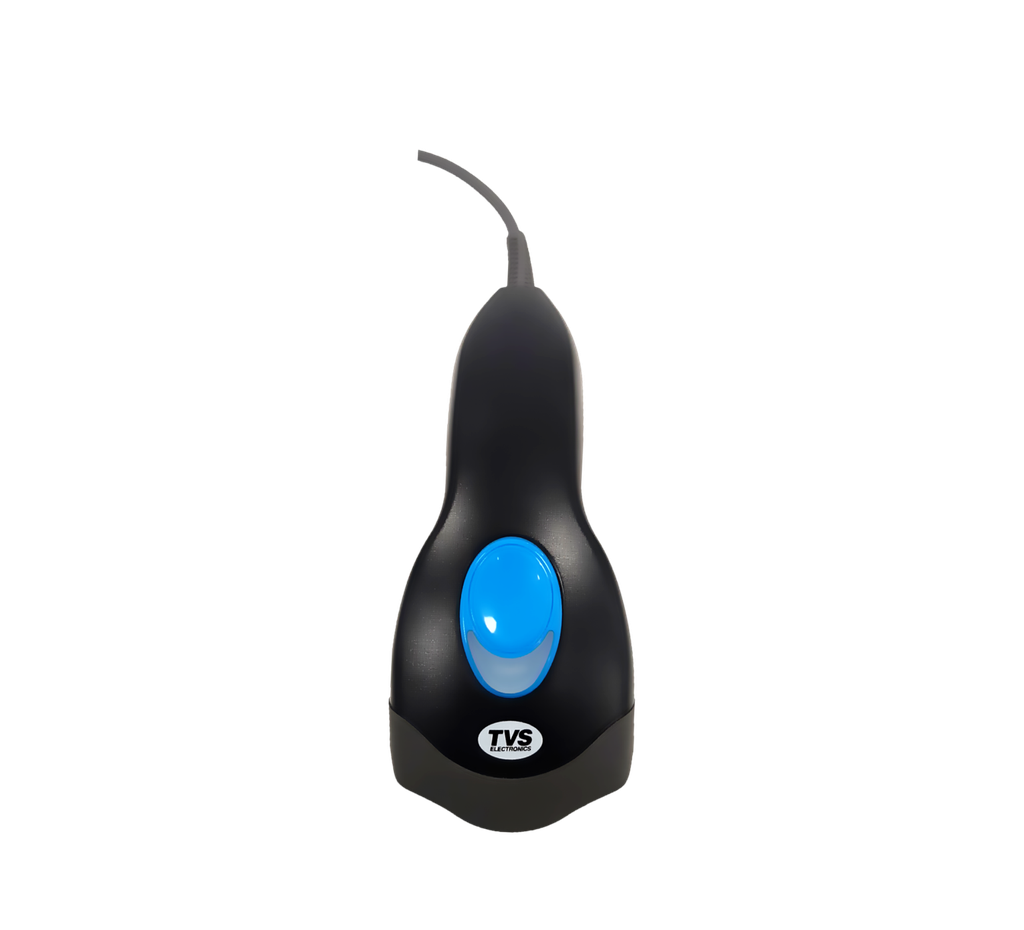

TVS Barcode Scanner BS-C101 Star
Product Warranty :
One Year WarrantyBarcode :
88H-0000UB-0TVTVS Barcode Scanner BS-C101 Star. Manufacturer specifications for the exact model are listed below.
Sources: Manufacturer specifications
| Manufacturer model | BS-C101 Star |
|---|---|
| Product type | Barcode scanner |
| Light Source | 650 nm visible laser diode (VLD) |
| MPU | 32 bit |
| Depth of Field | 35 - 200 mm (UPC/EAN 100%, PCS=90%) |
| Scan Rate | 330 scans per second |
| Scan Angle | 52° |
| Pitch / Roll / Skew angle | 65° / 30° / 65° |
| Minimum Bar Width | 4 mil @ PCS=90% Code 39 |
| Print Contrast | 30% @ UPC/EAN 100% |
| Indicators LED | Three colour LED (green, red & blue) |
| Beeper Option | Programmable tone & beep time |
| System Interfaces | Keyboard, RS232C, HID USB, wand |
| Physical Dimensions | L106.7 x D58.0 x H155.0 mm (device only) |
| Weight | 148 g (stand excluded) |
| Cable | Standard 2.0M straight |
| Input Voltage | 5 VDC ±10% |
| Power Consumption | 1.0 watts |
| Operating Current | 200 mA |
| Laser Class | CDRH Class IIa; IEC 60825-1: Class 1 |
| EMC | CE & FCC DOC compliance, VCCI, BSMI |
| Operating Temperature | 0°C – 40°C, 32°F – 104°F |
| Storage Temperature | -20°C – 60°C, -4°F – 140°F |
| Operating Humidity | 5% – 95% RH noncondensing |
| Light Levels | 4,500 Lux fluorescence |
| Drop Durability | Designed to withstand 1.0 M drops |
| Barcode | Most popular 1D barcodes, incl. GS1 DataBar & PDF 417 |
| POS Scanner Codes | 1D |
| POS Connection Mode | Wired |
| POS Product Type | Barcode scanner |
