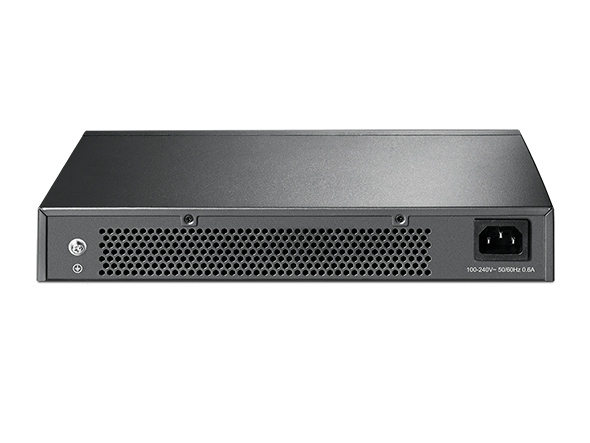

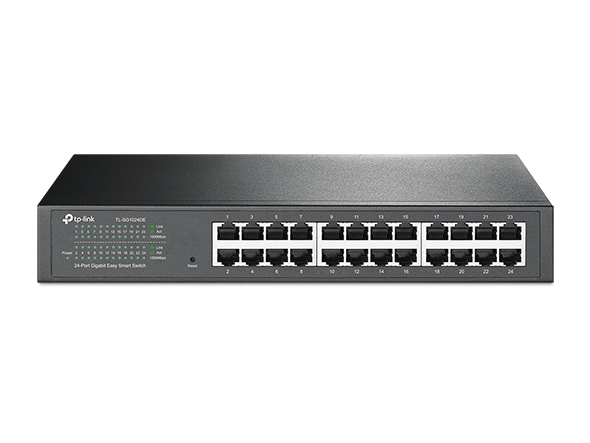

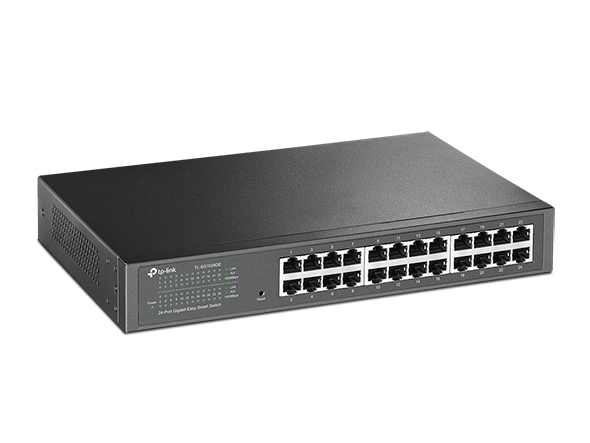

TP-Link TL-SG1024DE 24-Port Gigabit Easy Smart Switch
Product Warranty :
Three Year WarrantyBarcode :
6935364021245| Manufacturer model | TL-SG1024DE |
|---|---|
| Product type | Ethernet switch |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Interface | 24 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | No |
| Power Supply | 100-240VAC, 50/60Hz |
| Dimensions ( W x D x H ) | 11.6*7.1*1.7 in. (294*180*44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 14.19W (220V/50Hz) |
| Max Heat Dissipation | 48.39 BTU/h |
| Switching capacity | 48Gbps |
| Packet forwarding rate | 35.7Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1Mbit |
| Jumbo frame | 10KB |
| Quality of Service | Support Port-based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
| L2 Features | IGMP Snooping V1/V2/V3Static Link AggregationPort MirroringCable Diagnostics Loop Prevention |
| VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
| Transmission method | Store-And-Forward |
| Certification | FCC, CE, RoHS |
| System Requirements | Microsoft® Windows® for running Utility |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Ethernet speed | 1Gbps |
| Ethernet ports | 24 |
