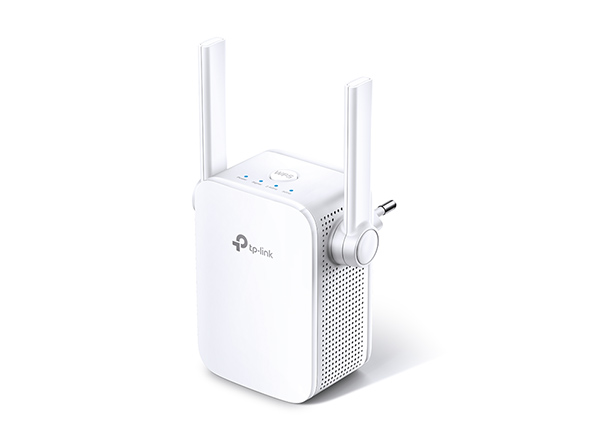

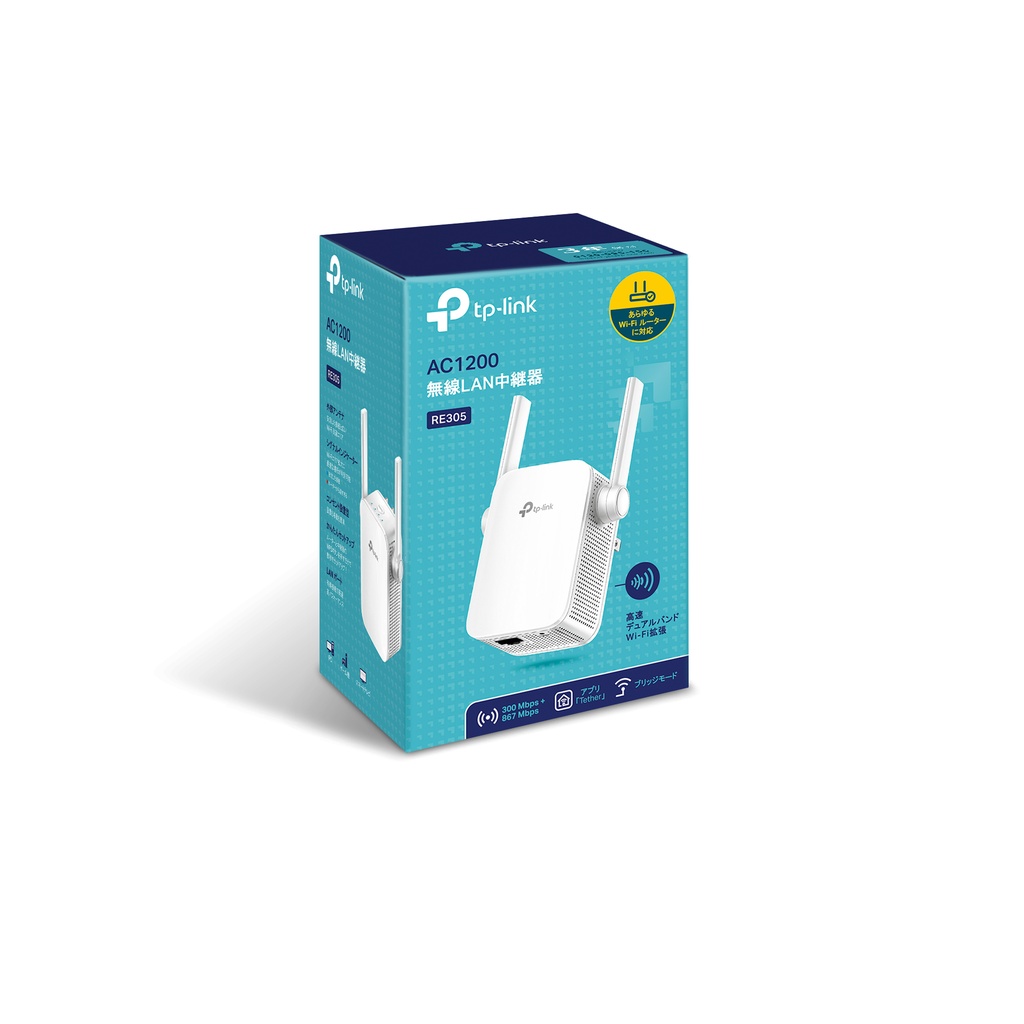

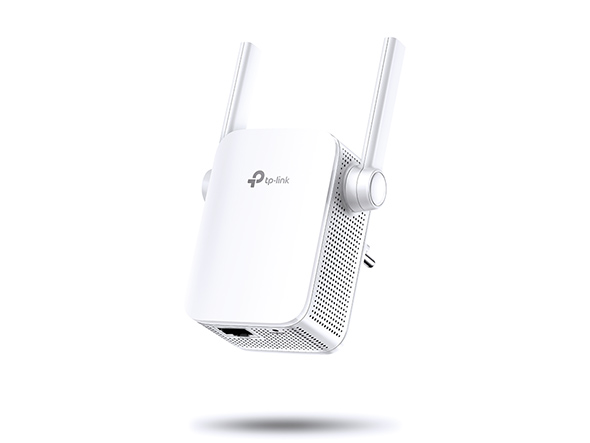

TP-Link RE305 AC1200 WiFi Range Extender
AC1200 Mesh Wi-Fi Range Extender
Part# / SKU :
RE305Product Warranty :
Three Year WarrantyBarcode :
6935364097974| Manufacturer model | RE305 |
|---|---|
| Product type | Wi-Fi range extender |
| Working Modes | Range Extender/Access Point |
| Standards and Protocols | IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11a, IEEE 802.11b |
| Plug Type | EU, UK, US |
| Interface | 1 x 10/100Mbps Ethernet Port (RJ45) |
| Button | WPS Button, Reset Button |
| Input Power | 100-240V~50/60Hz |
| Max. Power Consumption | 7.3W（max power consumption） |
| Dimensions ( W x D x H ) | 3.1 x 3.0 x 3.0 in. (80 x 78 x 77mm) |
| Antenna | 2 x external |
| Wireless Standards | IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Frequency | 2.4GHz & 5GHz(11ac) |
| Signal Rate | 5GHz:Up to 867Mbps2.4GHz:Up to 300Mpbs |
| Reception Sensitivity | 5GHz：11a 6Mbps:-91dBm@10% PER11a 54Mbps: -74dBm@10% PER11ac HT20 mcs8: -68dBm@10% PER 11ac HT40 mcs9: -63dBm@10% PER 11ac HT80 mcs9: -59dBm@10% PER 2.4GHz 11g 54M: -79dBm@10% PER 11n HT20 mcs7: -77dBm@10% PER 11n HT40 mcs7: -74dBm@10% PER |
| Wireless Modes | Range Extender/Access Point Wireless Statistic Concurrent Mode boost both 2.4G/5G Wi-Fi band |
| Wireless Functions | Wireless Statistic Concurrent Mode boost both 2.4G/5G Wi-Fi band Access Control LED Control Domain Login Function |
| Wireless security | 64/128-bit WEP WPA-PSK / WPA2-PSK |
| Transmission Power | <17dBm(2.4GHz) <17dBm(5GHz) |
| Mesh Technology | EasyMesh-Compatible |
| Network Services Enabled by Default | Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCP DHCP Server IP address assignment (DHCP) • Port: 67 Protocol: UDP App management Manage and configure device through app • Port: 20001 Protocol: TCP • Port: 20002 Protocol: UDP |
| Certification | CE, FCC, RoHS |
| Box Dimensions (W X D X H) | 6.15 x 4 x 3.7 in. (156.5 x 101.5 x 95mm) |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux. |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing |
| Ethernet speed | 100Mbps |
| Ethernet ports | 1 |
| Wi-Fi Standard | Wi-Fi 5 |
| WiFi Mode Primary | Range Extender For WiFi |
| WiFi Tech | AC-1200 |
