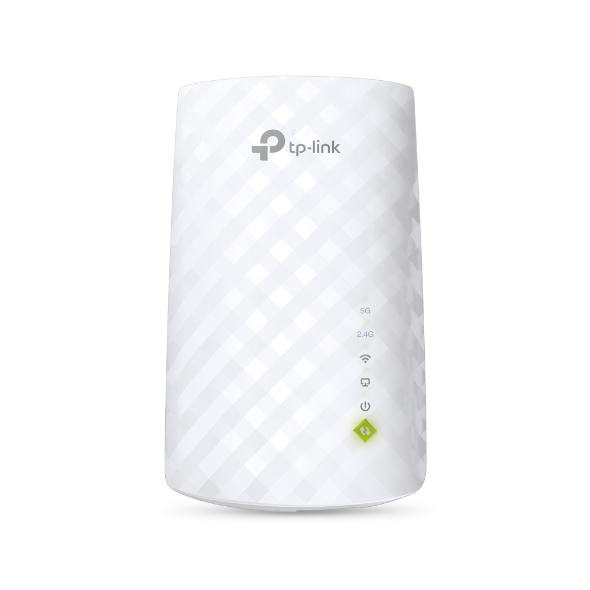

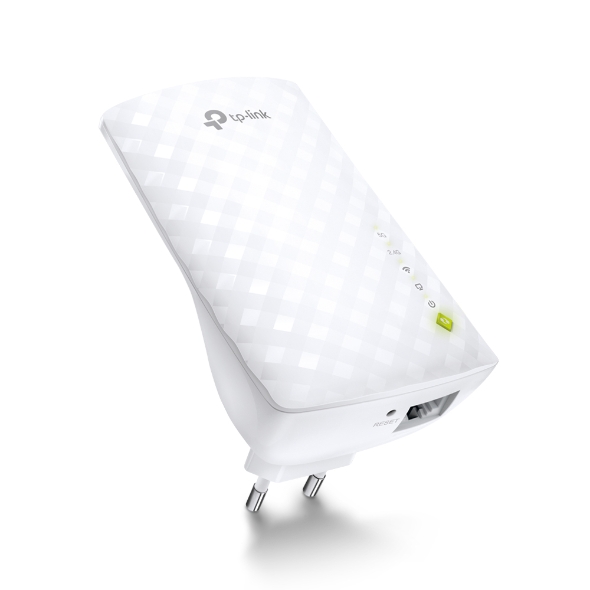

TP-Link RE200 AC750 Mesh Wi-Fi Range Extender
Part# / SKU :
RE200Product Warranty :
3 Year Limited Warranty| Manufacturer model | RE200 |
|---|---|
| Product type | Wi-Fi range extender |
| Plug Type | EU, UK, US, AU |
| Interface | 1× 10/100Mbps Ethernet Port (RJ45) |
| Button | • WPS Button • Reset Button |
| Input Power | 100-240V~50/60Hz |
| Max. Power Consumption | About 6.5W |
| Dimensions ( W x D x H ) | 4.3 × 2.6 × 3.0 in (110.0 × 65.8 × 75.2 mm) |
| Antenna | 3 Internal Antennas |
| Wireless Standards | • IEEE 802.11a/n/ac 5GHz • IEEE 802.11b/g/n 2.4GHz |
| Frequency | 2.4GHz & 5GHz |
| Signal Rate | • 300Mbps at 2.4GHz • 433Mbps at 5GHz |
| Working Modes | Range Extender/Access Point |
| Reception Sensitivity | 5 GHz: 390M: -60dBm 29.3M: -83dBm 180M: -64dBm 13.5M: -87dBm 78M: -68dBm 6.5M: -90dBm 54M: -75dBm 6M：-90dBm 2.4 GHz: 270M: -70dBm 130M: -70dBm 108M: -73dBm 54M: -75dBm 11M: -86dBm 6M: -92dBm 1M: -94dBm |
| Wireless Functions | • Enable/Disable Wireless Radio • DFS (the latest firmware and hardware version is required) • Access Control • LED Control • Power Schedule • Wi-Fi Coverage |
| Wireless security | • 64/128/152-bit WEP • WPA-PSK / WPA2-PSK • WPA3 |
| Transmission Power | < 20 dBm (EIRP) |
| Mesh Technology | EasyMesh |
| Network Services Enabled by Default | Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCP DHCP Server IP address assignment (DHCP) • Port: 67 Protocol: UDP App management Manage and configure device through app • Port: 20001 Protocol: TCP • Port: 20002 Protocol: UDP |
| Certification | CE, FCC |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux. |
| Environment | • Operating Temperature: 0°C~40°C (32°F~104°F)• Storage Temperature: -40°C~70°C (-40°F~158°F)• Operating Humidity: 10%~90% non-condensing• Storage Humidity: 5%~90% non-condensing |
| Ethernet speed | 100Mbps |
| Ethernet ports | 1 |
| Wi-Fi Standard | Wi-Fi 5 |
