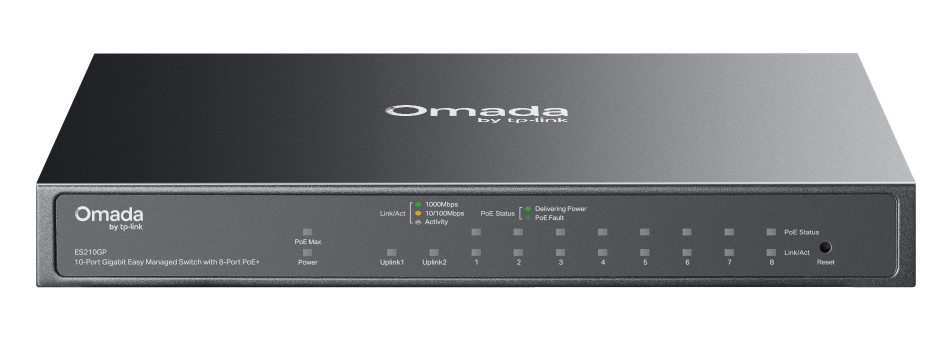

TP-Link ES210GP Easy Switch Manageable Omada 10 Ports Gigabit with 8 PoE+ Ports
Part# / SKU :
ES210GPBarcode :
1210002609722| Manufacturer model | ES210GP |
|---|---|
| Product type | Ethernet switch |
| Interface | • 8× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+) • 1× 10/100/1000 Mbps RJ45 Port • 1× Gigabit SFP/RJ45 Combo Port • Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity | Fanless |

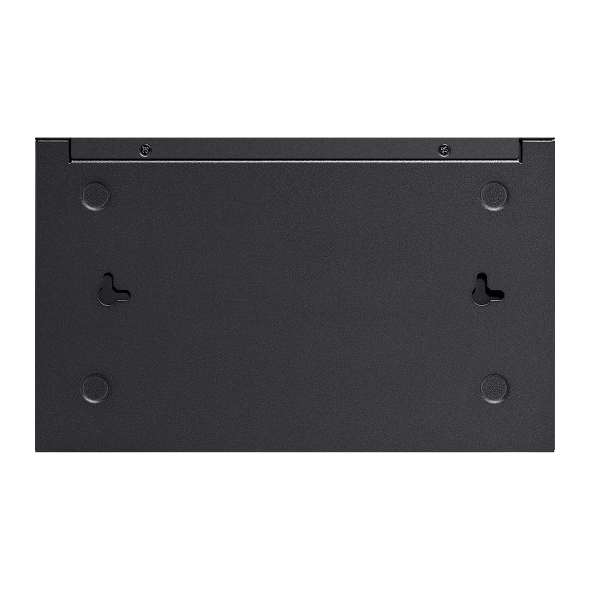

| Installation | • Desktop • Wall Mount |
| Physical Security Lock | √ |
| Power Supply | AC/DC Adapter (Input: 100-240V AC; Output: 53.5V DC/1.31A) |
| PoE Ports (RJ45) | • Standard: 802.3af PoE and 802.3at PoE+ compliant • PoE Ports: 8 ports • PoE Budget: 63W available for all PoE+ ports, 30W max per port • Fast PoE & Perpetual PoE • Remote Camera Reboot † • Up to 820ft (250m) PoE transmission distance** |
| Dimensions ( W x D x H ) | 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) |
| Surge Protection | ±6kV |
| Packet Buffer Memory | 4 Mbit |
| Jumbo frame | 15 KB |
| Switching capacity | 20 Gbps |
| Packet forwarding rate | 14.88 Mpps |
| MAC Address Table | 8K |
| Quality of Service | • Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control △ |
| L2 Features | • Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP |
| L2 Multicast | • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave |
| VLAN | • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID |
| Transmission method | Store-And-Forward |
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery † • Batch Configuration † • Batch Firmware Upgrading † • Unified Configuration † |
| Certification | FCC, CE |
| Environment | • Operating Temperature: 0℃~40℃ (32℉~104℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
| Ethernet speed | 1Gbps |
| PoE Role | PoE output |
| Ethernet ports | 10 |
