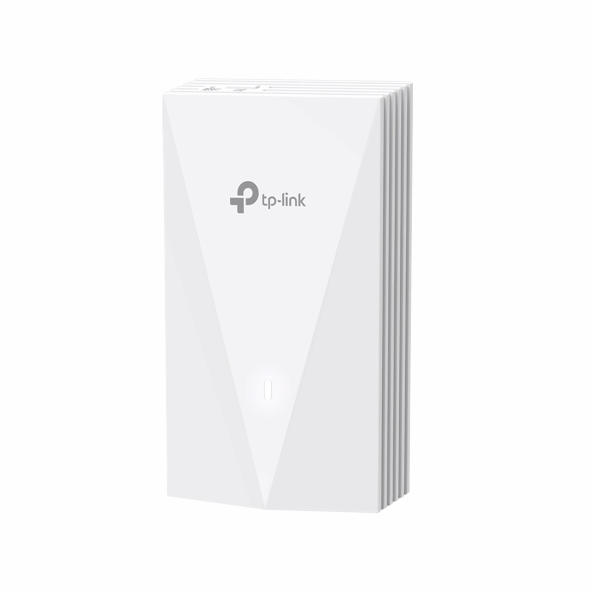

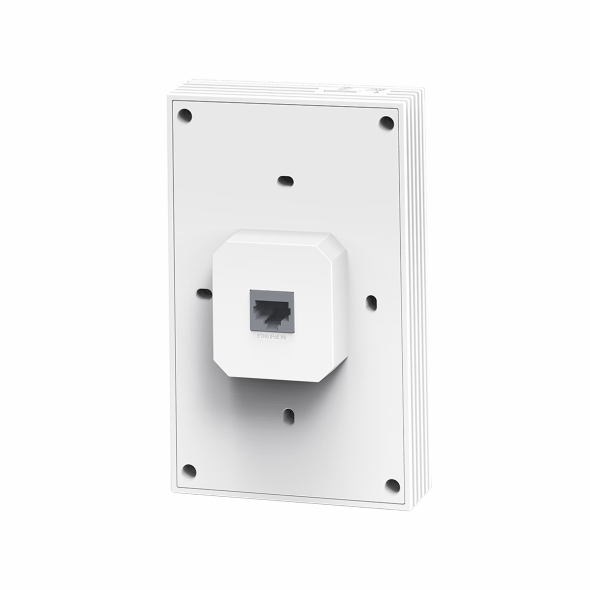

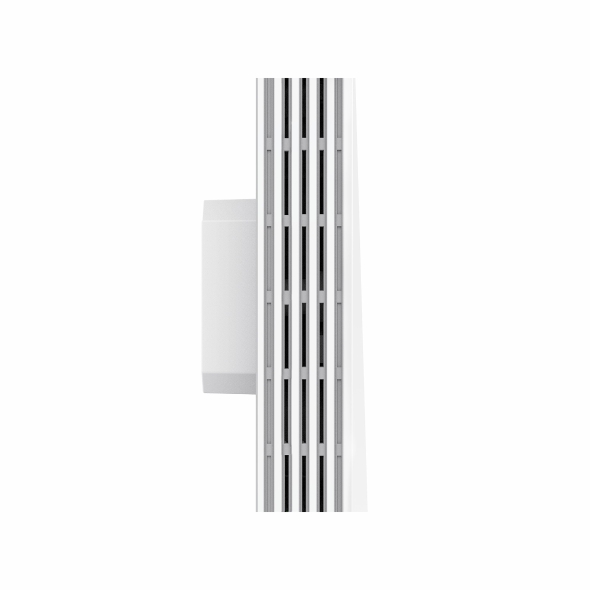

TP-Link EAP655 Wall AP
Part# / SKU :
EAP655-WALLBarcode :
4897098683576| Manufacturer model | EAP655 Wall |
|---|---|
| Product type | Wireless access point |
| Interface | • Uplink: 1× Gigabit Ethernet Port • Downlink: 3× Gigabit Ethernet Ports (One port supports PoE out. The PoE out feature requires 802.3at PoE+ input. The maximum power output for POE pass-through is 10.5 W (EU version) or 10 W (US version), based on laboratory testing.) |
| Physical Security Lock | No |
| Button | Reset, LED |
| Power Supply | 802.3af/at PoE |
| Max. Power Consumption | • EU: 12W (802.3at PoE, PoE Out off) • US: 12.6W (802.3at PoE, PoE Out off) |
| Dimensions ( W x D x H ) | 143 × 86 × 42.6 mm (5.6 × 3.4 × 1.7 in) |
| Antenna | 2 Dual-Band Antennas • 2.4 GHz: 2× 3 dBi • 5 GHz: 2× 5 dBi |
| Mounting | Wall Mounting (Screws included) |
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Coverage | 50㎡(600 ft²) *** |
| Concurrent Clients | 120+ △ |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: Up to 2402 Mbps • 2.4 GHz: Up to 574 Mbps |
| Wireless Functions | • 16 SSIDs (Up to 8 SSIDs on each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Seamless Roaming(802.11k/v/r) § • Beamforming • Rate Limit • Load Balance • Airtime Fairness • Band Steering • Reboot Schedule • Wireless Schedule • RADIUS Accounting • MAC Authentication • Wireless Statistics • Static IP/Dynamic IP |
| Wireless security | • Captive Portal Authentication § • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | • CE: <20 dBm (2.4GHz, EIRP) <23 dBm (5GHz, band 1 & band 2, EIRP) <26 dBm (5GHz, band 3, EIRP) • FCC: < 21 dBm (2.4 GHz) < 21 dBm (5 GHz, band 1 & band 2 & band 3 & band 4) |
| Certification | FCC |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
| Ethernet speed | 1Gbps |
| PoE Role | PoE input |
| Wi-Fi Standard | Wi-Fi 6 |
| Ethernet ports | 4 |
