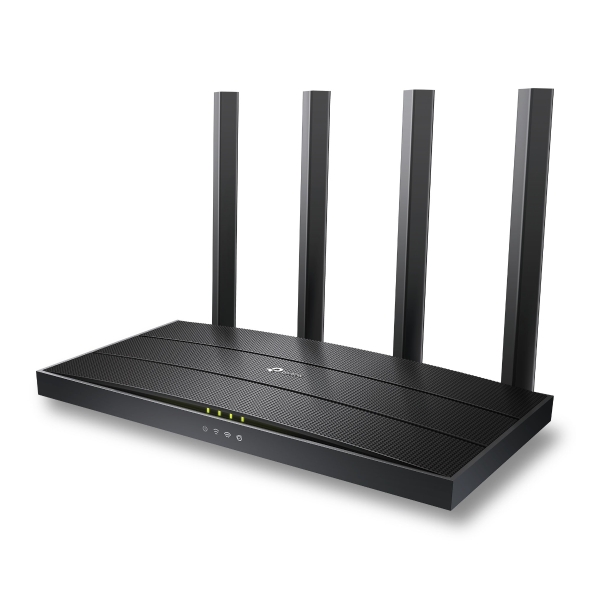

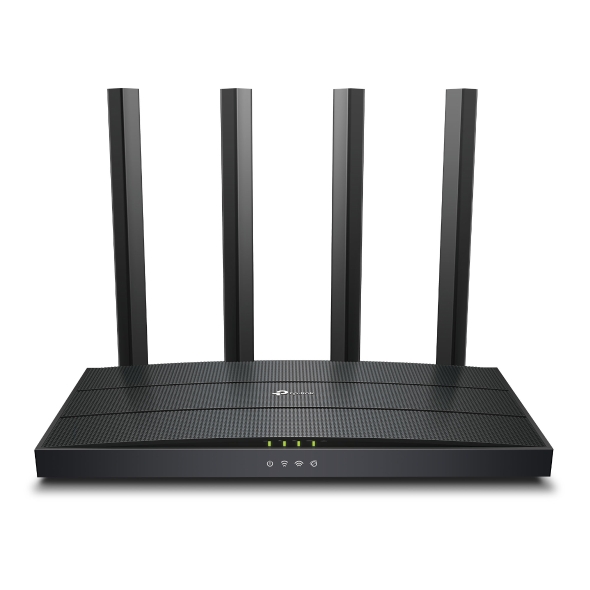

| Manufacturer model | Archer AX12 |
|---|
| Product type | Router |
|---|
| Standards and Protocols | Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
|---|
| WiFi Speeds | AX1500 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 300 Mbps (802.11n) |
|---|
| WiFi Range | 2-3 Bedroom Houses 4× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range |
|---|
| WiFi Capacity | High Dual-Band Allocate devices to different bands for optimal performance Airtime Fairness Improves network efficiency by limiting excessive occupation 4 Streams Connect your devices to more bandwidth |
|---|
| Working Modes | Router ModeAccess Point Mode |
|---|
| Network Security | SPI FirewallAccess ControlIP & MAC BindingApplication Layer Gateway |
|---|
| Guest Network | 1× 5 GHz Guest Network1× 2.4 GHz Guest Network |
|---|
| VPN Server | OpenVPNPPTP |
|---|
| WiFi Encryption | WPA2-PSK WPA2-PSK/WPA-PSK WPA3-Personal WPA3-Personal/WPA2-PSK WPA2-Enterprise WPA/WPA2-Enterprise encryptions |
|---|

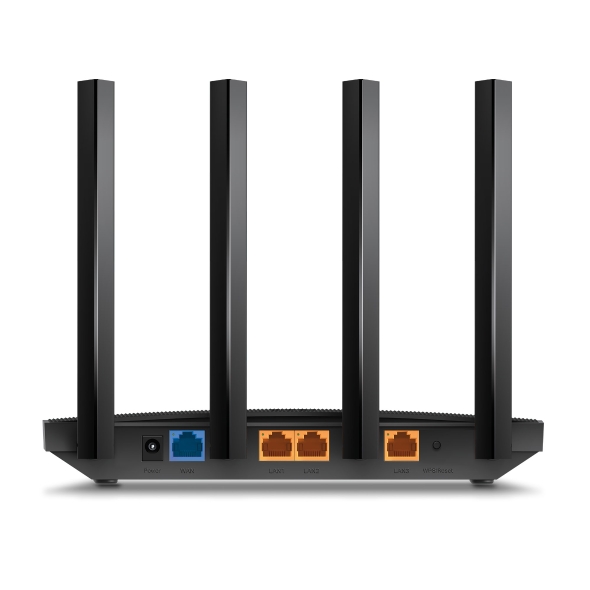

| Ethernet Ports | 1× Gigabit WAN Port 3× Gigabit LAN Ports |
|---|
| Power | 12 V ⎓ 1 A |
|---|
| Buttons | WPS/Reset Button |
|---|
| Protocols | IPv4 IPv6 |
|---|
| EasyMesh | Compatible with EasyMesh |
|---|
| Parental Controls | URL Filtering Time Controls |
|---|
| WAN Types | Dynamic IP Static IP PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
|---|
| Quality of Service | QoS by Device |
|---|
| Cloud Service | Auto Firmware Upgrade OTA Firmware Upgrade TP-Link ID DDNS |
|---|
| NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP |
|---|
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
|---|
| DHCP | Address Reservation DHCP Client List Server |
|---|
| DDNS | TP-Link NO-IP DynDNS |
|---|
| Management Features | Tether App Webpage Check Web Emulator> |
|---|
| Network Services Enabled by Default | Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCP DNS DNS • Port: 53 Protocol: TCP & UDP DHCP Server IP address assignment (DHCP) • Port: 67 Protocol: UDP App management Manage and configure device through app • Port: 20001 Protocol: TCP • Port: 30001 Protocol: TCP • Port: 20002 Protocol: UDP |
|---|
| System Requirements | Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10/11, MACOS, NetWare, UNIX or LinuxInternet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or otherJava-enabled browserCable or DSL ModemSubscription with an internet service provider (for internet access) |
|---|
| Certifications | FCC, CE |
|---|
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉)Storage Temperature: -40℃~60℃ (-40℉ ~140℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing |
|---|
| WiFi Transmission Power | CE: <20dBm(2.4 GHz)<23dBm(5.15 GHz~5.25 GHz)FCC:<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz) |
|---|
| WiFi Reception Sensitivity | 5 GHz:11a 6Mbps:-95dBm, 11a 54Mbps:-79dBm11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-66dBm 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-63dBm 11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS9:-60dBm 11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-66dBm 11ax HE40_MCS0:-92dBm, 11ax HE40_MCS11:-65dBm 11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-62dBm 2.4 GHz: 11g 6Mbps: -96 54Mbps: -80 HT20-MCS0: -97 MCS7: -78 HT40-MCS0: -94 MCS7: -75 |
|---|
| Dimensions (W×D×H) | 8.5 × 4.6 ×1.3 in (215 × 117 × 32 mm) |
|---|
| Ethernet speed | 1Gbps |
|---|
| Wi-Fi Standard | Wi-Fi 6 |
|---|
