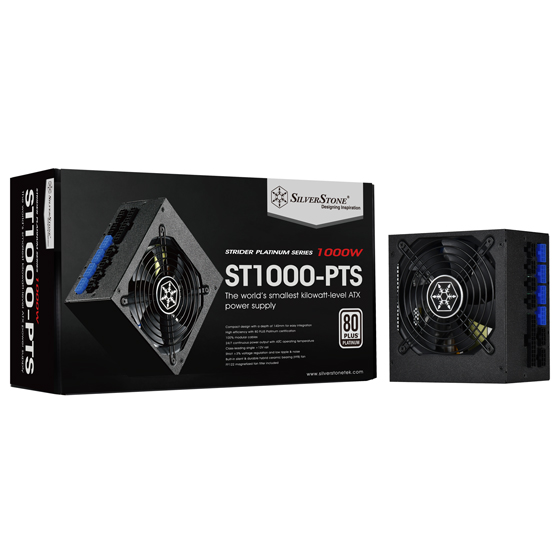

SilverStone PSU ST1000-PTS Platinum 1000W Fully Modular
Compact design with a depth of 140mm for easy integration
High efficiency with 80 PLUS Platinum certification
100% modular cables
Part# / SKU :
ST1000-PTSProduct Warranty :
3 Year Warranty From ManufacturerSilverStone 1000W 80 Plus Platinum Power Supply ST1000-PTS
Compact design with a depth of 140mm for easy integration
High efficiency with 80 PLUS Platinum certification
100% modular cables
24/7 continuous power output with 40℃ operating temperature
Class-leading single +12V rail
Strict ±3% voltage regulation and low ripple & noise
Built-in silent & durable HYB fan
FF122 magnetized fan filter included
Japanese electrolytic capacitors
Specifications
| Model No. | SST-ST1000-PTS |
| Max. DC Output | 1000W |
| Power density | 554W per liter |
| Color | Black（Lead-Free Paint） |
| Combined +3.3V & +5V | 120W |
| Combined +12V | 996W |
| Input Voltage | 90V~264V |
| Input Frequency Range | 47Hz~63Hz |
| PFC | Active PFC（PF>0.9 at full load） |
| Efficiency | 89%~92% at 20%~100% loading |
| MTBF | 100,000 hours |
| Operating temperature | 0°C ~ 40°C |
| Protection | Over power protection |
| Over current protection | |
| Over voltage protection | |
| Over Temperature protection | |
| Under voltage protection | |
| Short circuit protection | |
| Connectors | 1 x 24 / 20-Pin motherboard connector（”600mm”） |
| 1 x 8 / 4-Pin EPS / ATX 12V connector（”550mm”） | |
| 1 x 8 / 4-Pin EPS / ATX 12V connector（”750mm”） | |
| 8 x 8 / 6-Pin PCIE connector（”550mm/150mm” X4） | |
| 8 x SATA connector（”600mm /150mm / 150mm / 150mm” X2） | |
| 6 x 4-Pin Peripheral connector（”600mm / 150mm / 150mm” X2） | |
| 2 x 4-Pin Floppy connector（”150mm” X2） | |
| Cooling System | Single 120mm HYB fan |
| Form factor | ATX |
| Noise Level | 18 dBA minimum |
| Dimension | 150 mm (W) x 86 mm (H) x 140 mm (D) |
| 5.91″ (W) x 3.39″ (H) x 5.51″ (D) | |
| Weight | 1.98kg |
| Certification | 80 PLUS Platinum |
| Warranty | 3 Years |
| Model No. | SST-ST1000-PTS |
|---|---|
| Max. DC Output | 1000W |
| Power density | 554W per liter |
| Color | Black（Lead-Free Paint） |
| Combined +3.3V & +5V | 120W |
| Combined +12V | 996W |
| Input Voltage | 90V~264V |
| Input Frequency Range | 47Hz~63Hz |
| PFC | Active PFC（PF>0.9 at full load） |
| Efficiency | 89%~92% at 20%~100% loading |
| MTBF | 100,000 hours |
| Operating temperature | 0°C ~ 40°C |
| Protection | Over power protection |
| Connectors | 1 x 24 / 20-Pin motherboard connector（”600mm”） |
| Cooling System | Single 120mm HYB fan |
| Form factor | ATX |
| Noise Level | 18 dBA minimum |
| Dimension | 150 mm (W) x 86 mm (H) x 140 mm (D) |
| Weight | 1.98kg |
| Certification | 80 PLUS Platinum |
| Warranty | 3 Years |
| Efficiency rating | 80 Plus Platinum |
| Power range | 750W -1000W |
