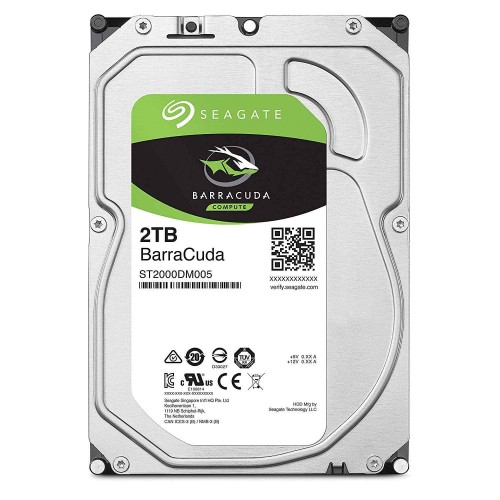

Seagate SATA HDD Baracuda 2TB ST2000DM005
Part# / SKU :
ST2000DM005Product Warranty :
Two Year Limited WarrantySeagate SATA HDD Baracuda 2TB ST2000DM005 5400RPM
Internal hard drive.
Technical specifications
| Standard Model Number | ST2000DM005 |
|---|---|
| Bytes per Sector | 512e |
| Interface | SATA 6Gb/s |
| SATA Transfer Rates Supported (Gb/s) | 6.0/3.0/1.5 |
| Max Sustained Data Rate, OD Read (MB/s) | 190 |
| Cache, Multi-segmented (MB) | 256 MB |
| Rotational Speed (RPM) | 5400RPM |
| Recording Technology | SMR |
| Load/Unload Cycles | 600,000 |
| Power-On Hours (per year) | 2,400 |
| Workload Rate Limit (TB/Year) | 55 |
| Startup Power (A) | 2.0 A |
| Operating Mode, Typical (W) | 3.7 |
| Idling Average (W) | 2.5 W |
| Standby Mode/Sleep Mode, Typical (W) | 0.25/0.25 |
| Voltage Tolerance, Inc. Noise (5 V) | ±5% |
| Voltage Tolerance, Inc. Noise (12 V) | ±10% |
| Operating (ambient, min) | 0°C |
| Operating (drive case, max) | 60°C |
| Non-operating (ambient) | -40°C – 70°C |
| Halogen-free | Yes |
| RoHS compliance | Yes |
| Height (mm/in, max) | 20.20 mm/0.795 in |
| Width (mm/in, max) | 101.85 mm/4.010 in |
| Depth (mm/in, max) | 146.99 mm/5.787 in |
| Weight (g/lb, typical) | 415 g/0.915 lb |
| Drive capacity | 2TB |
| Drive form factor | 3.5-inch |
| Drive interface | SATA 6 Gb/s |
| Drive recording method | SMR |
| Drive speed | 5400 RPM |
| HDD Capacity | 2TB |
| HDD Form Factor | 3.5-inch |
| HDD Interface | SATA 6 Gb/s |
| HDD Speed | 5400 RPM |
| HDD Recording Method | SMR |
