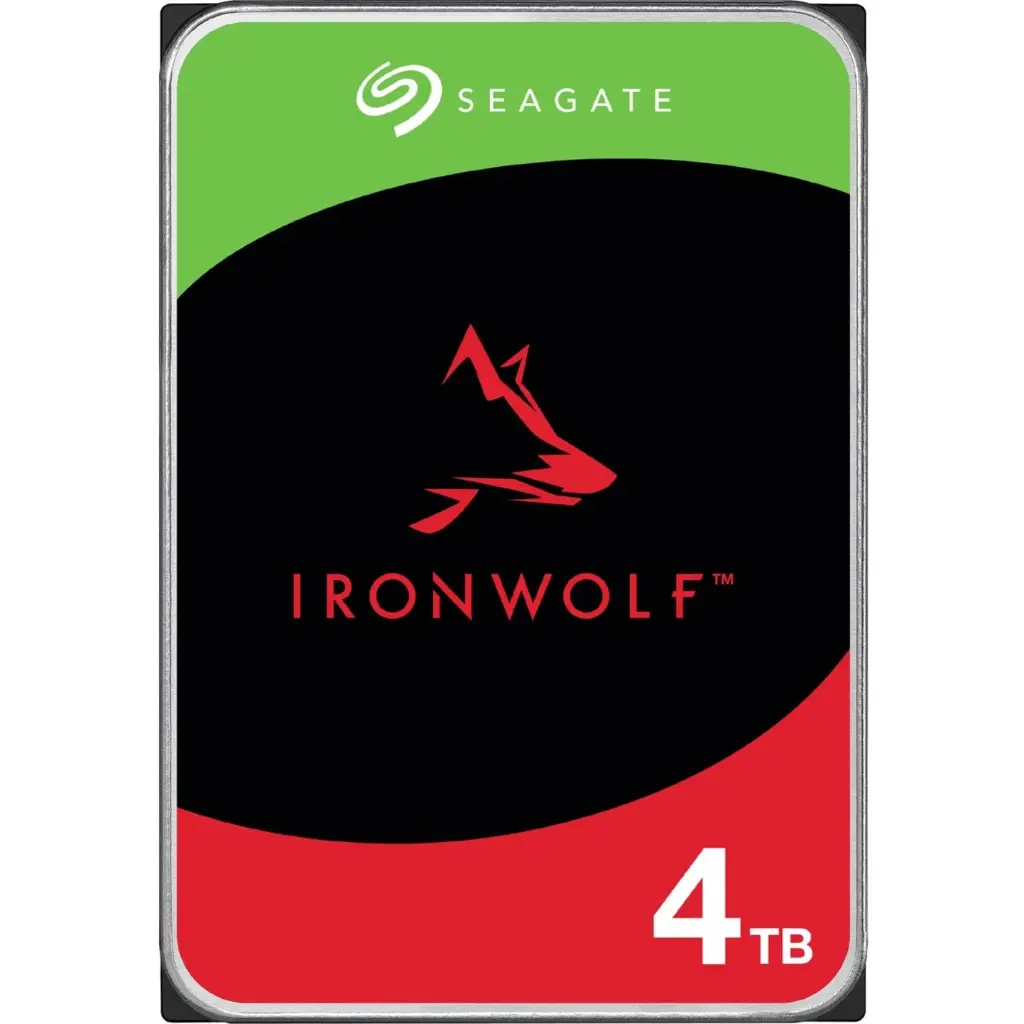

Seagate NAS 4TB IronWolf ST4000VN006
Part# / SKU :
ST4000VN006Product Warranty :
3 Year Limited WarrantySeagate NAS 4TB IronWolf ST4000VN006
Internal hard drive.
Technical specifications
| Capacity | 4 TB |
|---|---|
| Standard Model Number | ST4000VN006 |
| Interface | SATA 6Gb/s |
| Drive Bays Supported | 1 – 8 Bays |
| Recording Technology | CMR |
| Drive Design (Air or Helium) | Air |
| Workload Rate Limit (WRL) | 180 |
| Rotational Vibration (RV) Sensor | Yes |
| Dual-Plane Balance | Yes |
| Error Recovery Control | Yes |
| Max. Sustained Transfer Rate OD (MB/s) | 202MB/s |
| Spindle Speed (RPM) | 5,400 |
| Cache (MB) | 256 |
| Load/Unload Cycles | 600,000 |
| Non-recoverable Read Errors Rate, Max | 1 per 10E14 |
| Power-on Hours | 8,760 |
| Mean Time Between Failures (MTBF, hours) | 1,000,000 |
| Startup Current, Typical (12V, A) | 1.8 |
| Average Operating Power | 3.7 |
| Idle Power Average (W) | 3.2 W |
| Standby Mode/Sleep Mode, Typical (W) | 0.25/0.25 |
| Voltage Tolerance, Inc. Noise (5V / 12V) | ±5% / ±10% |
| Operating Temperature (ambient, min °C) | 0 |
| Operating Temperature (drive reported, max °C) | 65 |
| Nonoperating Temperature (ambient, min / max °C) | -40 / 70 |
| Shock, Operating/Non-operating: 2 ms (max) | 80 Gs/300 Gs |
| Acoustics, Idle (typical, measured in Idle 1 state) (dBA) | 23 |
| Acoustics, Seek (typical) (dBA) | 25 |
| Width (mm/in, max) | 101.85 mm/4.01 in |
| Depth (mm/in, max) | 146.99 mm/5.787 in |
| Weight (g/lb, typical) | 490 g/1.08 lb |
| Drive capacity | 4TB |
| Drive form factor | 3.5-inch |
| Drive interface | SATA 6 Gb/s |
| Drive recording method | CMR |
| Drive speed | 5400 RPM |
| HDD Capacity | 4TB |
| HDD Form Factor | 3.5-inch |
| HDD Interface | SATA 6 Gb/s |
| HDD Speed | 5400 RPM |
| HDD Recording Method | CMR |
