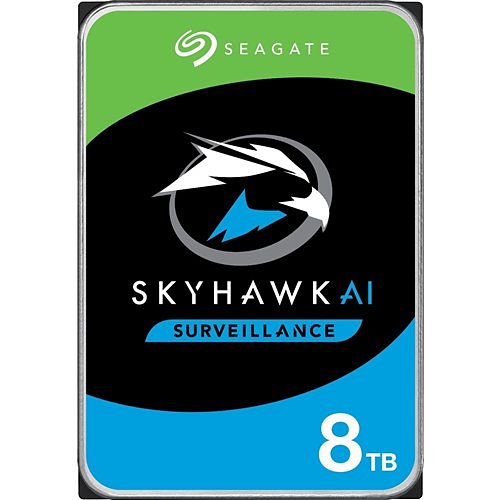

Seagate HDD AV 8TB SkyHawk ST8000VE001
Part# / SKU :
ST8000VE001Product Warranty :
5 Year Limited warrantyBarcode :
ST8000VE001Seagate HDD AV 8TB SkyHawk ST8000VE001
Internal hard drive.
Technical specifications
| Capacity | 8TB |
|---|---|
| Standard Model Numbers | ST8000VE001 |
| Interface | SATA 6 Gb/s |
| Recording Technology | CMR |
| Drive Design | Air |
| Drive Bays Supported | Unlimited |
| AI Channels | 32 |
| AI Real Time Capture Events/Sec | Up to 120 |
| AI Real Time Compare Events/Sec | Up to 96 |
| HD Cameras Supported | Up to 64 |
| RV Sensors | Yes |
| Max. Sustained Transfer Rate OD (MB/s,MiB/s) | Up to 255 |
| Cache (MB) | 256MB |
| Tarnish Resistant | Yes |
| Load/Unload Cycles | 600,000 |
| Nonrecoverable Read Errors Rate, Max | 1 per 10E15 |
| Power-On Hours per year | 8,760 |
| Workload Rate Limit (WRL) | 550 TB/year |
| Mean Time Between Failures (MTBF) (hours) | 2000000 hr |
| Startup Current, Typical (12V, A) | 2.0 A |
| Average Read/Write Power * (W) | 8.8 |
| Idle Average (W) | 7.4 W |
| Standby Mode/Sleep Mode, Typical (W) | 1.0/1.0 W |
| Voltage Tolerance (5V) | ±5% |
| Voltage Tolerance (12V) | ±10% |
| Operating (drive reported, min °C) | 5 |
| Operating (drive reported, max °C) | 65°C |
| Nonoperating (ambient, min °C) | -40°C |
| Height (mm/in, max) | 26.11 mm/1.028 in |
| Width (mm/in, max) | 101.85 mm/4.01 in |
| Depth (mm/in, max) | 146.99 mm/5.787 in |
| Weight (g/lb, typical) | 720 g/1.59 lb |
| Drive capacity | 8TB |
| Drive form factor | 3.5-inch |
| Drive interface | SATA 6 Gb/s |
| Drive recording method | CMR |
| HDD Capacity | 8TB |
| HDD Form Factor | 3.5-inch |
| HDD Interface | SATA 6 Gb/s |
| HDD Recording Method | CMR |
