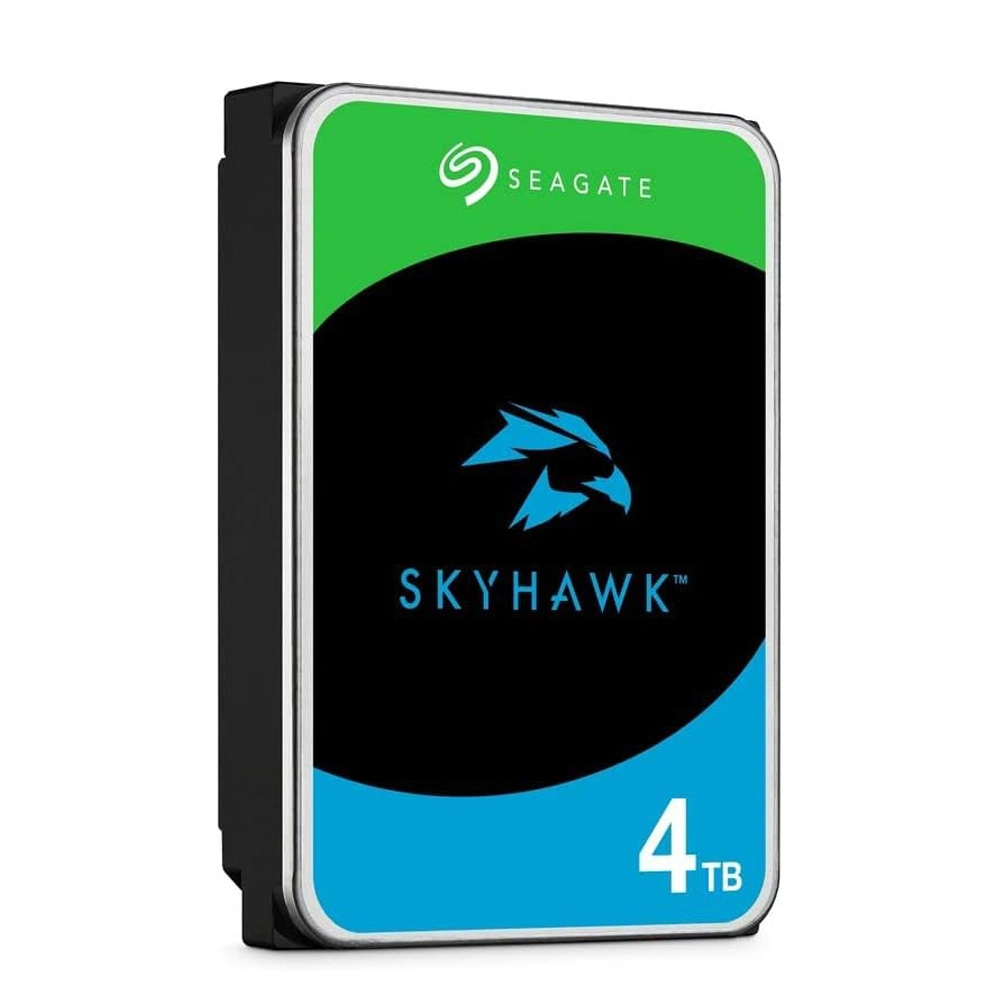

Seagate HDD AV 4TB ST4000VX016
Part# / SKU :
ST4000VX016Product Warranty :
3 Year Limited WarrantyBarcode :
ST4000VX016Seagate HDD AV 4TB ST4000VX016
Internal hard drive.
Technical specifications
| Standard Model Numbers with SRS | ST4000VX016 |
|---|---|
| SkyHawk™ Health Management Included | Yes |
| Interface | SATA 6 Gb/s |
| Recording Technology | CMR |
| Drive Design | Air |
| Drive Bays Supported | Up to 16 |
| Cameras Supported | Up to 64 |
| RV Sensors | Yes |
| Max Sustained Transfer Rate OD (MB/s) | 180MB/s |
| Cache (MB) | 256MB |
| Tarnish Resistant | Yes |
| Load/Unload Cycles | 600,000 |
| Non-recoverable Read Errors Rate, Max | 1 per 10E14 |
| Power-On Hours per year | 8,760 |
| Workload Rate Limit (WRL) | 180 |
| Mean Time Between Failures (MTBF) (hours) | 1000000 hr |
| Startup Current, Typical (12V, A) | 1.8A |
| Average Operating Power (W) | 3.7 W |
| Idling Average (W) | 2.5 W |
| Standby Mode/Sleep Mode, Typical (W) | 0.25W |
| Voltage Tolerance (5 V) | ±5% |
| Voltage Tolerance (12 V) | ±10% |
| Operating (ambient, min °C) | 0°C |
| Operating (drive reported, max °C) | 65°C |
| Non-operating (ambient, min °C) | -40°C |
| Height (mm/in, max) | 20.20 mm/0.795 in |
| Width (mm/in, max) | 101.6 mm/4.0 in |
| Depth (mm/in, max) | 146.99 mm/5.787 in |
| Weight (g/lb, typical) | 490 g/1.08 lb |
| Drive capacity | 4TB |
| Drive form factor | 3.5-inch |
| Drive interface | SATA 6 Gb/s |
| Drive recording method | CMR |
| HDD Capacity | 4TB |
| HDD Form Factor | 3.5-inch |
| HDD Interface | SATA 6 Gb/s |
| HDD Recording Method | CMR |
