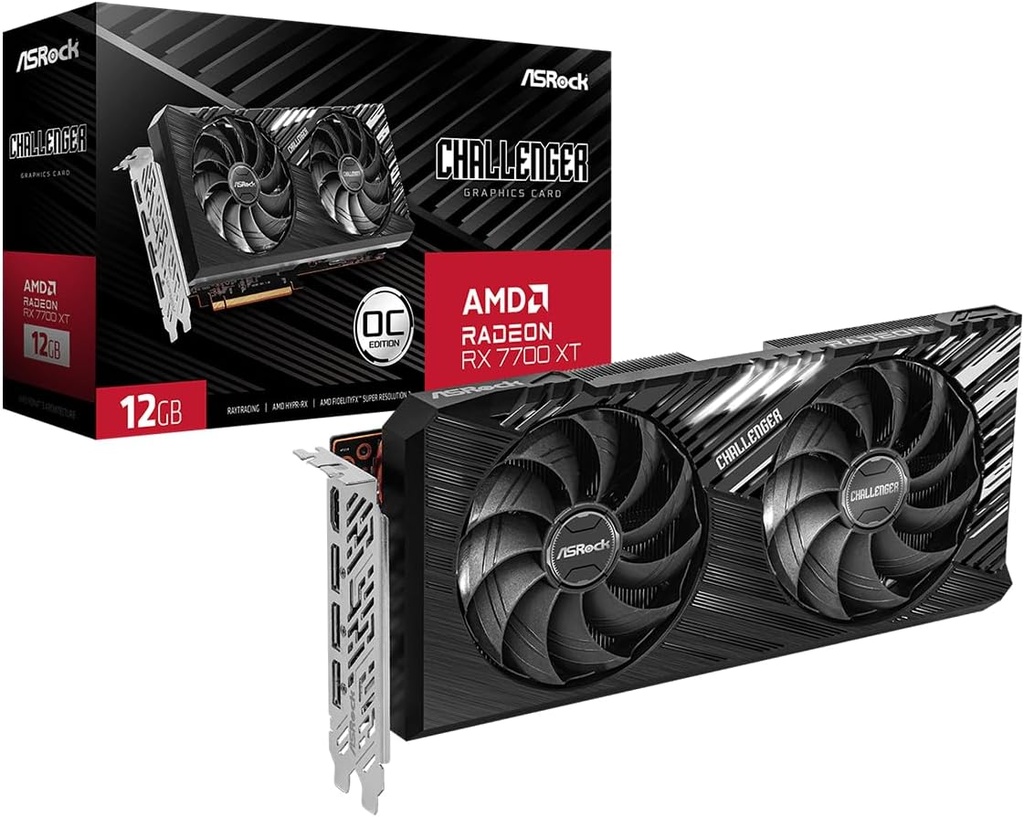

RX7700XT 12GB OC Asrock Challenger AMD Radeon
Part# / SKU :
90-GA4QZZ-00IANFProduct Warranty :
Three Year WarrantyRX7700XT 12GB OC Asrock Challenger AMD Radeon
A graphics card based on AMD Radeon RX 7700 XT with 12GB GDDR6. Clock specification: Boost Clock: 2584 MHz; Game Clock: 2226 MHz. Display connections: 1 x HDMI 2.1 (up to FRL 12Gbps); 3 x DisplayPort 2.1 with DSC (up to UHBR3 13.5Gbps)*. Check the listed dimensions, power connections and system requirements when planning your build.
Technical specifications
| Graphics Engine | AMD Radeon RX 7700 XT Graphics |
|---|---|
| Bus Standard | PCI Express 4.0 x16 |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Memory | GDDR6 12GB |
| Engine Clock | Boost Clock: 2584 MHz; Game Clock: 2226 MHz |
| Stream Processors | 3456 |
| Compute Units | 54 |
| Memory Speed | 18Gbps |
| Memory Interface | 192-bit |
| Resolution | Digital Max Resolution: 7680x4320 |
| Interface | 1 x HDMI 2.1 (up to FRL 12Gbps); 3 x DisplayPort 2.1 with DSC (up to UHBR3 13.5Gbps)* |
| HDCP | Yes |
| Multi-view | 4 |
| Recommended PSU | 750W |
| Power Connector | 2 x 8-pin |
| Accessories | 1 x Quick Installation Guide |
| Dimensions | 267 x 130 x 51mm |
| Net Weight | 985g |
| Graphics Processing Unit | AMD Radeon RX 7700 XT |
| Memory Bus | 192-bit |
