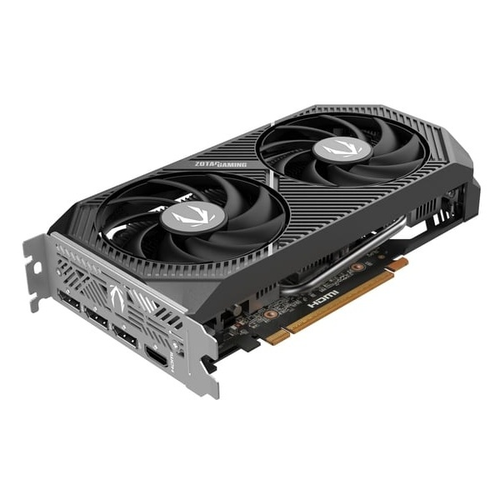

RTX5060 8GB Zotac Twin Edge ZT-B50600E-10M
Part# / SKU :
ZT-B50600E-10MBarcode :
8886307701534RTX5060 8GB Zotac Twin Edge ZT-B50600E-10M
A graphics card based on NVIDIA GeForce RTX 5060 with 8GB GDDR7. Clock specification: 2497 MHz. Display connections: 3 x DisplayPort 2.1b; 1 x HDMI 2.1b. Check the listed dimensions, power connections and system requirements when planning your build.
Technical specifications
| GPU | NVIDIA GeForce RTX 5060 |
|---|---|
| CUDA Cores | 3840 |
| Video Memory | 8GB GDDR7 |
| Memory Bus | 128 bit |
| Boost Clock | 2497 MHz |
| Memory Clock | 28 Gbps |
| Host Interface | PCI Express 5.0 x8 |
| HDCP | 2.3 |
| Maximum Displays | 4 |
| Recommended PSU | 550 W |
| Maximum Power Consumption | 145 W |
| Power Input | 1 x 8-pin power input |
| Card Length | 220.5 mm |
| Card Height | 120.25 mm |
| Card Width / Slot | 2 slot (41.6 mm) |
| OpenGL | 4.6 |
| DirectX | 12 Ultimate |
| Vulkan | 1.4 |
| EAN | 8886307701534 |
| MPN | ZT-B50600E-10M |

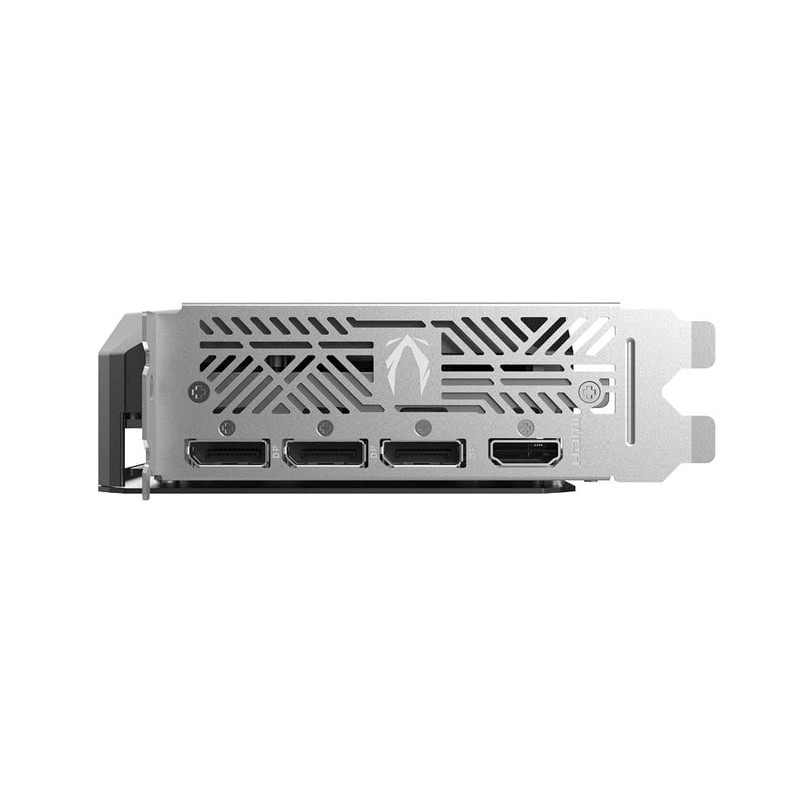

| Display Outputs | 3 x DisplayPort 2.1b; 1 x HDMI 2.1b |
| Architecture | NVIDIA Blackwell |
| Cooling Fans | 2 x 90 mm BladeLink |
| Tensor Core Generation | 5 |
| Ray Tracing Core Generation | 4 |
| DLSS Support | NVIDIA DLSS 4 |

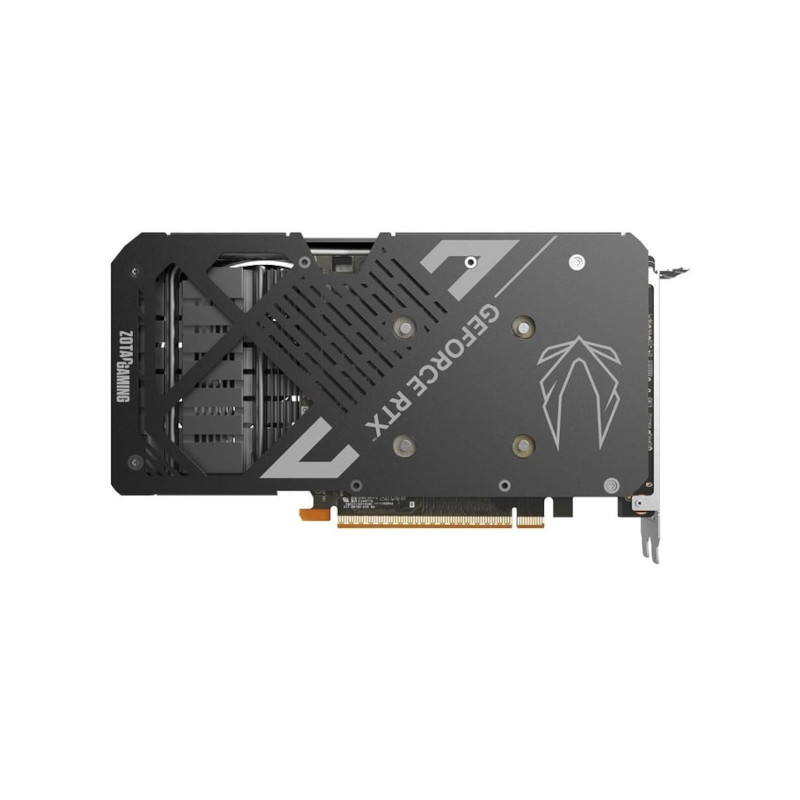

| Backplate | Metal Backplate |
| Graphics Processing Unit | NVIDIA GeForce RTX 5060 |
| Memory | 8GB GDDR7 |
| Interface | PCIe Gen 5 x8 |
