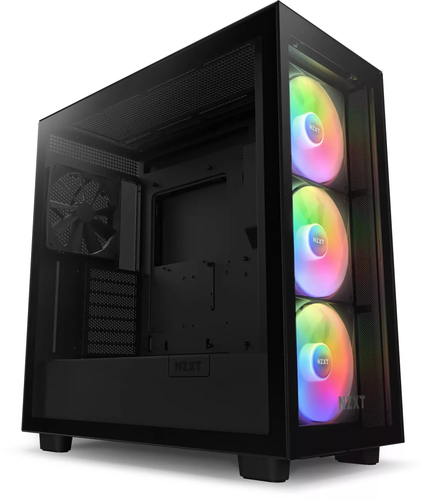

NZXT Case H7 Elite Black 3x140mm RGB & 1x140mm CM-H71EB-01
Part# / SKU :
CM-H71EB-01Barcode :
5056547203515H7 Elite
Supported motherboard formats: E-ATX, ATX, Micro-ATX, Mini-ITX.
Technical specifications
| Height (with Feet) | 505 mm (19.89 in) (With Feet) |
|---|---|
| Width | 230 mm (9.06 in) |
| Depth | 480 mm (18.90 in) |
| Weight | 11.36 kg |
| Enclosure Type | ATX Mid-Tower |
| Motherboard Compatibility | E-ATX (up to 272 mm (10.7 in)) ATX Micro-ATX Mini-ITX |
| Supports Back Connect Motherboards (BTF, Project Zero, etc.) | No |
| CPU Cooler Height | Up to 185 mm |
| GPU Length | Up to 400 mm |
| Cable Management | 18 - 22 mm |
| Front Radiator Thickness | Up to 60 mm* * Without fans, can support up to 30 mm fans w/ 60 mm radiator. Total thickness = 90 mm. |
| Top Radiator Thickness | Up to 30 mm* * Without fans, can support up to 30 mm fans w/ 30 mm radiator. Total thickness = 60 mm. |
| Front I/O Ports - USB Type-A | 2 |
| Front I/O Ports - USB Type-C | 1 |
| Front I/O Ports - 3.5 mm Headset Jack | 1 |
| Expansion Slots - Standard | 7 |
| Expansion Slots - Vertical | 0 |
| Expansion Slots - Vertical GPU Mounting Kit Compatible | Yes |
| Drive Bays - 2.5" | 4+2 |
| Drive Bays - 3.5" | 2 |
| Fan Support - Front | 3 x 120 mm 3 x 140 mm |
| Fan Support - Top | 3 x 120 mm 2 x 140 mm |
| Fan Support - Rear | 1 x 120 mm 1 x 140 mm |
| Radiator Support - Front | Up to 360 mm (120 mm base) Supports Push/Pull w/ 120 mm base Up to 280 mm (140 mm base) |
| Radiator Support - Rear | 120 mm 140 mm |
| Manufacturer model | H7 Elite |
| Materials | SGCC steel and tempered glass |
| Case Form Factor | Mid-Tower |
| Maximum GPU Length | 400 mm |
