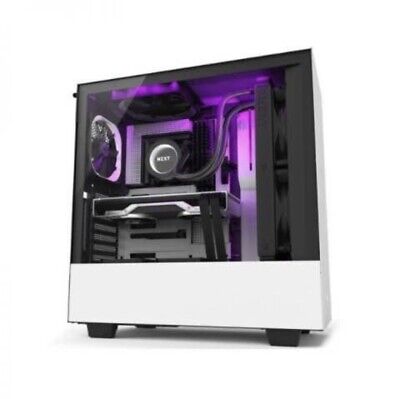

NZXT Case H510 ELITE White Aer RGB 2x140mm Fans CA-H510E-W1
Part# / SKU :
CA-H510E-W1Barcode :
5060301695294H510 Elite
Supported motherboard formats: ATX, Micro-ATX, Mini-ITX.
Technical specifications
| Height (with Feet) | 460 mm (18.11 in) |
|---|---|
| Width | 210 mm (8.27 in) |
| Depth | 428 mm (16.85 in) |
| Weight | 7.5 kg |
| Enclosure Type | Compact ATX Mid-Tower |
| Motherboard Compatibility | ATX Micro-ATX Mini-ITX |
| Supports Back Connect Motherboards (BTF, Project Zero, etc.) | No |
| Included Controller | Smart Device V2 |
| CPU Cooler Height | 165 mm |
| GPU Length | Up to 381 mm (w/o front fans or radiator) |
| Cable Management Clearance | 19 - 23 mm |
| Front Fan & Radiator Clearance | Up to 60 mm |
| Front I/O Ports - USB Type-A | 1 |
| Front I/O Ports - USB Type-C | 1 |
| Front I/O Ports - 3.5 mm Headset Jack | 1 |
| Expansion Slots - Standard | 7 |
| Expansion Slots - Vertical | 0 (H510, H510 Flow) 2 (H510i, H510 Elite) |
| Expansion Slots - Vertical GPU Mounting Kit Compatible | No |
| Drive Bays - 2.5" | 2 + 1 |
| Drive Bays - 3.5" | 2 + 1 |
| Fan Support - Front | Up to 2 x 120 mm Up to 2 x 140 mm |
| Fan Support - Top | 1 x 120 mm 1 x 140 mm |
| Fan Support - Rear | 1 x 120 mm |
| Radiator Support - Front | Up to 240 mm (120 mm base) Up to 280 mm (140 mm base) |
| Radiator Support - Rear | Up to 120 mm |
| Manufacturer model | H510 Elite |
| Manufacturer part number | CA-H510E-W1 |
| Materials | SGCC steel and tempered glass |
| Included fans - Front | 2 x RGB 2 140 mm |
| Included fans - Top | 1 x Aer F 140 mm (Case Version) |
| Included fans - Rear | 1 x Aer F 120 mm (Case Version) |
| Case Form Factor | Mid-Tower |
| Maximum GPU Length | 381 mm |
