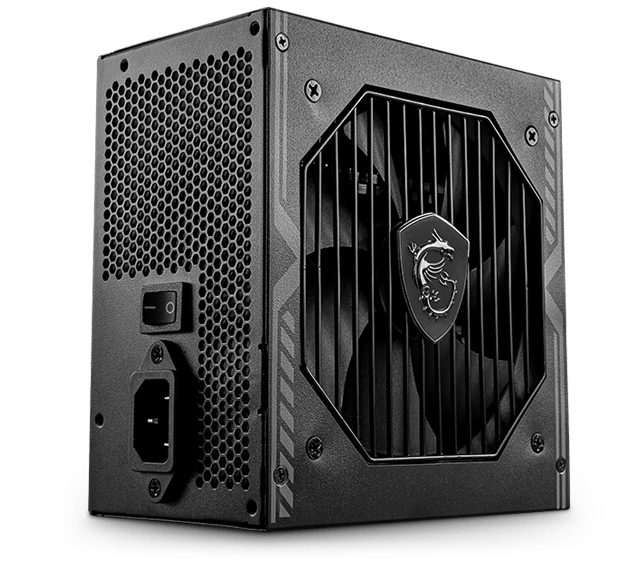

MSI PSU 650W Bronze MAG A650BN
MAG A650BN provides players with a safe, reliable, and efficient entry-level power supply option. Its core features include 80 PLUS Bronze certification, DC to DC circuit design, 12V single rail, active PFC, and low-noise fan.
Part# / SKU :
MAG A650BNProduct Warranty :
3 Year Limited WarrantyBarcode :
4719072870478Technical details are listed in the Specifications tab.
| EFFICIENCY RATING | 80 PLUS Bronze (up to 85%) |
|---|---|
| MODULAR | No |
| FAN SIZE | 120 mm |
| FAN BEARING | Sleeve Bearing |
| DIMENSIONS (DXWXH) | 140 x 150 x 86 mm |
| PFC TYPE | Active PFC |
| INPUT VOLTAGE RANGE | 100~240 VAC |
| POWER WATT | 650W |
| INPUT FREQUENCY RANGE | 50~60 Hz |
| PROTECTION | OCP / OVP / OPP / OTP / SCP |
| ATX (24 PIN) | 1 |
| EPS (4+4 PIN) | 1 |
| PCI-E (6+2 PIN) | 2 |
| SATA (15 PIN) | 5 |
| MOLEX (4 PIN) | 2 |
| FDD (4 PIN) | 1 |
| Power range | 600W - 700W |
