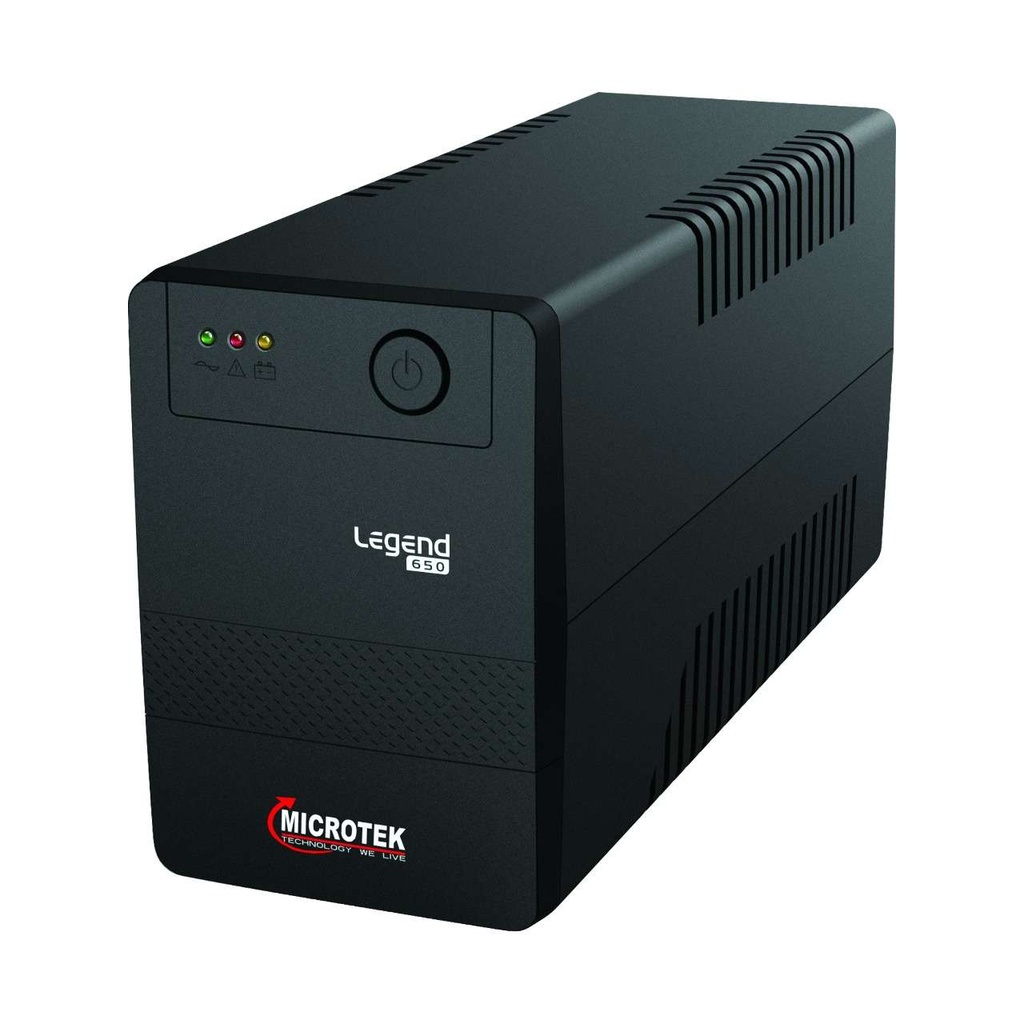

Microtek UPS Legend 650va
Product Warranty :
Two Years WarrantyLEGEND 650
Manufacturer specifications for this model.
| Product type | Line-interactive UPS |
|---|---|
| Capacity | 650VA/360W |
| Input nominal voltage | 220V AC / 230V AC |
| Output voltage regulation (battery mode) | ±10% (Battery Mode) |
| Transfer time | Typical 4~8ms |
| Waveform (battery mode) | Modified Sine Wave |
| Battery type | SMF |
| Charging time | 6 Hours recover to 90% capacity |
| Input voltage range | 140~300V AC |
| Battery number/rating | 12V / 7AHx1 |
| Dimensions (D x W x H), mm | 281x100x143 |
| Noise level | Less than 40dB |
| Input frequency | 50 Hz ± 10% |
| Battery-mode nominal output voltage | 230 V AC nominal |
| Battery-mode output frequency | 50 Hz ± 1 Hz |
| Low-battery automatic shutdown | Built in |
| Off-mode charging | Built in |
| Overload protection | Built in |
| Architecture | Line interactive UPS |
| Voltage regulation | Boost and buck AVR |
| Protection | Overload, discharge and overcharge |
| Auto restart | While AC is recovering |
| Generator compatibility | Option |
| Cold start | Supported |
| Power | 360W |
| UPS Apparent Power | 650 VA |
| UPS Topology | Line-interactive |
