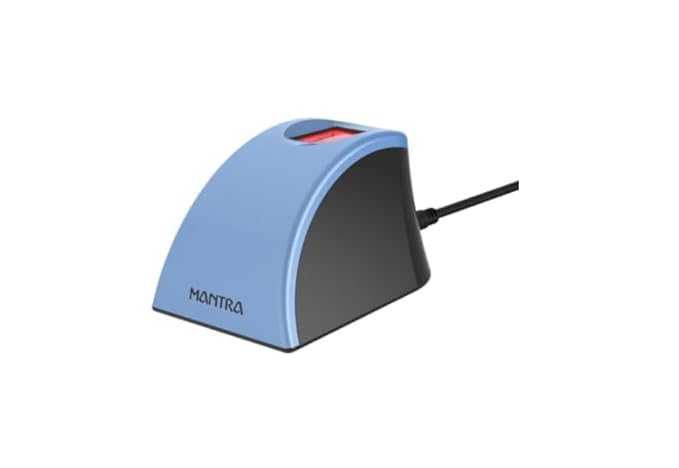

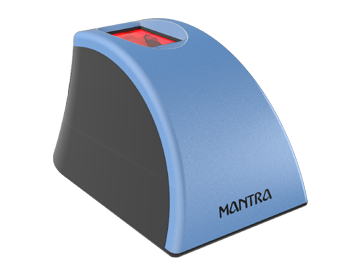

Mantra MFS110 L1 Biometric Single Fingerprint Scanner
Part# / SKU :
MFS110 L1Mantra MFS110 L1 Biometric Single Fingerprint Scanner
Sources: Manufacturer specifications
| Product type | Fingerprint scanner |
|---|---|
| Authentication Method | Fingerprint |
| Fingerprint Sensor Type | Optical Sensor |
| Spatial Resolution | 500 DPI ±2% |
| Platen Area | 16.0 mm X 19.0 mm |
| Image Size | 276 X 336 Pixels |
| Image Grayscale | 256 (8 - Bit Gray Level) |
| Light Source | Red LED |
| Maximum Acquisition time (Placement to Template) | < 2 Sec |
| Approx. Dimension (L x W x H) | 91 x 61 x 54 mm |
| Approx. Weight | 0.14 kg |
| Capture Mode | Auto capture with built-in quality check (incorporates NIST quality considerations) |
| Certifications | CE, RoHS, BIS, IP54 |
| Crypto Operation | Hardware base RSA2048 Key Generation, AES-GCM-256, SHA-256, TRNG support |
| Secure Memory | TEE support by the device. Secure memory support key wraping feature |
| Secure Boot | Secure boot support by the device |
| Operating Voltage | 5V ±5% (USB Powered Device) |
| Operating Current | < 90 mA |
| Stand by Current | 50 mA |
| Interface | USB 2.0 |
| Operating Temperature | 0 to 50 o C |
| Storage Temperature | 0 to 50 o C |
| Humidity (Operating / Storage) | <90% RH, Non-Condensing |
| Biometric Data Interchange Format | ISO 19794-2 for minutiae & ISO 19794-4 for Image Template in Encrypted PID Data Block |
| Safety | EN/IEC 62368-1, IS 13252 (Part 1) |
| EMI / EMC Compliance | CE, FCC Part 15B |
| Environmental, Health and Safety | RoHS |
| Image Quality Compliance | FBI PIV, STQC |
| IP Rating | IP54 |
| Device Driver | WHQL certified |
| Operating System | Windows 10 above, Linux, Android |
