Lenovo Docking Station 40AF0135IN
Product Warranty :
One Year WarrantyBarcode :

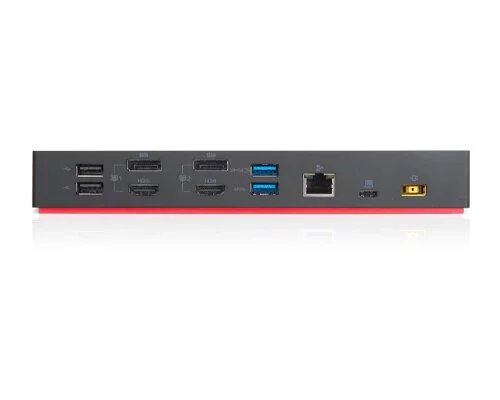

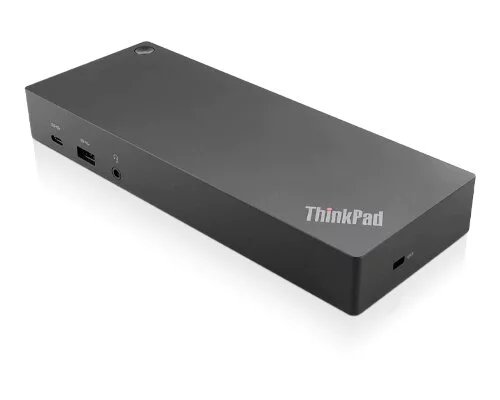

191999788328ThinkPad Hybrid USB-C with USB-A Dock

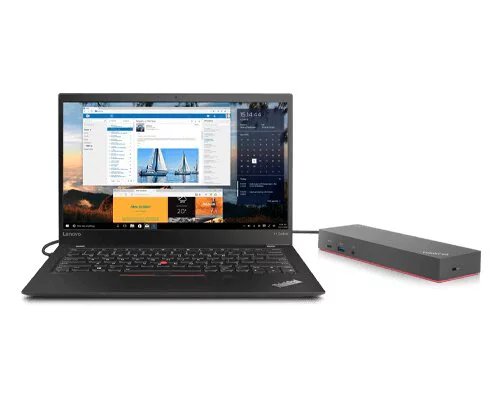

The Lenovo ThinkPad Hybrid USB-C with USB-A Dock, Indian part number 40AF0135IN, adds display, USB, Ethernet and audio connections to compatible laptops. The supplied USB-C to USB-A adapter supports connection to suitable USB-A systems. It supports up to two UHD displays; charging and management features depend on the connected system.
Technical specifications
| Model | ThinkPad Hybrid USB-C with USB-A Dock |
|---|---|
| Manufacturer part number | 40AF0135IN (India) |
| Docking interface | USB-C cable with USB-C to USB-A adapter |
| Power adapter | ThinkPad 135 W AC adapter, Slim Tip |
| DisplayPort outputs | 2 |
| HDMI outputs | 2 |
| Maximum external displays | Up to two UHD displays using DisplayPort/HDMI |
| USB 2.0 ports | 2 |
| USB 3.2 Gen 2 ports | 3; up to 10 Gbps, one Always-On charging port |
| USB-C downstream port | 1; up to 10 Gbps, 5 V / 3 A |
| Audio port | 1 x combo audio jack |
| Ethernet | Gigabit Ethernet (RJ45) |
| Dimensions (W x D x H) | 210 x 80 x 30 mm |
| Security slots | Kensington and NanoSaver lock slots |
| Network management | PXE boot, Wake-on-LAN and MAC address pass-through on supported systems |
| Operating systems listed in manufacturer datasheet | Windows 10/11; macOS 13/14; Ubuntu 22.04; Chrome OS |

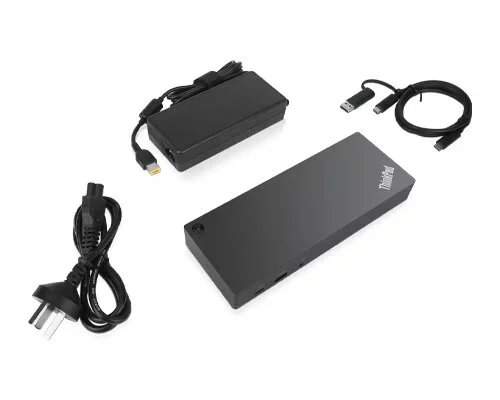

| Shipment group | Dock, USB-C cable with USB-C to USB-A adapter, 135 W AC adapter, power cord and poster |
| Compatibility note | Feature availability depends on the connected laptop and supported manufacturer configuration; verify compatibility before use |
