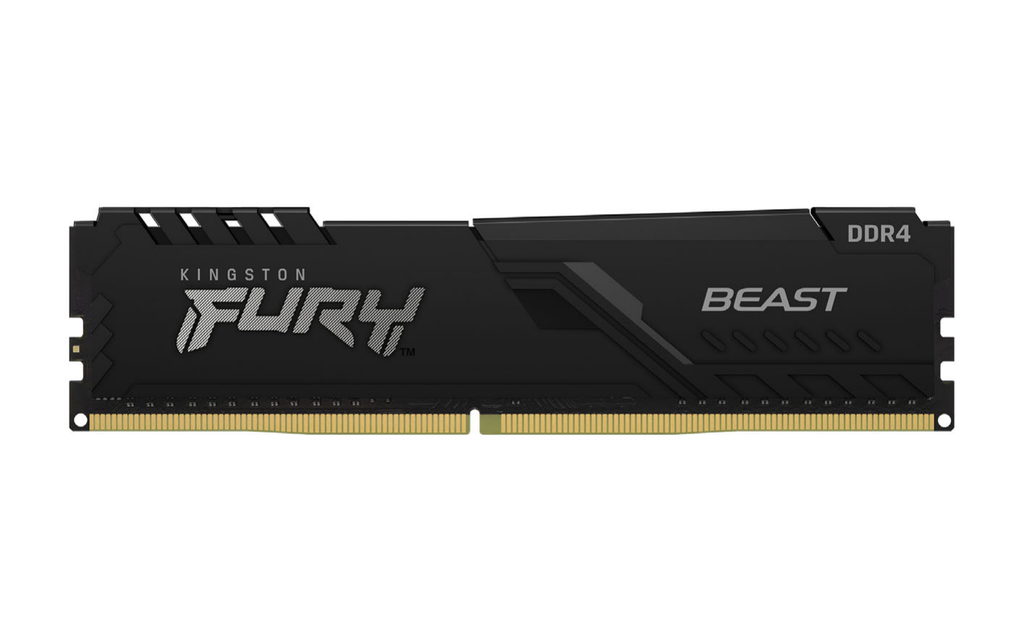

Kingston DDR4 8GB 3200Mhz Fury KF432C16BB/8
Product Warranty :
Lifetime Warranty (5-10 Years)Barcode :
740617319910Kingston DDR4 8GB 3200Mhz Fury KF432C16BB/8
Type: DDR4; Capacity: 8GB; Transfer Rate: 3200MT/s; Form Factor: DIMM; Module Count: 1
Technical specifications
| Memory type | DDR4 |
|---|---|
| Total capacity | 8GB |
| Rated transfer rate (up to) | 3200MT/s |
| Module form factor | DIMM |
| Modules in package | 1 |
| Module capacity | 8GB |
| Rank and organization | 1Rx8 |
| Pins | 288 |
| JEDEC default CAS latency | 17 cycles |
| Default row cycle time (tRCmin) | 45.75ns minimum |
| Default refresh command time (tRFCmin) | 350ns minimum |
| Default row active time (tRASmin) | 32ns minimum |
| Operating temperature | 0°C to85°C |
| Storage temperature | -55°C to100°C |
| UL rating | 94 V-0 |
| Dimensions with heat spreader | 133.35 x34.1 x7.2mm |
| Dimension tolerance | ±0.15mm unless otherwise specified |
| Power supply VDD | 1.2V typical |
| Power supply VDDQ | 1.2V typical |
| VPP | 2.5V typical |
| VDDSPD | 2.2V to3.6V |
| On-die termination | Supported |
| Internal memory banks | 16;4groups of4 |
| Burst length | BL8 orBC4 |
| Refresh | 8K |
| Prefetch | 8-bit |
| JEDEC default | DDR4-2400 CL17-17-17 @1.2V |
| XMP Profile1 | DDR4-3200 CL16-18-18 @1.35V |
| XMP Profile2 | DDR4-3000 CL15-17-17 @1.35V |
| Profile support | Intel XMP2.0 |
| Rated performance conditions | Published timing/profile requires compatible CPU/motherboard and supported BIOS settings; may not be reached by all systems. |
| RAM Type | DDR4 |
| RAM Capacity | 8GB |
| RAM Transfer Rate | 3200MT/s |
| RAM Form Factor | DIMM |
| RAM Module Count | 1 |
