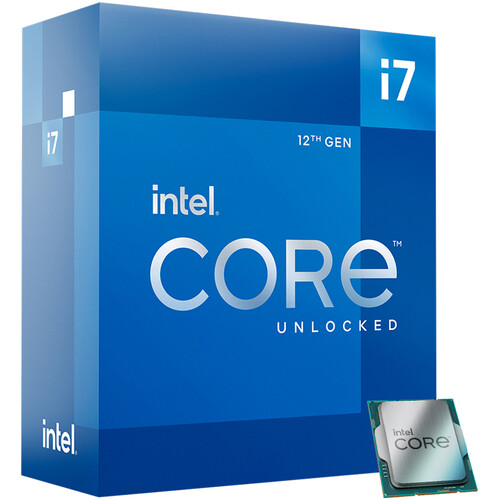

Intel Core i7-12700K Processor
Product Warranty :
3 Year WarrantyBarcode :
5032037233989Intel Core i7-12700K Processor
Core i7 desktop processor with 12 cores and 20 threads for the LGA1700 socket. Includes processor graphics.
Technical specifications
| Product Collection | 12th Generation Intel® Core™ i7 Processors |
|---|---|
| Code Name | Products formerly Alder Lake |
| Vertical Segment | Desktop |
| Processor Number | i7-12700K |
| Lithography | Intel 7 |
| Total Cores | 12 |
| # of Performance-cores | 8 |
| # of Efficient-cores | 4 |
| Total Threads | 20 |
| Max Turbo Frequency | 5.00 GHz |
| Intel® Turbo Boost Max Technology 3.0 Frequency ‡ | 5.00 GHz |
| Performance-core Max Turbo Frequency | 4.90 GHz |
| Efficient-core Max Turbo Frequency | 3.80 GHz |
| Performance-core Base Frequency | 3.60 GHz |
| Efficient-core Base Frequency | 2.70 GHz |
| Cache | 25 MB Intel® Smart Cache |
| Total L2 Cache | 12 MB |
| Processor Base Power | 125 W |
| Maximum Turbo Power | 190 W |
| Marketing Status | Launched |
| Launch Date | Q4'21 |
| Embedded Options Available | No |
| Use Conditions | PC/Client/Tablet, Workstation |
| Max Memory Size (dependent on memory type) | 128 GB |
| Memory Types | Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 76.8 GB/s |
| ECC Memory Supported ‡ | Yes |
| GPU Name ‡ | Intel® UHD Graphics 770 |
| Graphics Base Frequency | 300 MHz |
| Graphics Max Dynamic Frequency | 1.50 GHz |
| Graphics Output | eDP 1.4b, DP 1.4a, HDMI 2.1 |
| Execution Units | 32 |
| Max Resolution (HDMI) ‡ | 4096 x 2160 @ 60Hz |
| Max Resolution (DP)‡ | 7680 x 4320 @ 60Hz |
| Max Resolution (eDP - Integrated Flat Panel)‡ | 5120 x 3200 @ 120Hz |
| DirectX* Support | 12 |
| OpenGL* Support | 4.5 |
| OpenCL* Support | 3.0 |
| Multi-Format Codec Engines | 2 |
| Intel® Quick Sync Video | Yes |
| Intel® Clear Video HD Technology | Yes |
| # of Displays Supported ‡ | 4 |
| Device ID | 0x4680 |
| Direct Media Interface (DMI) Revision | 4.0 |
| Max # of DMI Lanes | 8 |
| Scalability | 1S Only |
| PCI Express Revision | 5.0 and 4.0 |
| PCI Express Configurations ‡ | Up to 1x16+4, 2x8+4 |
| Max # of PCI Express Lanes | 20 |
| Sockets Supported | FCLGA1700 |
| Max CPU Configuration | 1 |
| Thermal Solution Specification | PCG 2020A |
| T JUNCTION | 100°C |
| Package Size | 45.0 mm x 37.5 mm |
| Max Operating Temperature | 100 °C |
| Intel® Gaussian & Neural Accelerator | 3.0 |
| Intel® Thread Director | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU | Yes |
| Intel® Optane™ Memory Supported ‡ | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Turbo Boost Max Technology 3.0 ‡ | Yes |
| Intel® Turbo Boost Technology ‡ | 2.0 |
| Intel® Hyper-Threading Technology ‡ | Yes |
| Intel® 64 ‡ | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Volume Management Device (VMD) | Yes |
| Intel vPro® Eligibility ‡ | Intel vPro® Enterprise |
| Intel® Threat Detection Technology (TDT) | Yes |
| Intel® Active Management Technology (AMT) ‡ | Yes |
| Intel® Standard Manageability (ISM) ‡ | Yes |
| Intel® One-Click Recovery ‡ | Yes |
| Intel® Hardware Shield Eligibility ‡ | Yes |
| Intel® Secure Key | Yes |
| Intel® Control-Flow Enforcement Technology | Yes |
| Intel® Total Memory Encryption - Multi Key | Yes |
| Intel® Total Memory Encryption | Yes |
| Intel® AES New Instructions | Yes |
| Intel® OS Guard | Yes |
| Intel® Trusted Execution Technology ‡ | Yes |
| Execute Disable Bit ‡ | Yes |
| Intel® Boot Guard | Yes |
| Mode-based Execute Control (MBEC) | Yes |
| Intel® Stable IT Platform Program (SIPP) | Yes |
| Intel® Virtualization Technology with Redirect Protection (VT-rp) ‡ | Yes |
| Intel® Virtualization Technology (VT-x) ‡ | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
| Processor family | Core i7 |
| Processor socket | LGA1700 |
| Processor core count | 12 |
| Processor thread count | 20 |
| Processor graphics capability | Integrated graphics |
| Processor Cores | 12 |
| Processor Graphics | Integrated graphics |
| Processor Threads | 20 |
| Processor Generation | 12th Generation |
| Supported Chipsets | H610 / B760 / Z790 |
| Graphics Capabilities | Intel Graphics OnBoard |
