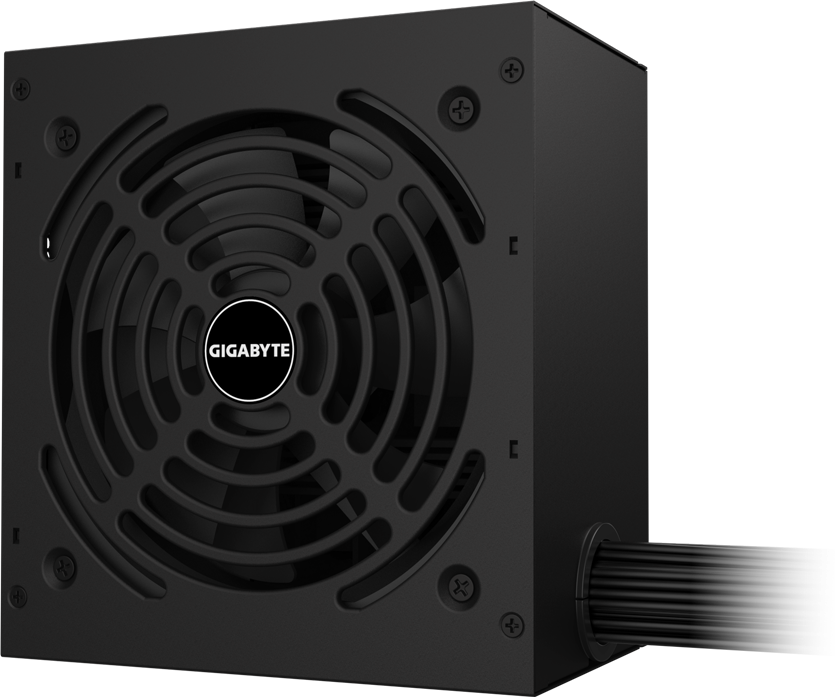

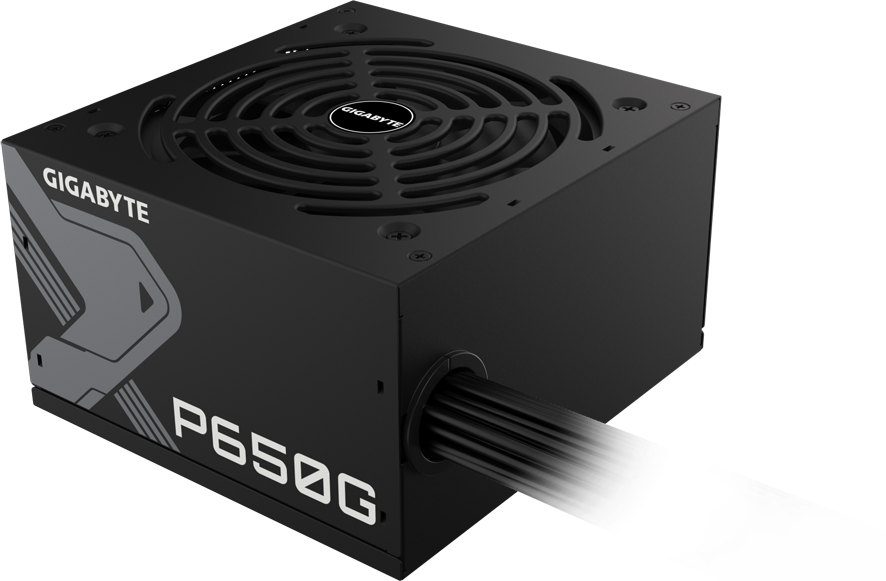

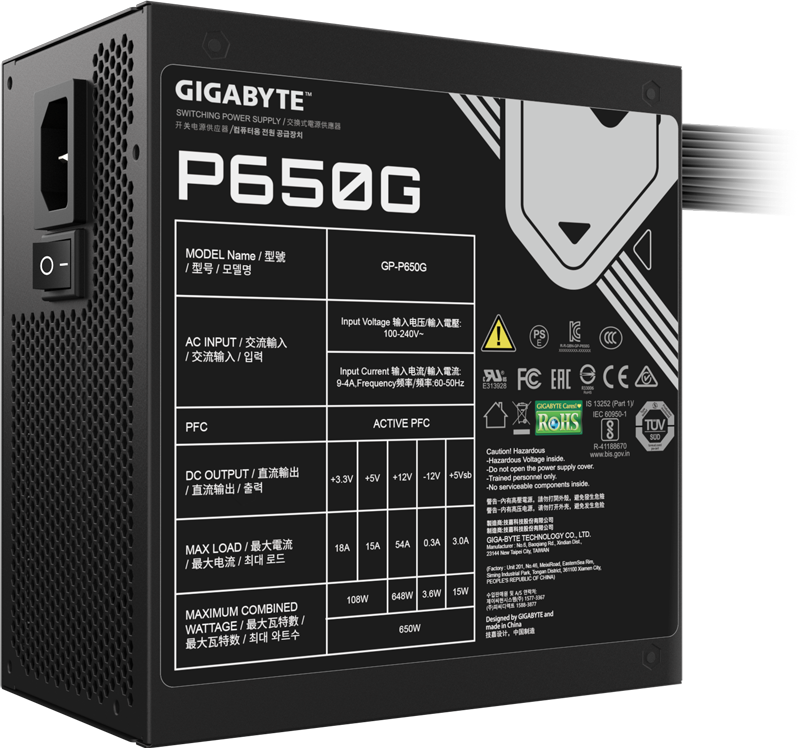

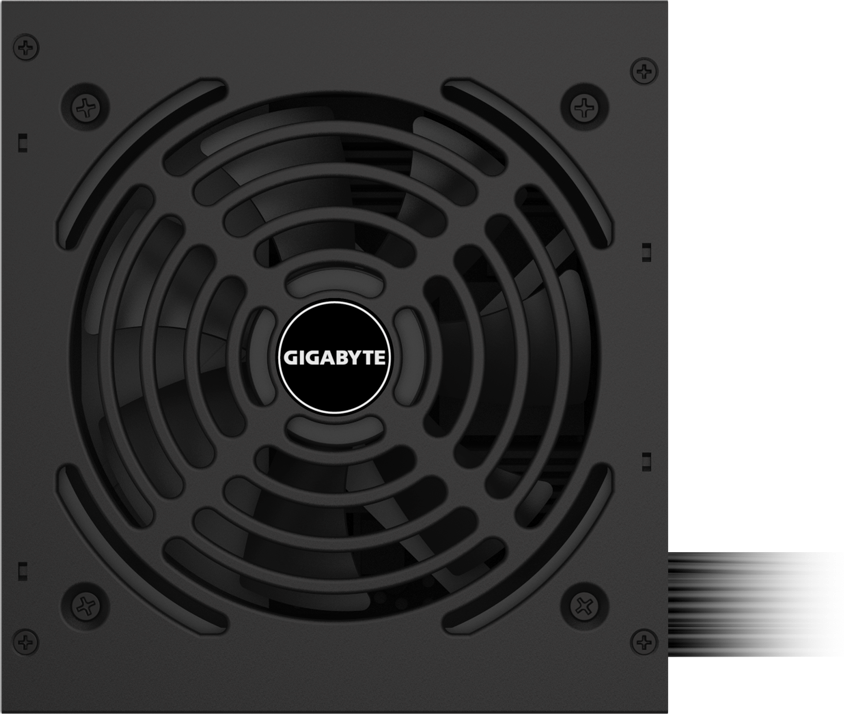

Gigabyte PSU 650W GP-P650G Gold
Part# / SKU :
GP-P650GBarcode :
4719331554064Gigabyte PSU 650W GP-P650G Gold
Rated output: 650W. Efficiency certification: 80 Plus Gold. Fixed output cables. Cooling: 120mm Hydraulic Bearing (HYB) Fan. Protection: OVP/OPP/SCP/UVP/OCP/OTP.
Technical specifications
| Model | GP-P650G |
|---|---|
| Type | Intel Form Factor ATX 12V |
| PFC | Active PFC(>0.9 typical) |
| Input Voltage | 100-240 Vac(full range) |
| Input Current | 9-4A |
| Input Frequency | 60-50 Hz |
| Output Capacity | 650W |
| Dimensions | 150 x 140 x 86 mm |
| Fan Type | 120mm Hydraulic Bearing (HYB) Fan |
| 80 PLUS | Gold |
| Efficiency | 90% at typical load |
| MTBF | >100,000 hours |
| Protections | OVP/OPP/SCP/UVP/OCP/OTP |
| Power Good Signal | 100-500ms |
| Hold Up Time | >16ms |
| Cable Type | Flat, All black |
| Connectors | ATX/MB 20+4 Pin x 1 : 600mm*1 CPU/EPS 4+4 Pin x 2 : 600mm+150mm*1 PCI-e 6+2 Pin x 4 : 500mm+150mm*2 SATA x 6 : 500mm+150mm+150mm*2 4 Pin Peripheral x 3: 500mm+150mm+150mm*1 |
| Modularity | Non-modular |
| Power | 650W |
| Efficiency rating | 80 Plus Gold |
| Modular | No |
