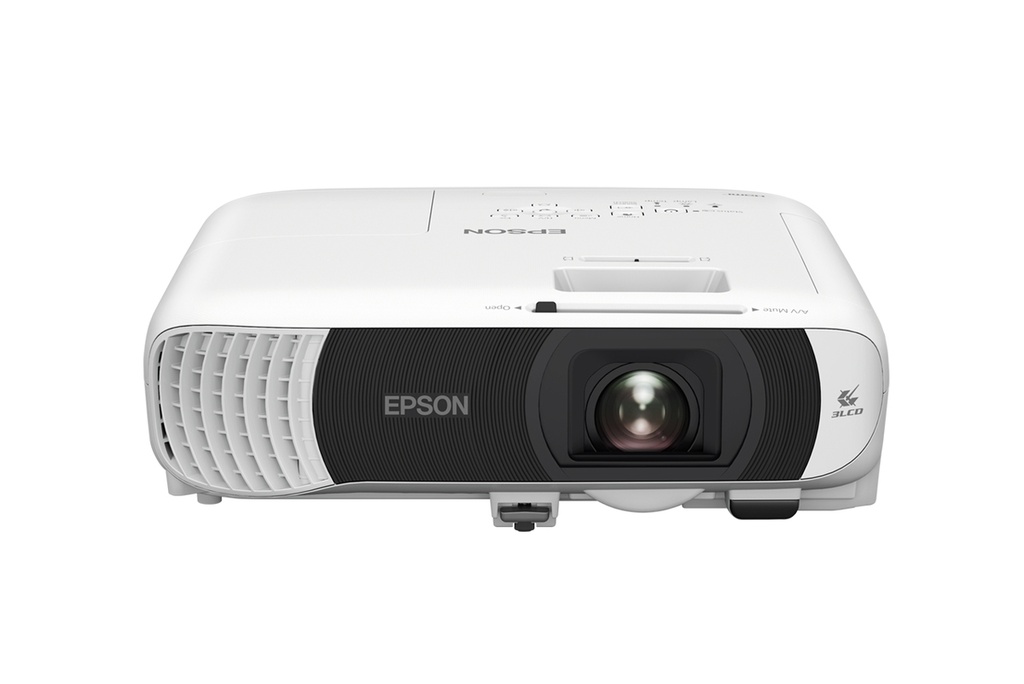

Epson Projector EB-FH54
EPSON
Epson has an extensive range of Multifunction printers, data and home theatre projectors, as well as POS printers and large format printing solutions
Product Warranty :
One Year WarrantyEpson Projector EB-FH54
Sources: Manufacturer specifications · Manufacturer specifications
| Projection technology | 3LCD |
|---|---|
| LCD driving method | Poly-silicon TFT active matrix |
| Pixel arrangement | Cross stripe |
| Lens focus | Manual |
| Power supply | 100–240 V AC ±10%, 50/60 Hz |
| Power consumption (normal / extended, 220–240V) | 332 W / 231 W |
| Cooling | Instant off |
| Operating temperature, low altitude | 5–40 °C at 0–2286m |
| Operating temperature, high altitude | 5–35 °C above2286m |
| Operating humidity | 20–80%, no condensation |
| High altitude mode range | 0–3048m; high altitude mode above1500m |
| Direct power on/off | Supported |
| HDMI inputs | 2 (HDCP1.4) |
| USB Type-B | 1; firmware update / copy OSD settings |
| LCD panel size | 0.62 inches |
| Native aspect ratio | 16:9 |
| Lens aperture | F1.51–1.77 |
| Lens focal length | 18.2–29.1mm |
| Optical zoom | 1.0–1.62 |
| Throw ratio | 1.30–2.09 |
| Lamp type | 230W UHE |
| Lamp life normal / eco | 5500 / 12000 hours |
| Standard screen | 60 inches at1.73–2.80m |
| White light output normal / eco | 4100 / 2300lm |
| Colour light output | 4100lm |
| Centre light output (manufacturer method) | 4400lm |
| Contrast ratio | 16000:1 |
| Vertical / horizontal keystone | ±30° / ±30° |
| Automatic keystone | Vertical only |
| Speaker | Mono16W ×1 |
| Wireless LAN | Built-in |
| Wireless standards | IEEE802.11a/b/g/n/ac/ax |
| Miracast | Wi-Fi CERTIFIED Miracast R2 |
| Dimensions excluding feet W×D×H | 309×282×90mm |
| Weight | Approx3.1kg |
| Fan noise normal / eco | 37 / 28dB |
| Audio output | 1 stereo mini |
| USB Type-A | 1; wireless LAN, firmware update, copy OSD settings |
| Miracast video codec | H.264 AVC |
| AirPlay2 supported codecs (manufacturer spelling) | H.264(AVC), H.265(HEVC), AV1, VP9, MEPG-2, MPEG-4 |
| Wireless interface modes | Infrastructure / Simple AP Wi-Fi Direct |
| Infrastructure security | Open, WPA2/WPA3-PSK, WPA2/WPA3-EAP |
| Wireless EAP types | PEAP / EAP-TLS |
| Simple AP security | WPA2-PSK AES |
| Air filter type | Electrostatic |
| Filter maintenance normal / eco | 10000 / 20000hours |
| Standby eco power | 0.3 W |
| Projector Projection Technology | 3LCD |
| Projector Light Source | Lamp |
| Projector White Brightness | 4100 lm |
| Resolution | 1920 x 1080 (FHD) |
