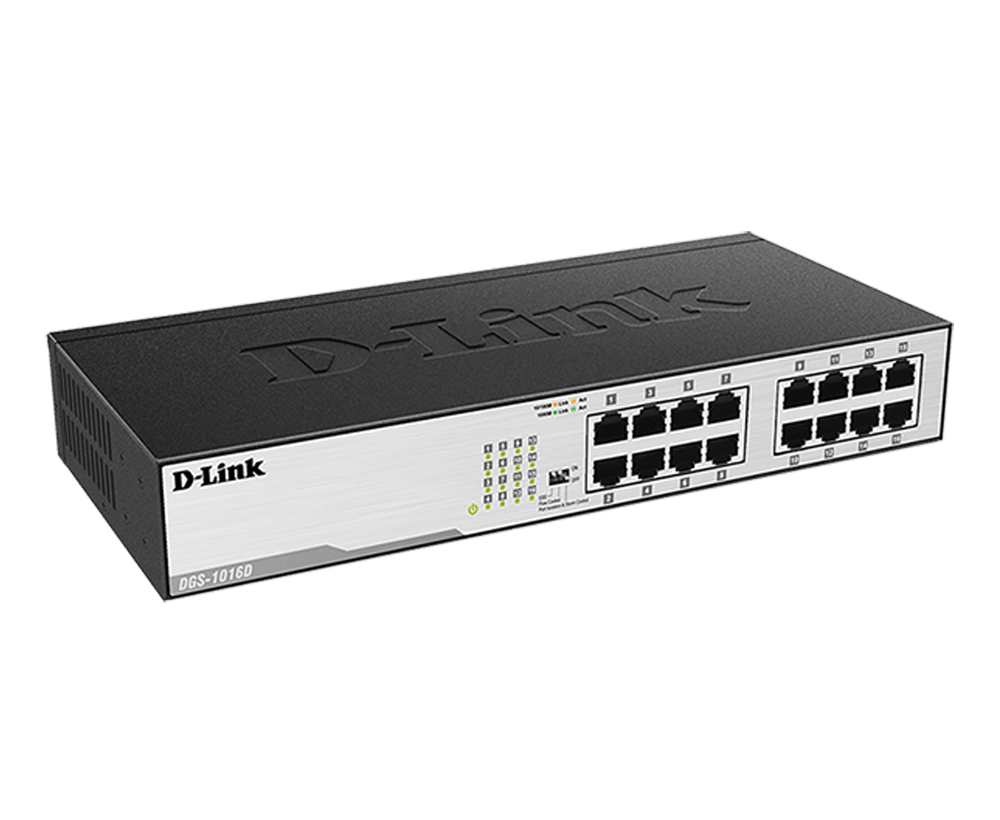

DLink DGS-1016D Gigabit 16 Port Switch
- Cable diagnostics troubleshooting
- 3-pin front panel DIP switch for real-time toggling Energy-efficient Ethernet (EEE), Flow Control, Port Isolation, and Storm Control
- Compact and durable housing, high port count, and fanless design for noise-free operation
Part# / SKU :
DGS-1016DProduct Warranty :
Three Years MFR Direct Wty
100% original guarantee
Specs
| Comply with RoHS 6 | Yes |
|---|---|
| Discharge | Air Discharge 8KV Contact Discharge 4kV |
| Power Saving | By Cable Length By Link Status |
| Protection | Surge/Lightning Protection (AC Power Inet) : 1kV Surge/Lightning Protection (All Ethernet Ports) : 1kV |
| Control | 802.3x Flow |
| Dimensions | 280 x 125 x 44 mm |
| Energy Efficiency Ethernet (EEE) | Yes |
| FAN | Fanless |
| Head-of-line (HOL) Blocking Prevention | Yes |
| Humidity | Operating: 0% - 95% RH Storage: 0% - 95% RH |
| Interfaces | 16 x 1000Base-T Auto MDI/MDIX |
| Jumbo Frame | 10,000 Bytes |
| MAC Address Table Size | 8192 |
| Maximum Forwarding Rate | 23.81Mpps |
| Maximum Heat Dissipation | 34.3 BTU/h |
| Maximum Power Consumption | 10.07W |
| MTBF | 1,882,372 hours |
| Packet Buffer Size | 512KBytes |
| Power Input | AC：100 ~ 240 V |
| Standby Power Consumption | 3.02W |
| Store & Forwarding Forwading | Yes |
| Switching Capacity | 32 Gbps |
| Temperature | Operating: 0 ~ 40 °C Storage: -10 - 70 ˚C |
| Weight | 1.023 kgs |
| Brand | DLink |
