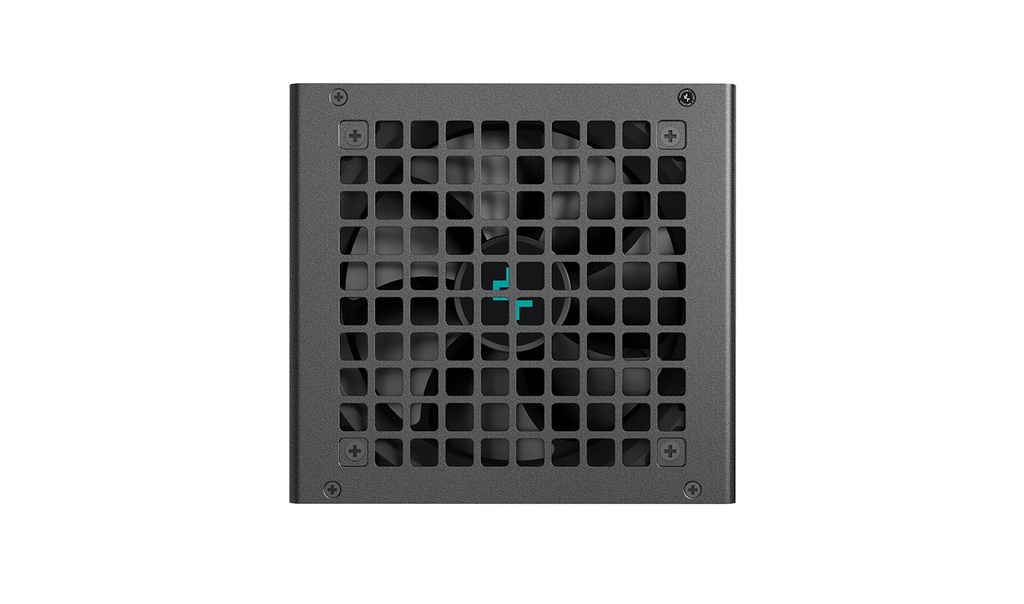

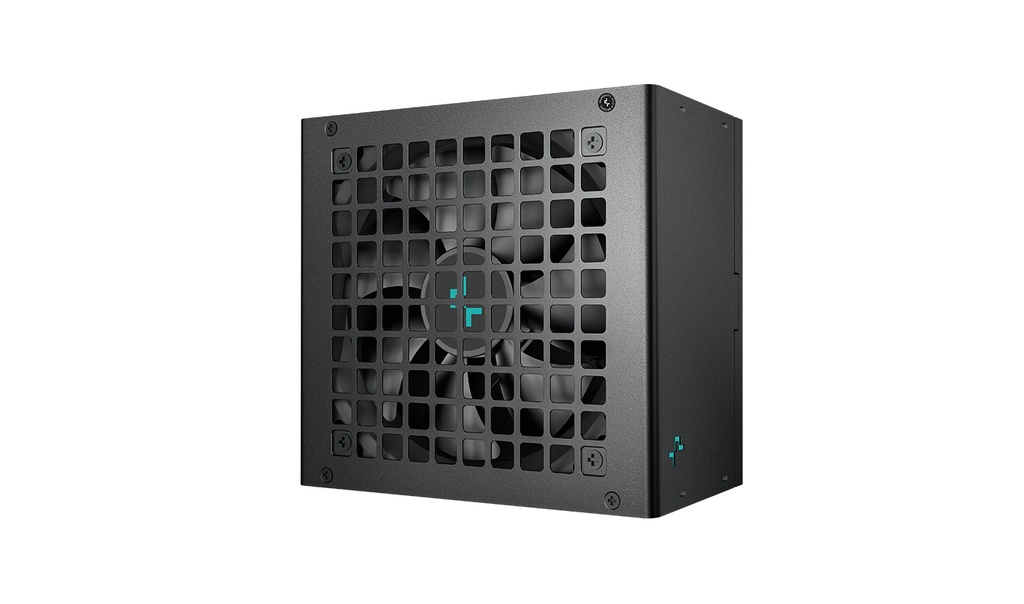

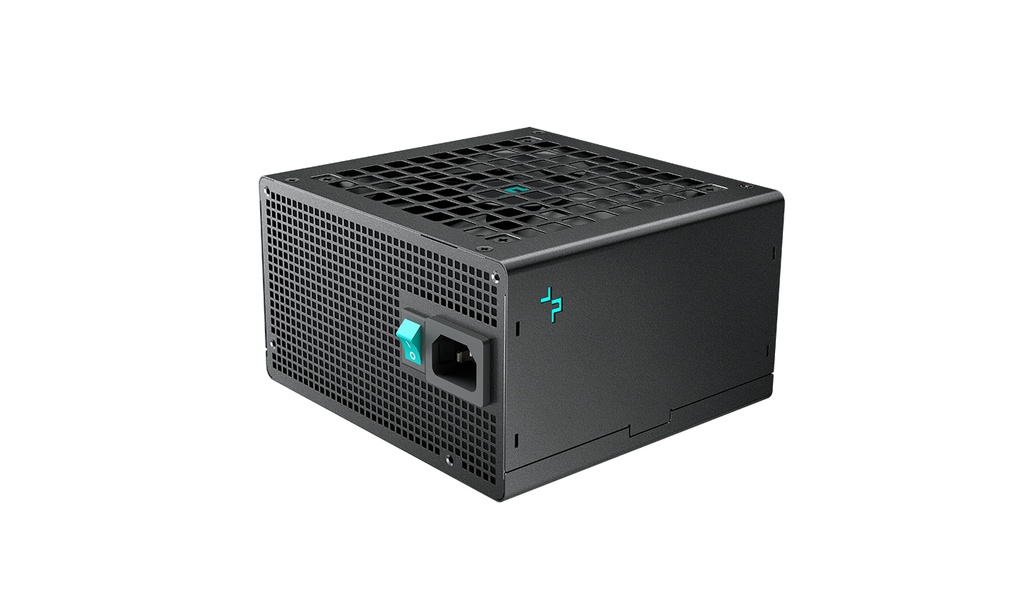

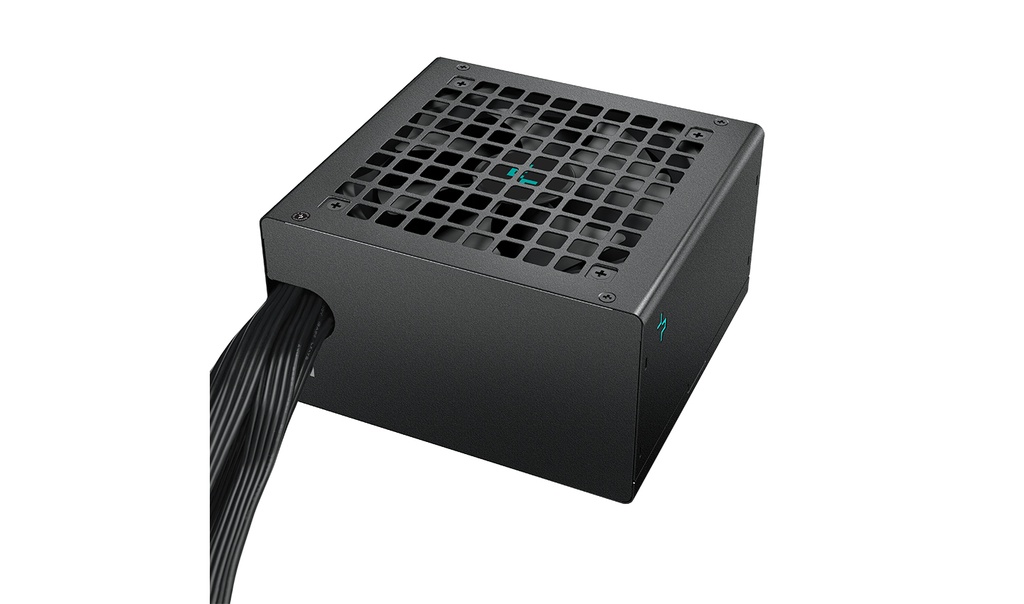

DeepCool PSU 550W Bronze 80 Plus PL550D
Part# / SKU :
R-PL550D-FC0B-IN-V2Barcode :
6933412721017DeepCool PSU 550W Bronze 80 Plus PL550D
Rated output: 550W. Efficiency certification: 80 Plus Bronze. Fixed output cables. Cooling: 120mm. Power conversion: Active PFC+DC to DC. Protection: OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO.
Technical specifications
| Type | ATX12V V3.1 |
|---|---|
| Product Dimensions | 150×140×86mm (W x L x H) |
| Efficiency certification | 80Plus Bronze/Cybenetics Silver/PPLP Silver/CQC II 级 |
| Fan Size | 120mm |
| Fan Bearing | HYB(Hydro Bearing) |
| Topology | Active PFC+DC to DC |
| Capacitors | Chinese Electrolytic Capacitors |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms |
| Efficiency | ≥85% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO |
| Operation Temperature | 0 - 40℃ |
| Regulatory | CE/FCC/CCC/RCM/EAC/ CAN ICES-003(B)/NMB-003(B) /TUV-RH |
| Erp Regulation | ErP 2014 |
| Environment Protection | WEEE/中国 RoHS/Triman/P65 |
| MTBF | 100,000 Hours |
| Modularity | Non-modular |
| Rated output power | 550W |
| AC input | 100-240VAC; 8-4A; 50-60Hz |
| Maximum output current | +3.3V:20A; +5V:20A; +12V:45.8A; -12V:0.3A; +5VSB:3A |
| Maximum combined wattage | +3.3V/+5V:100W; +12V:549.6W; -12V:3.6W; +5VSB:15W |
| ATX20+4 Pin Connectors | 1 |
| CPU4+4 Pin Connectors | 2 |
| PCI-e6+2 Pin Connectors | 2 |
| SATA Connectors | 11 |
| Peripheral4 Pin Connectors | 3 |
| 12V-2x6 Connectors | 1 |
| Power | 550W |
| Efficiency rating | 80 Plus Bronze |
| Modular | No |
