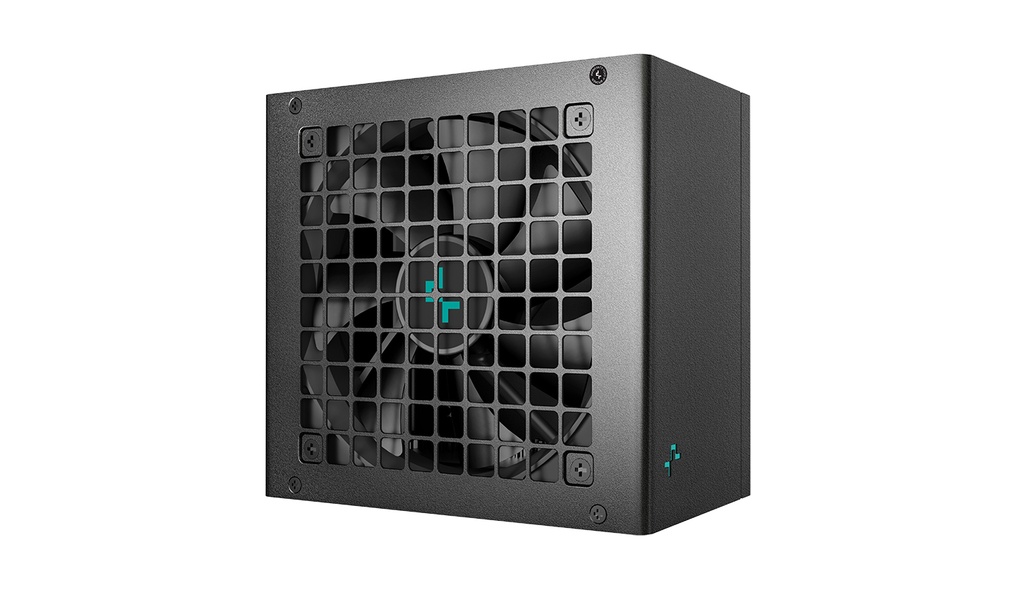

DeepCool PSU 750W Gold PN750M R-PN750M-FC0B-IN
DeepCool PN750M is a new power supply that meets the latest Intel ATX 3.1 and PCIe 5.1 standard. With a dedicated 12V-2x6, 5 EPS/PCIe ports, the PN750M provides stable power for a wide range of modern high-power components.
Part# / SKU :
R-PN750M-FC0B-INProduct Warranty :
10 Year limited WarrantyBarcode :
6933412719434DeepCool PSU 750W Gold PN750M R-PN750M-FC0B-IN
Rated output: 750W. Efficiency certification: 80 Plus Gold. Fully modular outputs allow the required cables to be connected. Cooling: 120mm. Power conversion: Active PFC + Full Bridge SRC LLC + DC to DC. Protection: OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO.
Technical specifications
| Type | ATX12V V3.1 |
|---|---|
| Product Dimensions | 150×140×86mm (W x L x H) |
| Efficiency certification | 80Plus Gold |

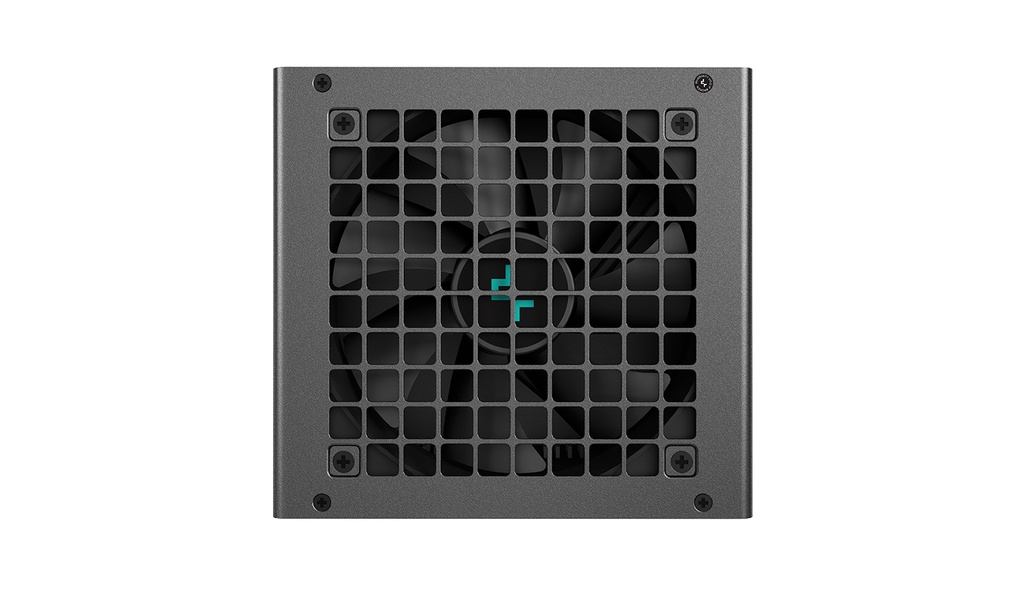

| Fan Size | 120mm |
| Fan Bearing | FDB (Fluid Dynamic Bearing) |
| Topology | Active PFC + Full Bridge SRC LLC + DC to DC |
| Capacitors | Japanese Bulk Capacitor |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms(80% Load) |
| Efficiency | ≥90% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO |
| Operation Temperature | 0 - 40℃ |
| Regulatory | CE/FCC/CCC/cTUVus/RCM/EAC/BIS/TUV-RH |
| Erp Regulation | ErP 2014 |
| Environment Protection | WEEE/中国 RoHS/Triman/P65 |
| MTBF | 100,000 Hours |
| Rated output power | 750W |

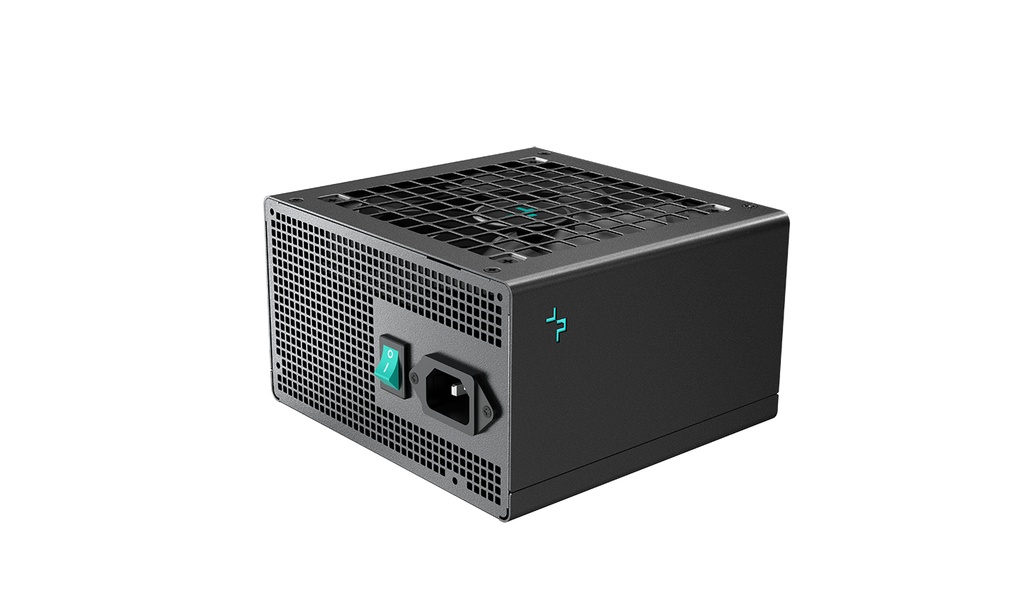

| AC input | 100-240VAC; 10-5A; 50-60Hz |
| Maximum output current | +3.3V:20A; +5V:20A; +12V:62.5A; -12V:0.3A; +5VSB:3A |
| Maximum combined wattage | +3.3V/+5V:110W; +12V:750W; -12V:3.6W; +5VSB:15W |

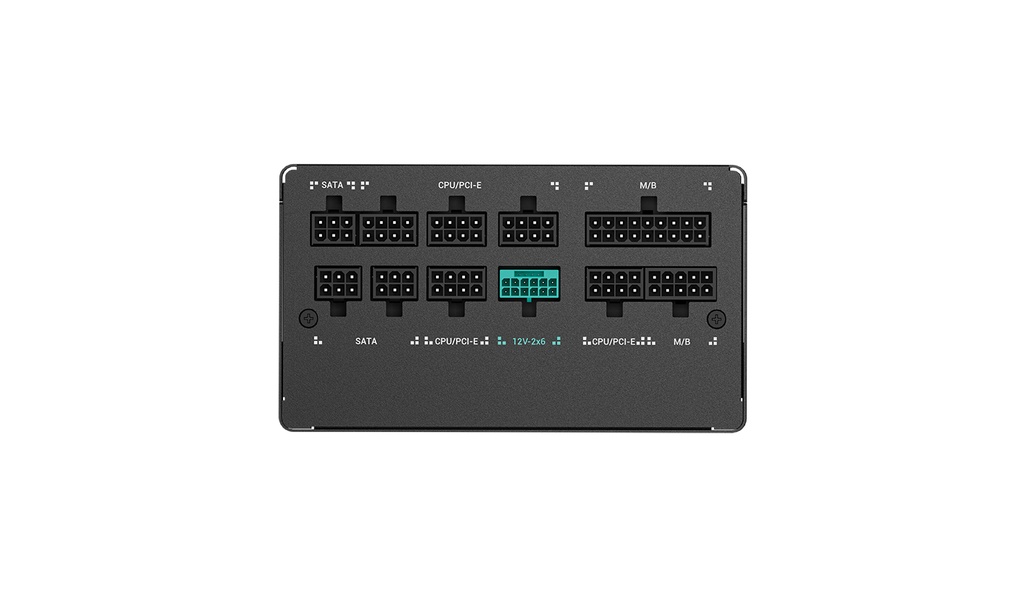

| Modularity | Fully modular |
| ATX20+4 Pin Connectors | 1 |
| CPU4+4 Pin Connectors | 2 |
| PCI-e6+2 Pin Connectors | 3 |
| SATA Connectors | 8 |
| Peripheral4 Pin Connectors | 2 |
| 12V-2x6 Connectors | 1 |
| Power | 750W |
| Efficiency rating | 80 Plus Gold |
| Modular | Yes (fully modular) |
