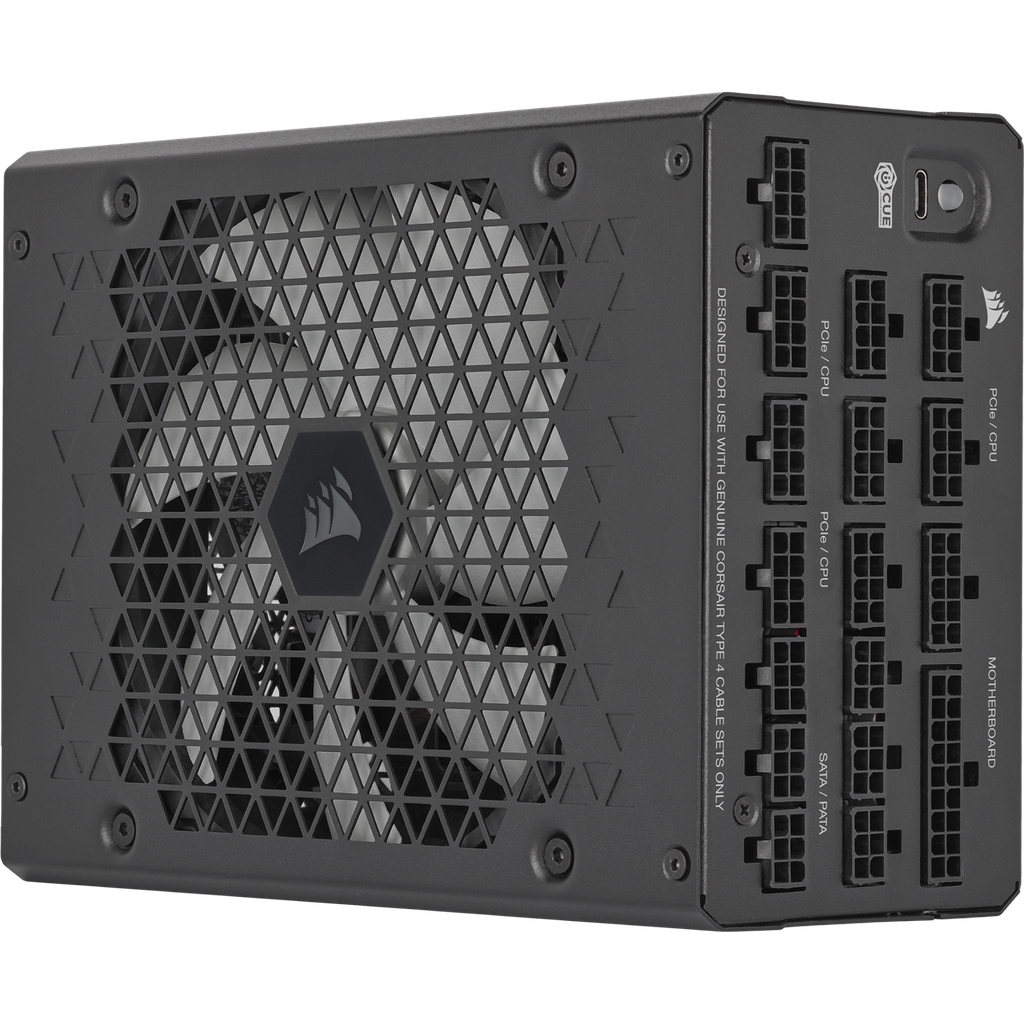

Corsair PSU HX1500i Platinum 1500W CP-9020309-IN
Corsair PSU HX1500i Platinum 1500W CP-9020309-IN
Rated output: 1500W. Efficiency certification: Cybenetics Platinum. Fully modular outputs allow the required cables to be connected. Cooling: 140mm.
Technical specifications
| Cybenetics Efficiency | Platinum |
|---|---|
| Cybenetics Noise | A- |
| EPS12V Version | 2.92 |
| PATA Connector | 6 |
| SATA Connector | 8 |
| Fan Bearing Technology | Fluid Dynamic Bearing |
| Modular | Fully |
| Cable Type | Type 4 |
| Zero RPM Mode | Yes |
| PSU Form Factor | ATX |
| Single Multiple 12V Rail Toggl | Yes |
| Multi GPU Ready | Yes |
| Fan Size MM | 140mm |
| Continuous Power W | 1500 Watts |
| ATX Connector | 1 |
| Continuous Output Rated Temp C | 50°C |
| ATX12V Version | 3.1 |
| MTBF Hours | 100,000 hours |
| Electrical output and cable tables | MODEL | RPS0132PART NO. | 75–005686AC INPUT RATINGAC INPUT | 100–240VINPUT CURRENT | 15A–9AFREQUENCY | 47~63Hz| MAX LOAD MAX OUTPUT+3.3V | 25A 150W+5V | 25A+12V | 125A 1500W+5VSB | 3.5A 17.5WTOTAL POWER | 1200W (100V - 115V) 1500W (115V - 240V)QTY | CABLE | CONNECTORS PER CABLE | TOTAL CONNECTORS | CONNECTOR SPACING | TOTAL LENGTH | CABLE TYPEQTY 1 | CABLE Modular ATX 24-Pin | CONNECTORS PER CABLE 1 | TOTAL CONNECTORS 1 | CONNECTOR SPACING - | TOTAL LENGTH 610mm (± 10mm) | CABLE TYPE DebossedQTY 2 | CABLE EPS / ATX 12V 8-Pin (4+4) | CONNECTORS PER CABLE 1 | TOTAL CONNECTORS 2 | CONNECTOR SPACING - | TOTAL LENGTH 750mm (± 10mm) | CABLE TYPE DebossedQTY 2 | CABLE 2x8-Pin to 12V-2x6 Cable | CONNECTORS PER CABLE 1 | TOTAL CONNECTORS 2 | CONNECTOR SPACING - | TOTAL LENGTH 650mm (± 10mm) | CABLE TYPE DebossedQTY 5 | CABLE PCIe 8-Pin (6+2) | CONNECTORS PER CABLE 1 | TOTAL CONNECTORS 5 | CONNECTOR SPACING - | TOTAL LENGTH 650mm (± 10mm) | CABLE TYPE DebossedQTY 2 | CABLE SATA (4 Straight SATA) | CONNECTORS PER CABLE 4 | TOTAL CONNECTORS 8 | CONNECTOR SPACING 505mm, 115mm, 115mm, 115mm | TOTAL LENGTH 850mm (± 10mm) | CABLE TYPE DebossedQTY 2 | CABLE PATA (3 Straight PATA) | CONNECTORS PER CABLE 3 | TOTAL CONNECTORS 6 | CONNECTOR SPACING 550mm, 100mm, 100mm | TOTAL LENGTH 750mm (± 10mm) | CABLE TYPE DebossedQTY 1 | CABLE USB (Type-C) to 10-1-Pin | CONNECTORS PER CABLE 1 | TOTAL CONNECTORS 1 | CONNECTOR SPACING - | TOTAL LENGTH 525mm (± 25mm) | CABLE TYPE Round |
| Rated output voltage conditions | 1200W at100-115V; 1500W at115-240V |
| Power | 1500W |
| Efficiency rating | Cybenetics Platinum |
