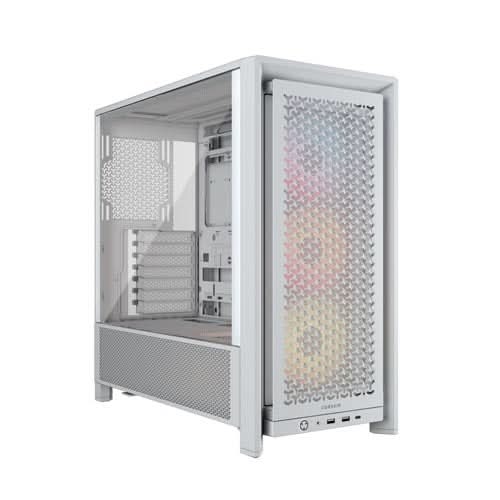

Corsair Case FRAME 4000D RS White CC-9011297-WW
Part# / SKU :
CC-9011297-WWProduct Warranty :
1 Year Warranty From ManufacturerCorsair Case FRAME 4000D RS White CC-9011297-WW
Supported motherboard formats: E-ATX, ATX, Micro-ATX, Mini-ITX. Maximum stated graphics-card clearance is 430mm.
Technical specifications
| Case Supported | Mini-ITX | MicroATX | ATX | E-ATX (305mm x 277mm) |
|---|---|
| Material | Steel,Tempered Glass,3D-Y Airflow Steel,Plastic |
| Case Size | Mid-Tower |
| Radiator Compatibility | 120mm,140mm,240mm,280mm,360mm |
| Compatible Liquid Coolers | H60,H100,H115,H150,NAUTILUS,TITAN |
| Maximum CPU Cooler Height | 170mm |
| Maximum PSU Length | 220mm |
| Case Front IO | (1x) USB 3.2 Gen 2 Type-C, (2x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out |
| Maximum GPU Length | 430mm |
| Weight | 10kg |
| Case Expansion Slots | 7 Horizontal or 3 Vertical |
| Case Power Supply | ATX |
| Radiator Support - Top | 360mm, 280mm, 240mm |
| Radiator Support - Front | 360mm, 280mm, 240mm |
| Radiator Support - Bottom | None |
| Radiator Support - Side | 360mm, 280mm, 240mm |
| Radiator Support - Rear | 140mm, 120mm |
| Fan Support - Top | 3x 120mm, 2x 140mm |
| Fan Support - Front | 3x 120mm, 2x 140mm, 2x 200mm |
| Fan Support - Bottom | 2x 120mm |
| Fan Support - Side | 3x 120mm, 2x 140mm |
| Fan Support - Rear | 1x 120mm, 1x 140mm |
| Front IO Motherboard Connections | 1x HD Audio; 1x USB 3.2 Gen1; 1x USB-3.2 Gen2 Type-E; 1x F_PANEL |
| Reverse Connector Motherboard Support | Yes |
| Included Fans | RS ARGB Series |
| Dust Filtration | Yes |
| Cable Routing Space | 37mm |
| RapidRoute Included | No |
| Right Side Panel | Steel |
| Left Side Panel | Tempered Glass |
| Vertical Mount Support | Supported (Riser Card Sold Separately) |
| Case Form Factor | Mid-Tower |
| Power Supply Support | ATX |
| Case Type | Mid-Tower |
| Pre-Installed Fans | 3 x 120mm ARGB |
