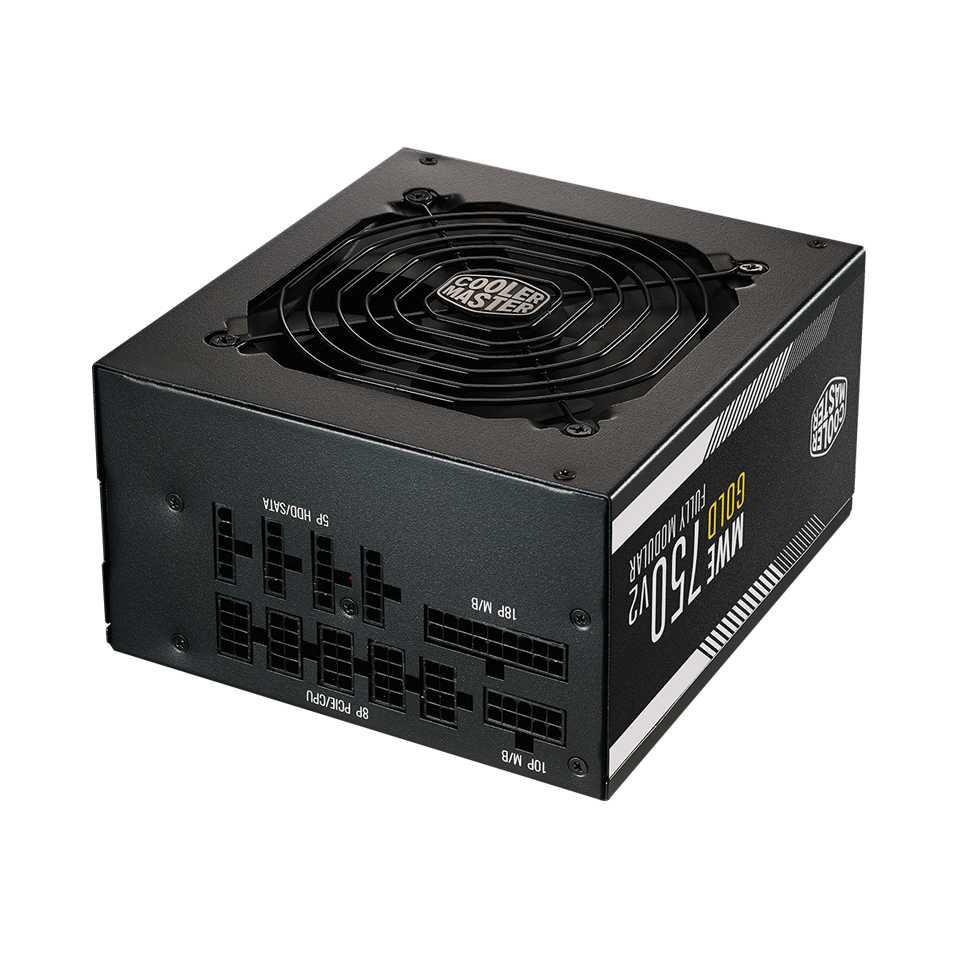

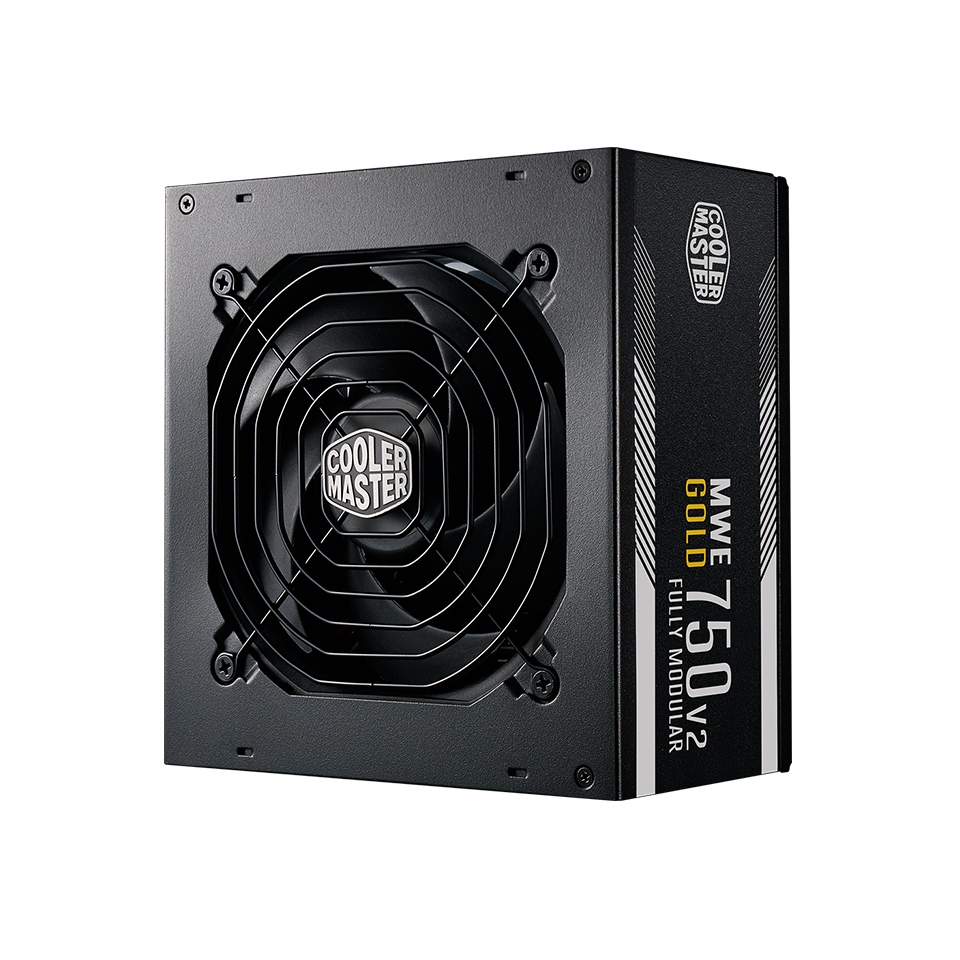

CM PSU MWE Gold V2 750W ATX3.1 Fully Modular MPE-7501-AFAAG-3EIN
Product Warranty :
Five Year WarrantyBarcode :
4719512152607CM PSU MWE Gold V2 750W ATX3.1 Fully Modular MPE-7501-AFAAG-3EIN
Rated output: 750W. Efficiency certification: 80 Plus Gold. Fully modular outputs allow the required cables to be connected. Cooling: 120mm. Protection: UVP / OVP / OPP / OTP / SCP / OCP.
Technical specifications
| Model | MPE-7501-AFAAG-3E** |
|---|---|
| ATX Version | ATX 12V Ver. 3.1 |
| PFC | Active PFC |
| Input Voltage | 100-240V |
| Input Current | 10-5A |
| Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 160 x 150 x 86 mm |
| Fan Size | 120mm |
| Fan Bearing | HDB |
| Efficiency | ≥90% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Gold |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0-50°C |
| Power Good Signal | 100 - 150 ms |
| Hold Up Time | ≥ 16ms |
| MTBF | >100,000 Hours |
| Protections | UVP / OVP / OPP / OTP / SCP / OCP |
| Regulatory | TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI, BIS, UKCA |

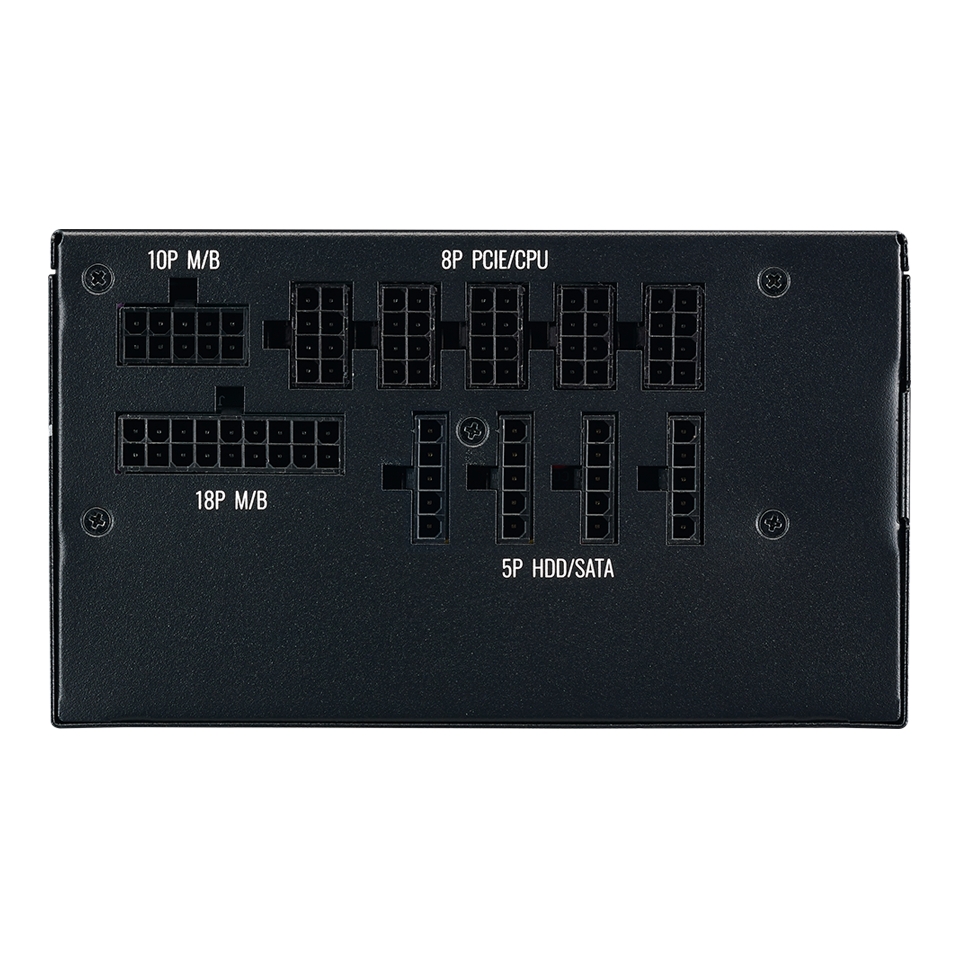

| ATX 24 Pin Connectors | 1 |
| EPS 4+4 Pin Connectors | 1 |
| EPS 8 Pin Connector | 1 |
| SATA Connectors | 12 |
| Peripheral 4 Pin Connectors | 4 |
| PCI-e 6+2 Pin Connectors | 4 |
| 12V-2x6 Connectors | 1 (1 to 3) |
| Modular | Fully Modular |
| Form Factor | ATX |
| 80 Plus Efficiency | Gold |
| Watts | 750W |

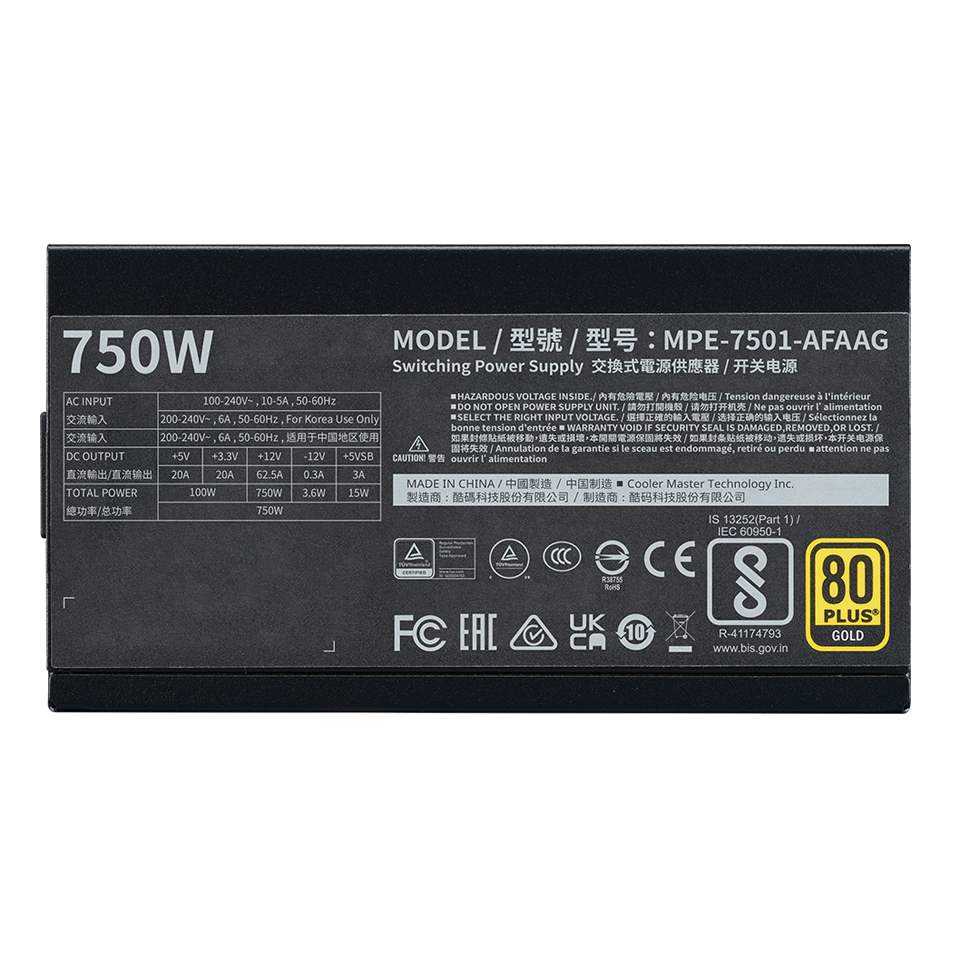

| Maximum output current | +3.3V:20A; +5V:20A; +12V:62.5A; -12V:0.3A; +5VSB:3A |
| Maximum combined wattage | +3.3V/+5V:100W; +12V:750W; -12V:3.6W; +5VSB:15W |
| Power | 750W |
| Efficiency rating | 80 Plus Gold |
