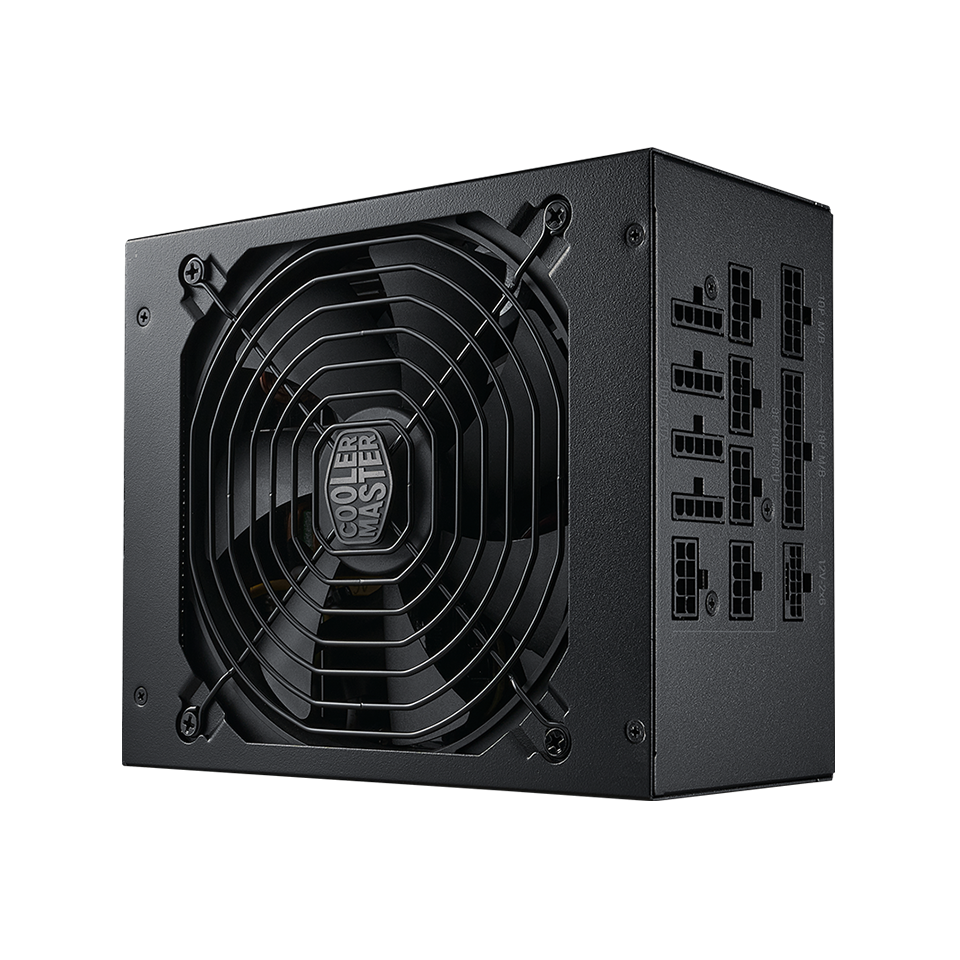

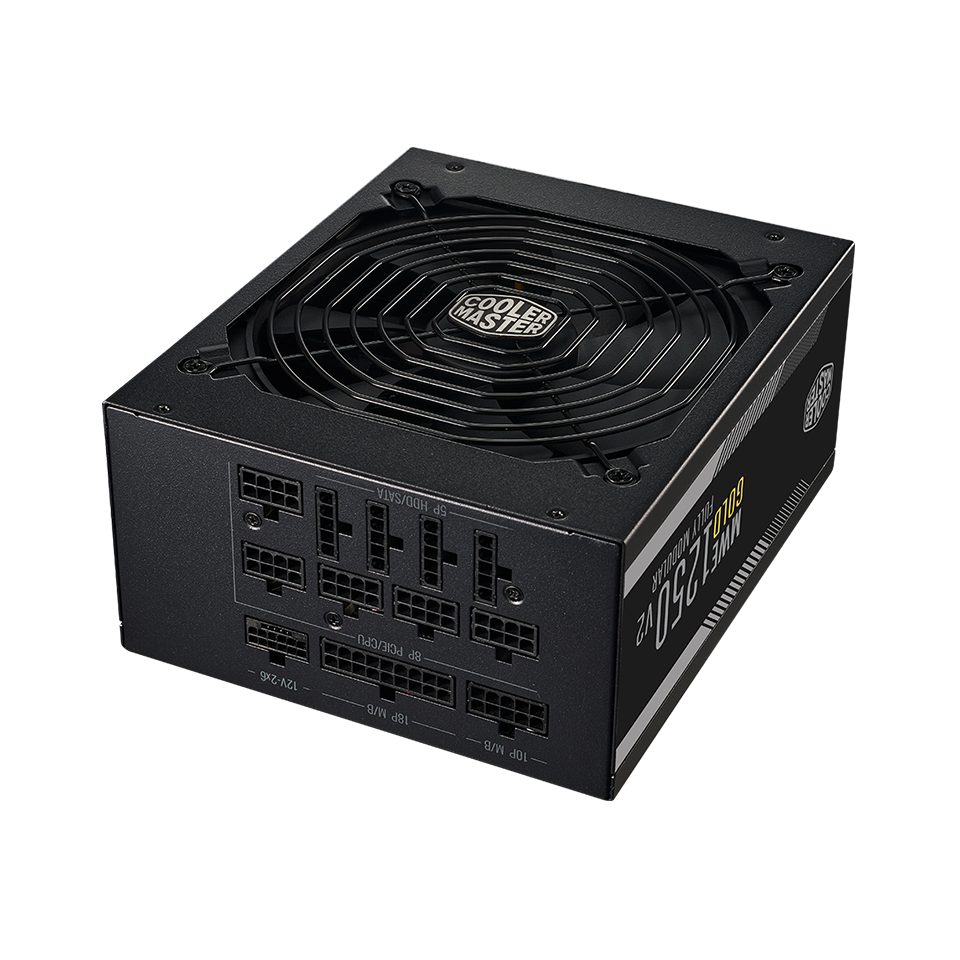

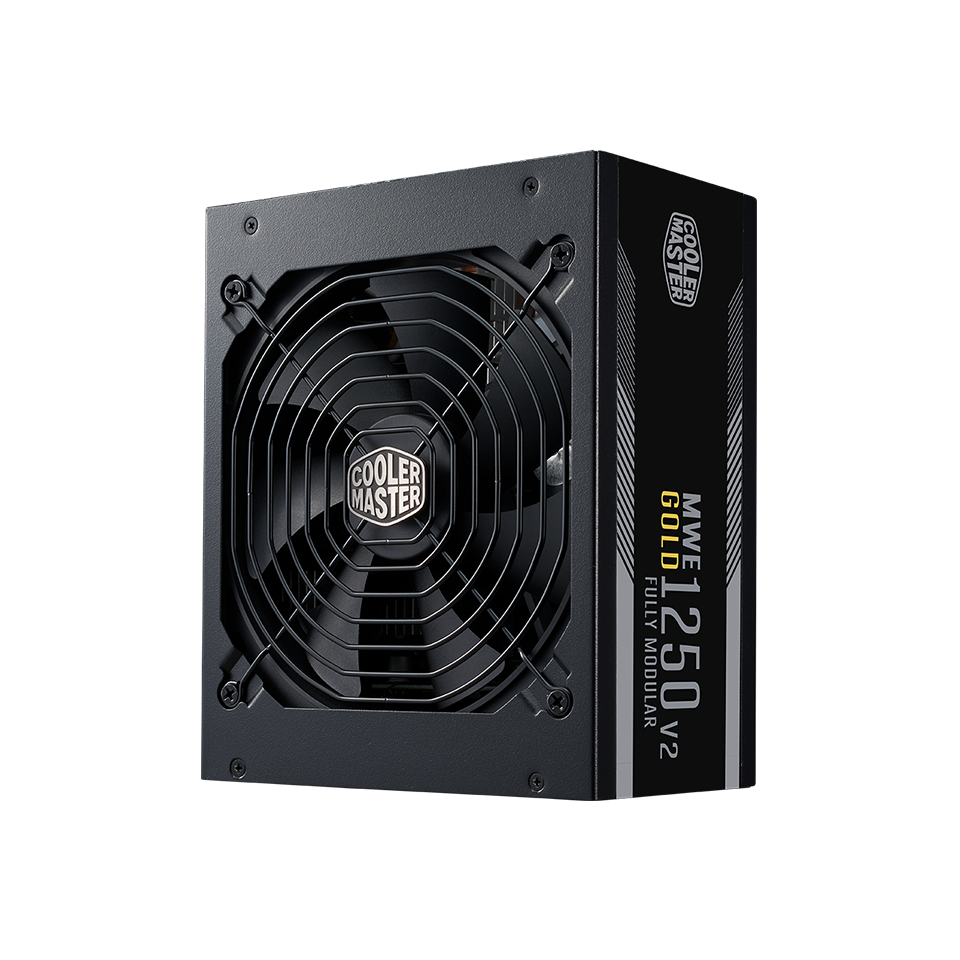

CM PSU MWE Gold V2 1250W ATX 3.1 MPE-C501-AFCAG-3EIN
Part# / SKU :
MPE-C501-AFCAG-3EINProduct Warranty :
Ten Year WarrantyCM PSU MWE Gold V2 1250W ATX 3.1 MPE-C501-AFCAG-3EIN
Rated output: 1250W. Efficiency certification: 80 Plus Gold. Fully modular outputs allow the required cables to be connected. Cooling: 140mm. Protection: OVP / OPP / SCP / OCP / UVP / OTP / Inrush Protection.
Technical specifications
| Model | MPE-C501-AFCAG-3E** |
|---|---|
| ATX Version | ATX Rev. 3.1 |
| PFC | Active PFC |
| Input Voltage | 100-240V |
| Input Current | 15-7A |
| Input Frequency | 50-60Hz |
| Dimensions | 180 x 150 x 86 mm |
| Fan Size | 140mm |
| Fan Bearing | Two Ball Bearing |
| Efficiency | ≥90% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Gold |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0-50°C |
| Power Good Signal | 100 - 150 ms |
| Hold Up Time | ≥16ms at 100% Load |
| MTBF | >100,000 Hours |
| Protections | OVP / OPP / SCP / OCP / UVP / OTP / Inrush Protection |
| Regulatory | TUV, cTUVus, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, BIS |
| ATX 24 Pin Connectors | 1 |
| EPS 4+4 Pin Connectors | 1 |
| EPS 8 Pin Connector | 1 |
| SATA Connectors | 12 |
| Peripheral 4 Pin Connectors | 4 |
| PCI-e 6+2 Pin Connectors | 3 |
| 12V-2x6 Connectors | 1 |
| Modular | Fully Modular |
| 80 Plus | Gold |
| Form Factor | ATX |
| Watts | 1250W |

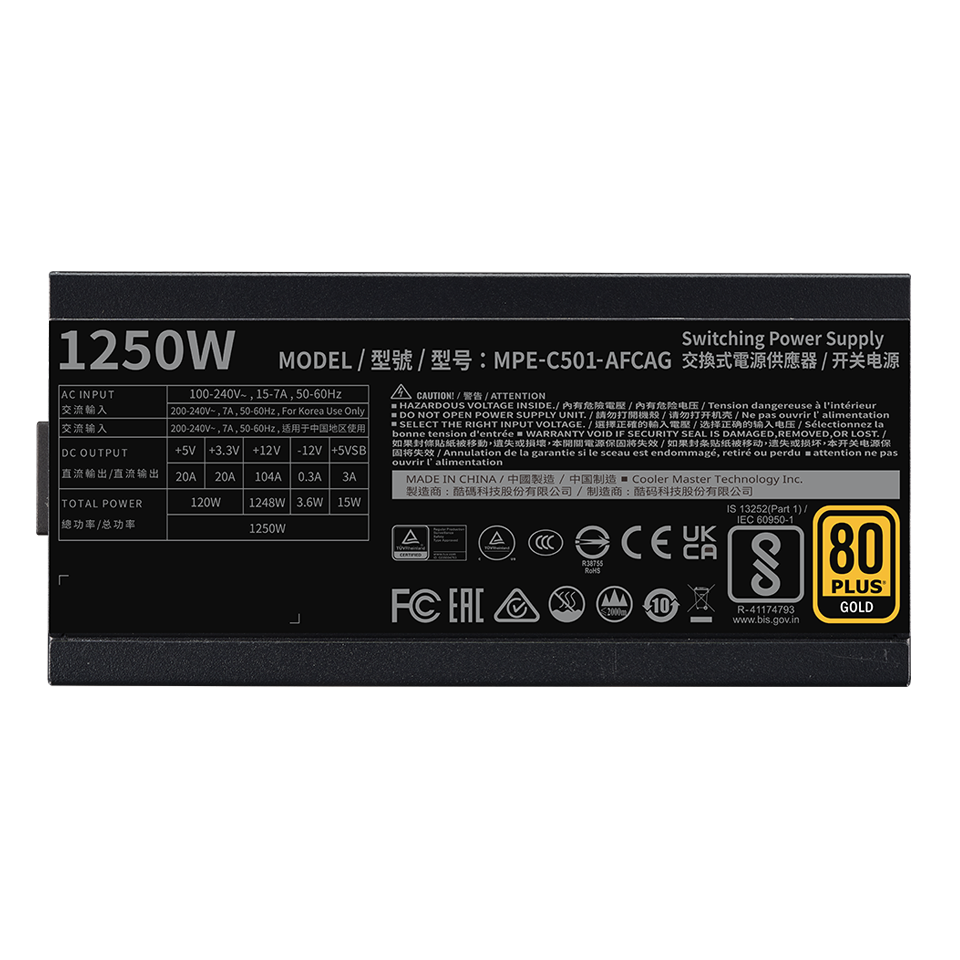

| Maximum output current | +3.3V:20A; +5V:20A; +12V:104A; -12V:0.3A; +5VSB:3A |
| Maximum combined wattage | +3.3V/+5V:120W; +12V:1248W; -12V:3.6W; +5VSB:15W |
| Connector cable lengths | ATX24pin/EPS4+4/EPS8/12V-2x6:650mm; PCIe6+2:550mm; SATA/peripheral:500+120+120+120mm |
| Fan control | Zero RPM and smart thermal control |
| Capacitors | Japanese capacitors |
| Protective coating | Conformal coating |
| Power | 1250W |
| Efficiency rating | 80 Plus Gold |
