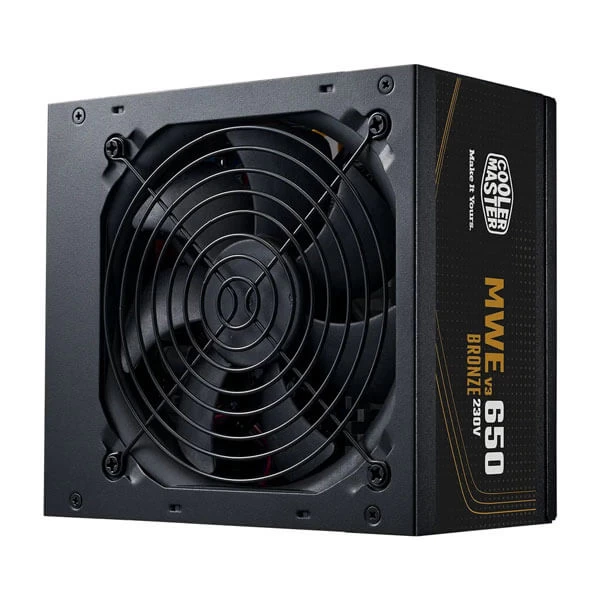

CM PSU MWE BRONZE V3 650W MPE-6501-ACABW-3BIN
Part# / SKU :
MPE-6501-ACABW-3BINBarcode :
4719512145272CM PSU MWE BRONZE V3 650W MPE-6501-ACABW-3BIN
Rated output: 650W. Efficiency certification: 80 Plus Bronze. Fixed output cables. Cooling: 120mm. Protection: UVP / OVP / OPP / OTP / SCP.
Technical specifications
| Model | MPE-6501-ACABW-3B |
|---|---|
| ATX Version | ATX 12V Ver. 3.1 |
| PFC | Active PFC |
| Input Voltage | 200-240V |
| Input Current | 5A |
| Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 140 x 150 x 86 mm / 5.5 x 5.9 x 3.4 inch |
| Fan Size | 120mm |
| Fan Bearing | HDB |
| Efficiency | >88% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Bronze EU 230V |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0-40°C |
| Power Good Signal | 100 - 150 ms |
| Hold Up Time | >16ms |
| MTBF | >100,000 Hours |
| Protections | UVP / OVP / OPP / OTP / SCP |
| Regulatory | TUV, CE, FCC, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (based on region's request.) |
| ATX 24 Pin Connectors | 1 |
| EPS 8 Pin / 4+4 Pin Connectors | 2 |
| SATA Connectors | 6 |
| Peripheral 4 Pin Connectors | 3 |
| PCI-e 6+2 Pin Connectors | 4 |
| Modular | Non Modular |
| 80 Plus Efficiency | Bronze |
| Form Factor | ATX |
| Watts | 650W |
| Maximum output current | +3.3V /+5V /+12V:19A /19A /54A; -12V:0.3A; +5VSB:3A |
| Maximum combined wattage | +3.3V/+5V:120W; +12V:648W; -12V:3.6W; +5VSB:15W |
| MTBF conditions | >100,000 hours at25 degrees C ambient |
| Connector cable lengths | ATX24pin:500mm; EPS8/4+4:550+120mm; SATA/peripheral:400+150+150mm; PCIe6+2:500+120mm |
| Power | 650W |
| Efficiency rating | 80 Plus Bronze |
