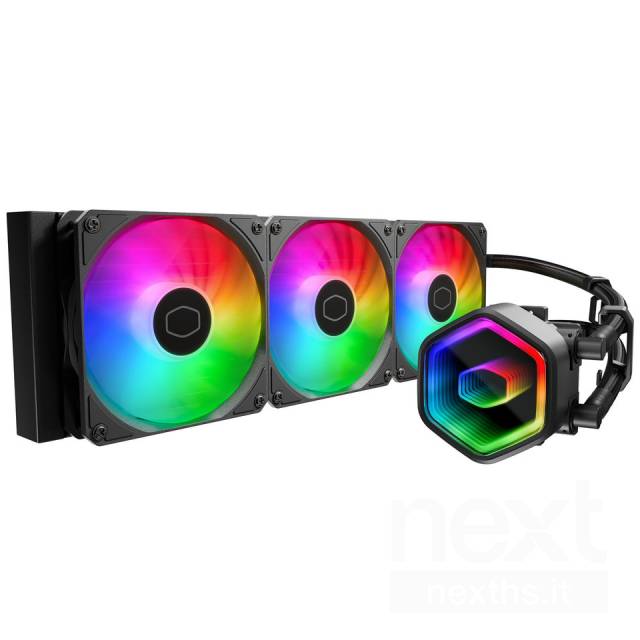

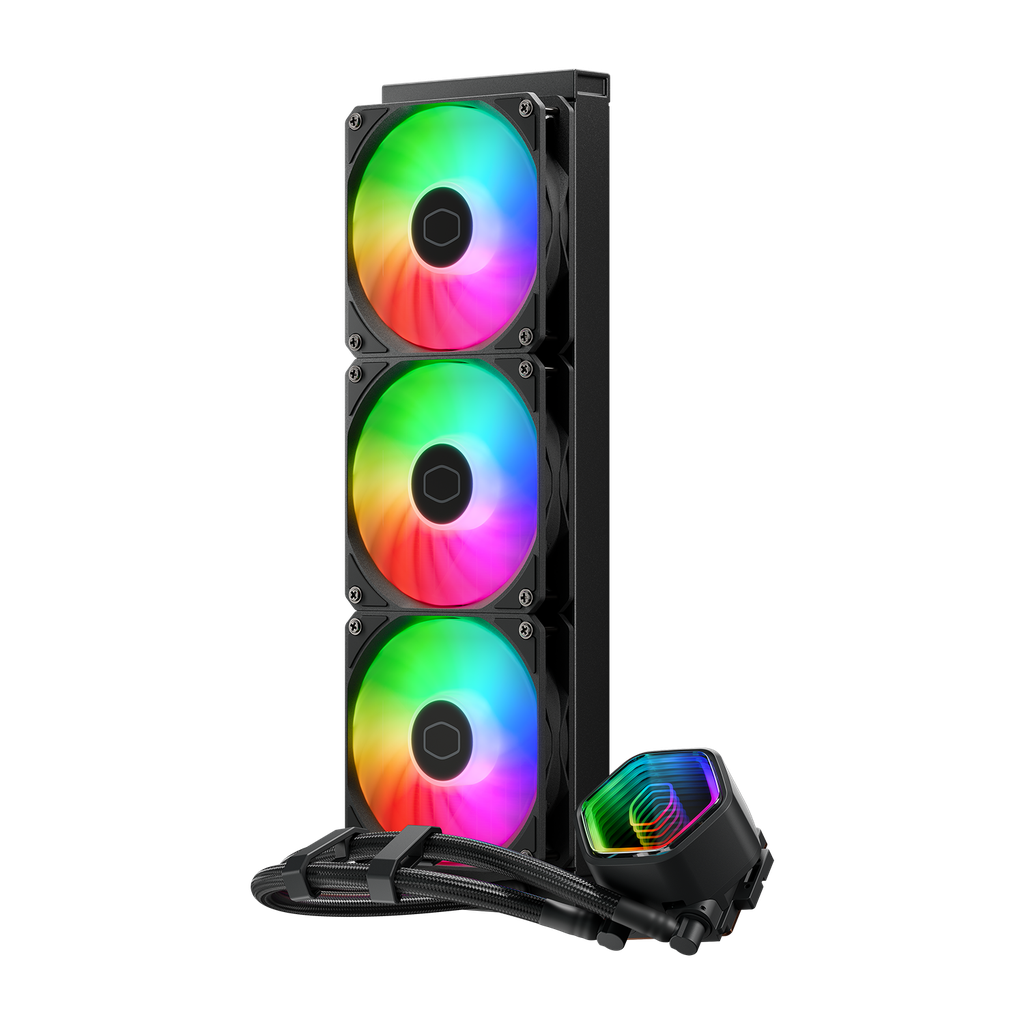

CM Liquid Cooler 360 Core II ARGB MLW-D36M-A18PA-R1 Black
Part# / SKU :
MLW-D36M-A18PA-R1Product Warranty :
3 Year Warranty From ManufacturerBarcode :
4719512154854Cooler Master Liquid Cooler 360 Core II ARGB MLW-D36M-A18PA-R1 Black
An all-in-one liquid CPU cooler with a 360 mm radiator. The stated fan speed is 650-1750 RPM ± 10%. The primary cooling configuration includes 3 fans. Fan lighting: ARGB. Check the stated dimensions and socket or connection requirements against your build.
Technical specifications
| Product Number | MLW-D36M-A18PA-R1 |
|---|---|
| Color | Black |
| CPU Socket | Intel® LGA 1851 / 1700 / 1200 / 1156 / 1155 / 1151 / 1150 Socket |
| Radiator Material | Aluminum |
| Radiator Dimensions | 394 x 119.2 x 27.2 mm / 15.5 x 4.7 x 1.1 inch |
| Pump Dimensions | 84.5 x 78.5 x 59.4 mm / 3.3 x 3.1 x 2.3 inch |
| Pump Profiles | Addressable RGB |
| Pump Speed | 2800 ±10% RPM |
| Pump MTTF | >35,000 Hours |
| Pump Noise Level | 25 dBA (Max) |
| Pump Rated Voltage | 12 VDC |
| Pump Connector | 3-Pin ARGB + 4-Pin PWM |
| Tube Length | 400 mm |
| Fan Dimensions (L x W x H) | 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch |
| Fan LED | Addressable RGB |
| Fan Quantity | 3 PCS |
| Fan Speed | 650-1750 RPM ± 10% |
| Fan Airflow | 122.4 m³/h (71.9 CFM) (Max) |
| Fan Air Pressure | 1.86 mmH₂O (Max) |
| Fan MTTF | >40,000 Hours |
| Fan Noise Level | 27.2 dBA (Max) |
| Fan Bearing Type | Rifle Bearing |
| Fan Connector | 7-Pin PWM + ARGB |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.26 A |
| Fan Safety Current | 0.37 A |
| Fan Power Consumption | 3.12W |
| Warranty | 5 years |
| Cooler Type | Liquid Cooler |
| Series | MasterLiquid Lite |
| Type | Liquid |
| Radiator Size | 360 mm |
| Number of Fans | 3 |
| Fan Lighting | ARGB |
| Cooler Brand | Cooler Master |
