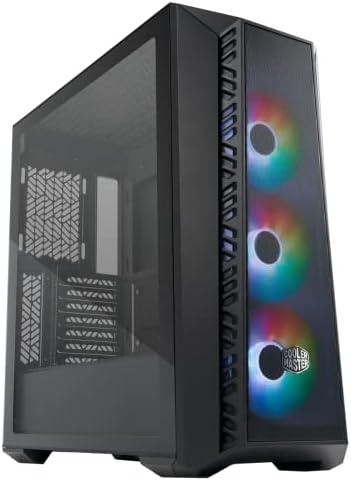

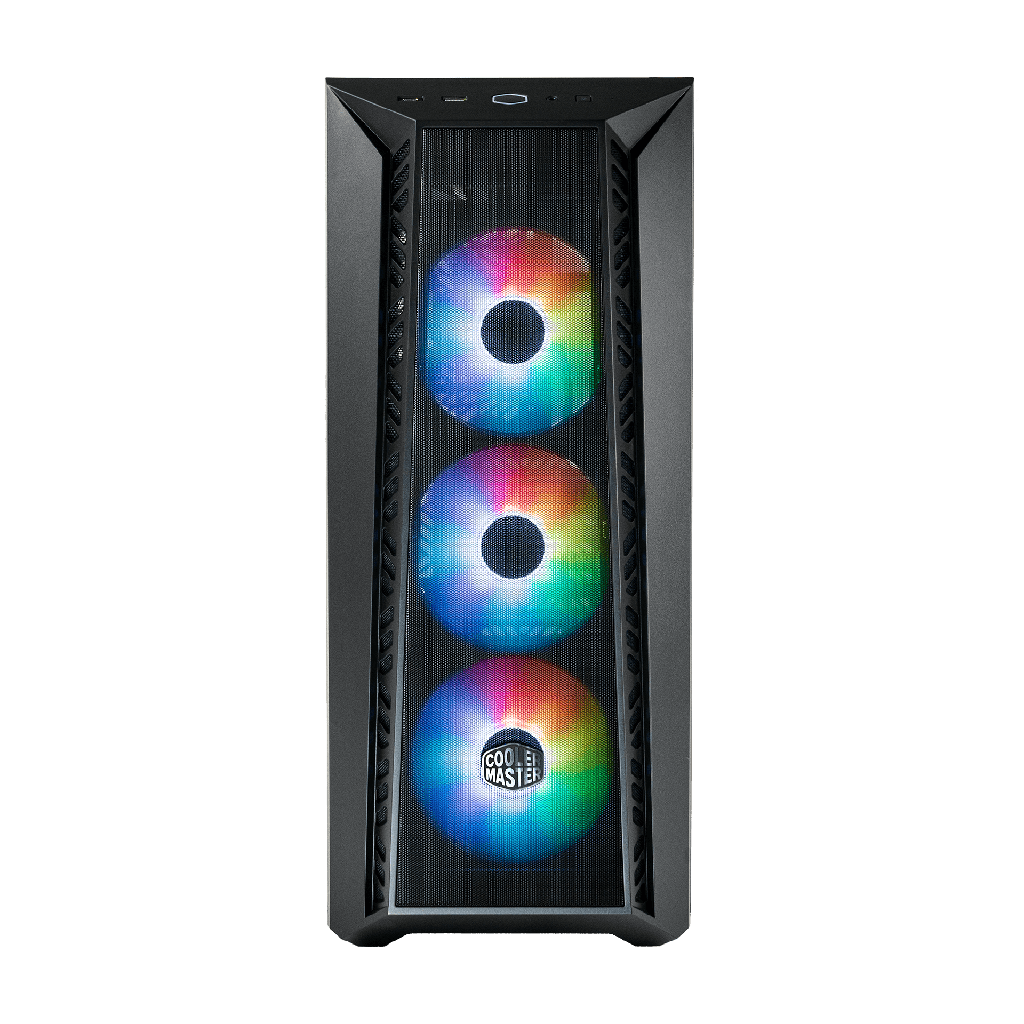

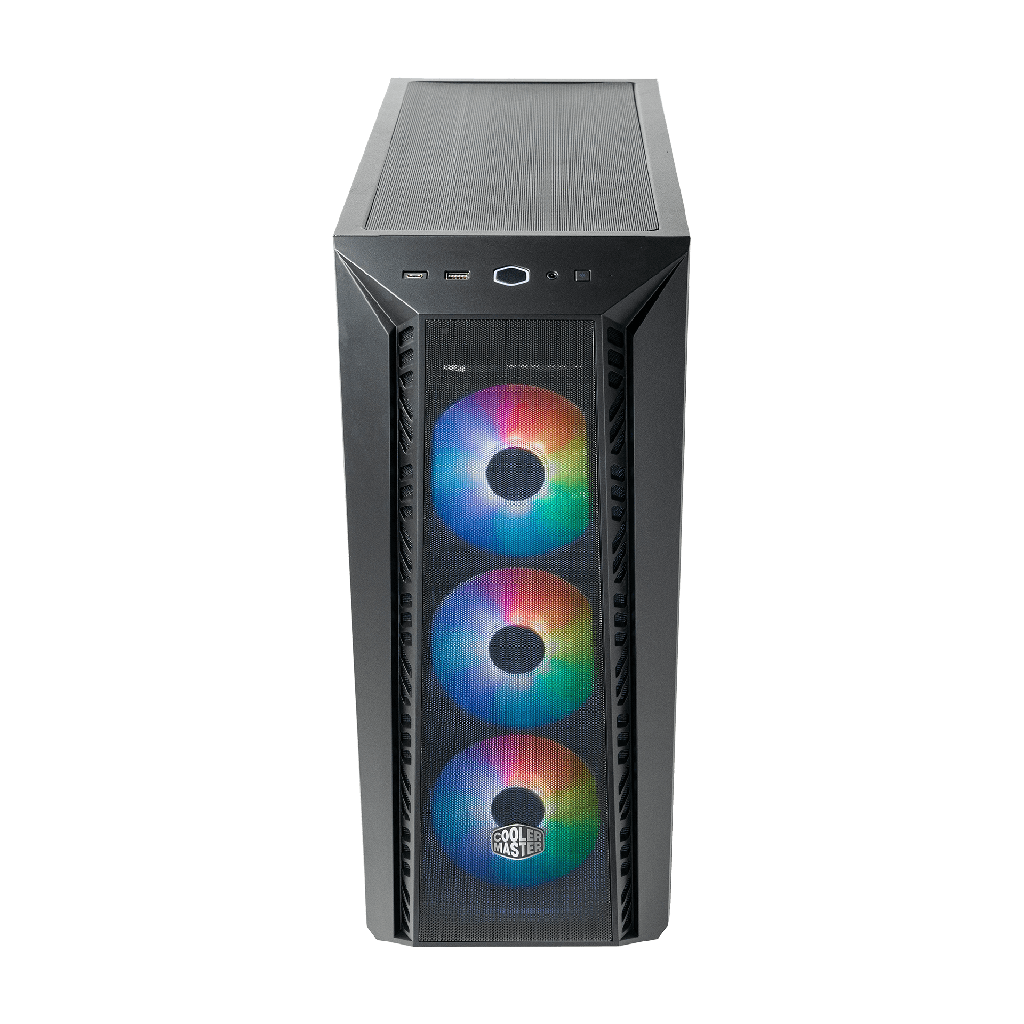

CM Case MB 520 Mesh Black MB520-KGNN-S00
Part# / SKU :
MB520-KGNN-S00Product Warranty :
2 Year Warranty From ManufacturerCM Case MB 520 Mesh Black MB520-KGNN-S00
Supported motherboard formats: E-ATX, ATX, Micro-ATX, Mini-ITX.
Technical specifications
| Model Number | MB520-KGNN-S00 |
|---|---|
| Materials - Exterior | Mesh, Steel, ABS Plastic, Tempered Glass |
| Materials - Left Side Panel | Tempered Glass |
| Dimensions (L x W x H) | 499 x 210 x 498mm (Incl. Protrusions), 430 x 210 x 479mm (Body size) |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX, SSI-CEB, E-ATX* (*up to 12" x 10.7" motherboards, may impact cable management feature) |
| Expansion Slots | 7 |
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 3 |
| I/O Panel - USB Ports | 1x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2 Type C |
| I/O Panel - Audio In / Out | 1x 3.5mm Headset Jack (Audio+Mic) |
| I/O Panel - Other | 1x Reset/ARGB button |
| Included Accessories | ARGB Fans Hub |
| Pre-installed Fans - Top | N/A |
| Pre-installed Fans - Front | 3x CF120 ARGB |
| Pre-installed Fans - Rear | N/A |
| Fan Support - Top | 3x 120mm, 2x 140mm |
| Fan Support - Front | 3x 120mm, 2x 140mm |
| Fan Support - Rear | 1x 120mm |
| Radiator Support - Top | 120 / 140 / 240 / 280 / 360mm (recommended maximum thickness - 55mm) |
| Radiator Support - Front | 120 / 140 / 240 / 280 / 360mm |
| Radiator Support - Rear | 120mm |
| Clearance - CPU Cooler | 165mm |
| Clearance - PSU | 200mm (Recommended up to 170mm) |
| Clearance - GFX | 410mm |
| Dust Filters | Front, Top, Bottom |
| Power Supply Support | ATX |
| Size | Mid Tower |
| Series | MasterBox Series |
| Back Connector Motherboard Support | No |
| Case Form Factor | Mid-Tower |
| Maximum GPU Length | 410 mm |
