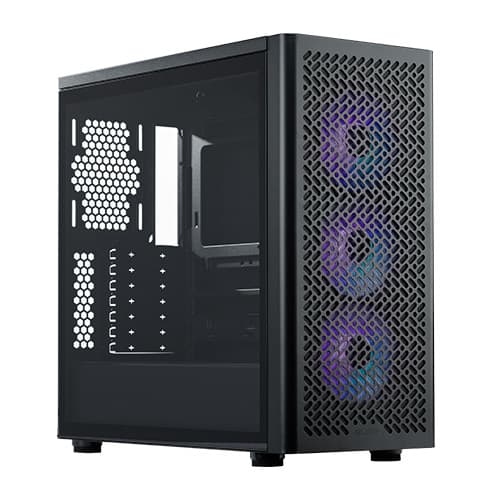

CM Case Elite 502 Black E502-KGNN-S00
Part# / SKU :
E502-KGNN-S00Product Warranty :
One Year WarrantyCM Case Elite 502 Black E502-KGNN-S00
Supported motherboard formats: E-ATX, ATX, Micro-ATX, Mini-ITX.
Technical specifications
| Model Number | E502-KGNN-S00 |
|---|---|
| Materials - Exterior | Steel |
| Materials - Right Side Panel | Steel |
| Materials - Left Side Panel | TG |
| Dimensions (L x W x H) | 474 x 230 x 481 mm (Incl. Protrusions), 435 x 230 x 465 mm (Excl. Protrusions) |
| Volume (incl. Protrusions) | 49.73 L |
| Motherboard Support | ITX / Micro ATX / ATX (Supporting Back-connector Motherboard) / E-ATX (*up to 12"x10.9"/ 30.5cmx27.7cm motherboards, may impact cable management) |
| Expansion Slots | 7 |
| 5.25" Drive Bays | N/A |
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 2 (Max.6) |
| I/O Panel - USB Ports | 1x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen1 Type C |
| I/O Panel - Audio In / Out | 3.5 mm Combo x 1 |
| Fan Support - Front | (Filtered) 140 mm x 3 / 120 mm x 3 |
| Fan Support - Top | (Filtered) 140 mm x 2 / 120 mm x 3 |
| Fan Support - Rear | 1x 120mm |
| Pre-installed Fans - Front | 3x 120mm ARGB Fans |
| Pre-installed Fans - Top | N/A |
| Pre-installed Fans - Rear | N/A |
| Radiator Support - Front | 120 / 140 / 240 / 280 / 360 / 420 mm (Limit: 457*140*27 mm) |
| Radiator Support - Top | 120 / 140 / 240 / 280 / 360mm |
| Radiator Support - Rear | 120mm |
| Clearance - CPU Cooler | 170mm |
| Clearance - PSU | 170 / 210mm (w/o HDD Cage) |
| Clearance - Graphics Card (installed 3.5"HDD BRK) | 360 / 410 mm (w/o front radiator) |
| Cable Routing - Behind Motherboard Tray | 33-35 mm |
| Dust Filters | Top, Front, Bottom |
| Power Supply Support | ATX |
| Series | Elite Series |
| Size | Mid Tower |
| Case Form Factor | Mid-Tower |
| Maximum GPU Length | 410 mm |
