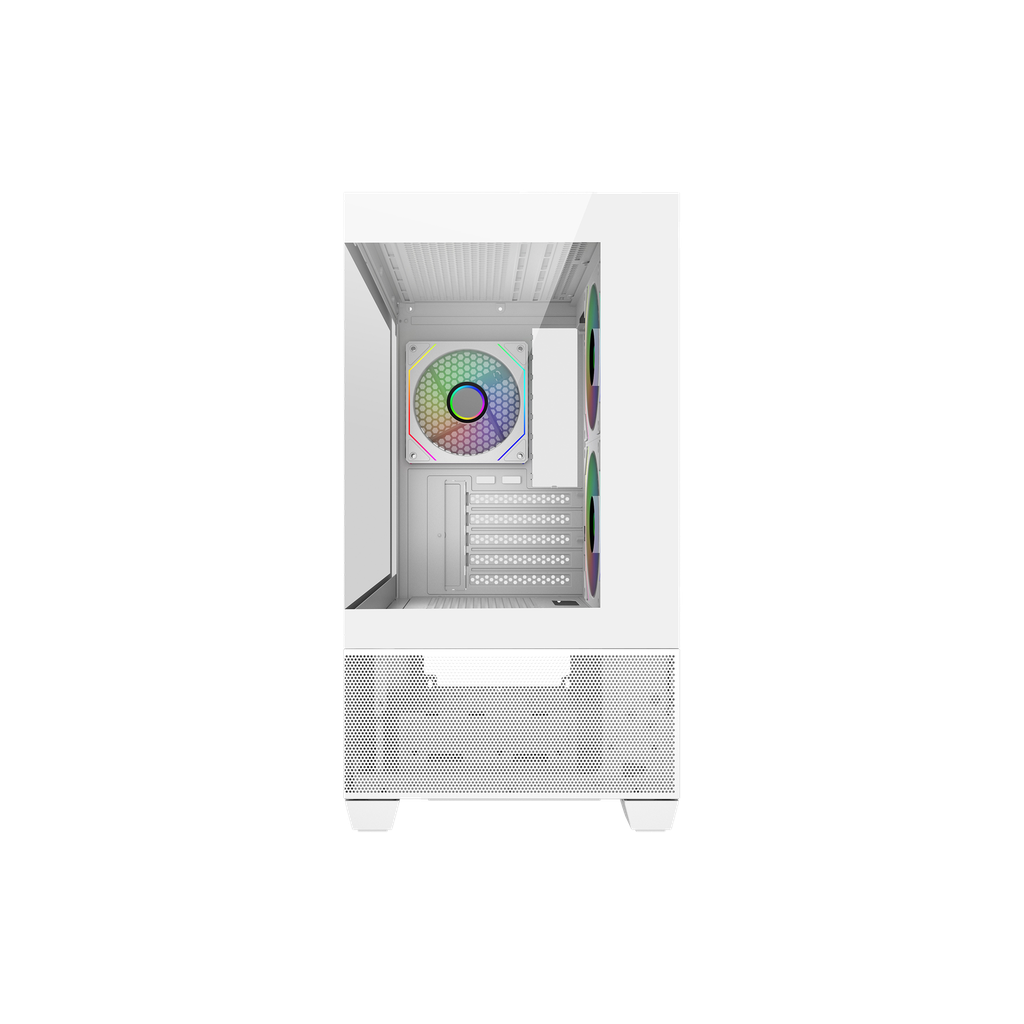

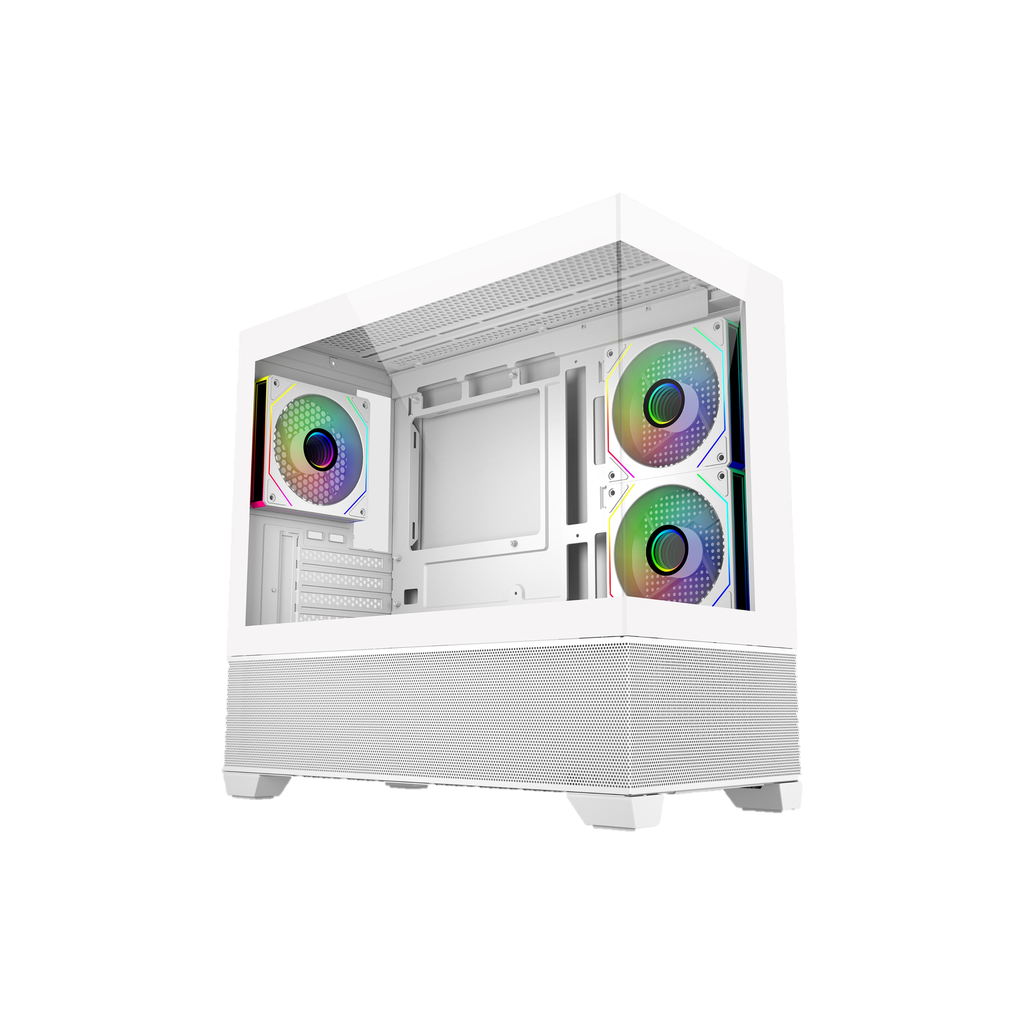

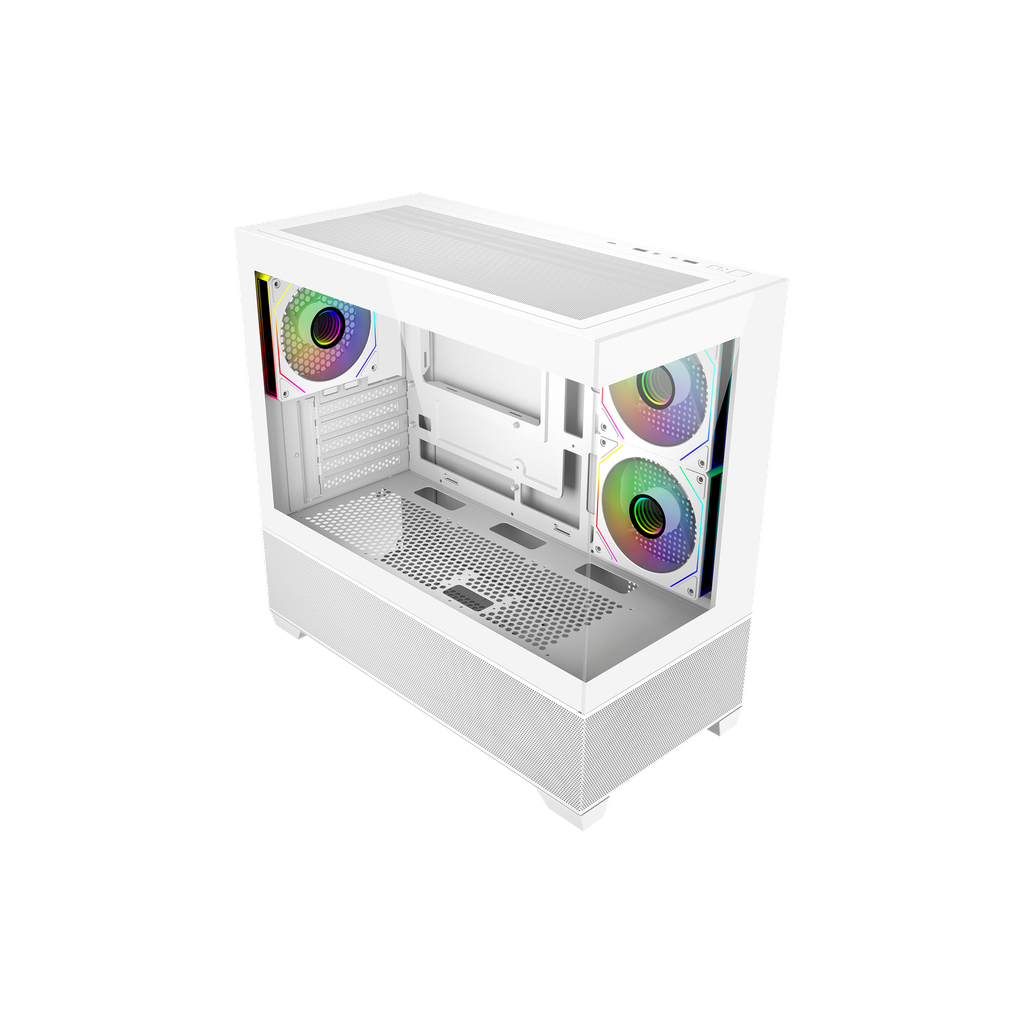

CM Case Elite 490 White E490-WHNN-S00
Part# / SKU :
E490-WHNN-S00Product Warranty :
1 Year Warranty From ManufacturerCM Case Elite 490 White E490-WHNN-S00
Supported motherboard formats: Micro-ATX, Mini-ITX.
Technical specifications
| Model Number | E490-WHNN-S00 |
|---|---|
| Materials - Front Panel | Tempered Glass |
| Material - Side Panel (Left) | Tempered Glass |
| Material - Side Panel (Right) | Steel |
| Dimensions (L x W x H) | 434 x 218 x 414 mm (Incl. Protrusions), 430 x 218 x 395 mm (Excl. Protrusions) |
| Volume | 39.16 L (Liters Incl. Protrusions) |
| Motherboard Support | ITX / Micro ATX |
| Expansion Slots | 5 |
| 5.25" Drive Bays | 0 |
| 3.5" Drive Bays | 1 (Max. 2) |
| 2.5" Drive Bays | 1 |
| I/O Panel - USB Ports | 1 x USB Type C 20Gbps, 2 x USB 3.0 |
| I/O Panel - Audio In / Out | 1x 3.5mm Combo |
| Pre-installed Fans - Rear | 1x 120mm ARGB PWM |
| Pre-installed Fans - Side Mount | 2x 120mm ARGB PWM reverse fan |
| Fan Support - Top | 2x 140mm / 3x 120mm |
| Fan Support - Rear | 1x 120mm |
| Fan Support - Side Mount | 2x 120mm |
| Fan Support - Bottom | 3x 120mm |
| Radiator Support - Top | 120 / 240 / 360 (Max memory installation height: 45 mm) |
| Clearance - CPU Cooler | 170mm |
| Clearance - PSU | 250mm |
| Clearance - Graphics Card | 425mm |
| Power Supply Support | ATX |
| Size | Mini Tower |
| Series | Elite Series |
| Case Form Factor | Mini Tower |
| Maximum GPU Length | 425 mm |
