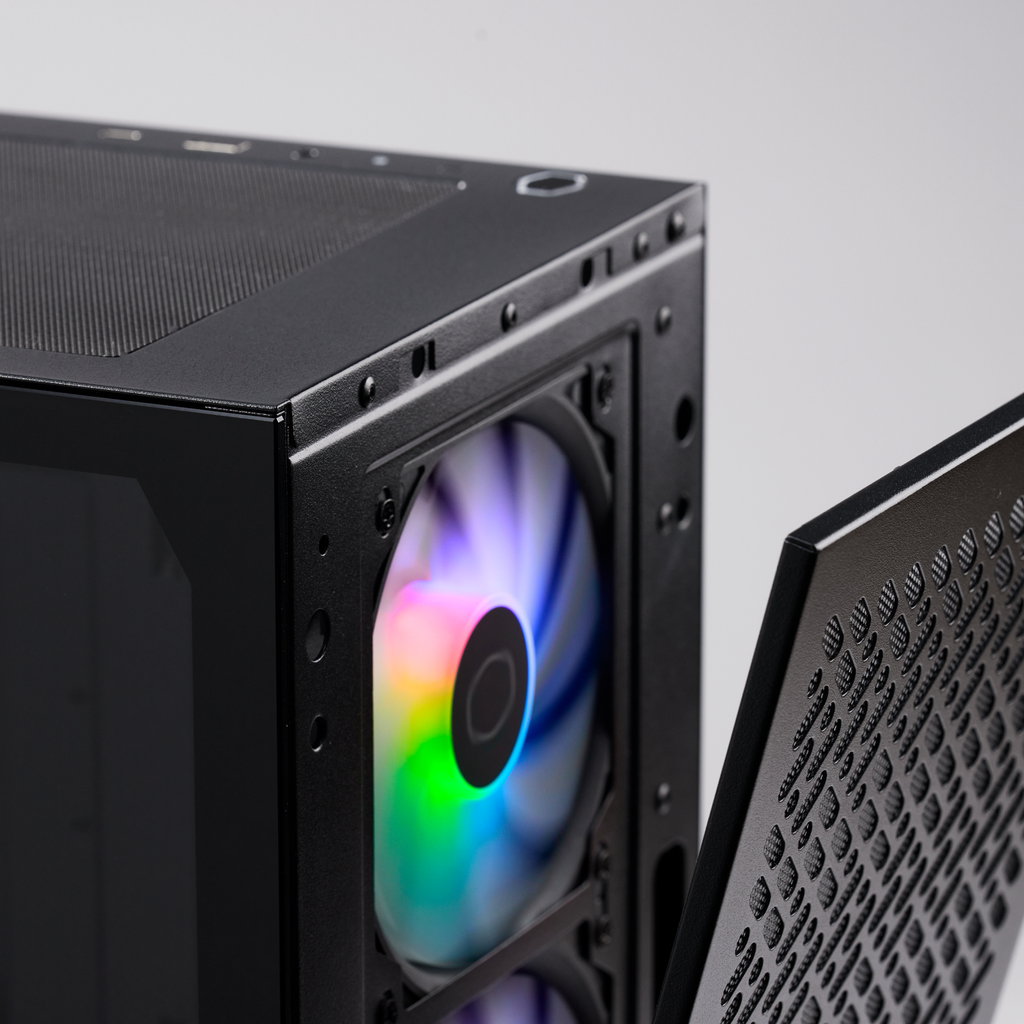

CM Case Elite 302 Black E302-KGNN-S00
Product Warranty :
One Year WarrantyCM Case Elite 302 Black E302-KGNN-S00
Supported motherboard formats: Micro-ATX, Mini-ITX.
Technical specifications
| Model Number | E302-KGNN-S00 |
|---|---|
| Materials - Exterior | Steel |
| Materials - Side panel (Right / Left) | TG / Steel |
| Dimensions (L x W x H) | 390 x 203.5 x 430mm (Incl. Protrusions), 377 x 203.5 x 410mm (Excl. Protrusions) |
| Volume (incl. Protrusions) | 34.13L |
| Motherboard Support | Mini-ITX, Micro-ATX |
| Expansion Slots | 4 |
| 5.25" Drive Bays | N/A |
| 3.5" Drive Bays | 1 |
| 2.5" Drive Bays | 1 (Max. 2) |
| I/O Panel - USB Ports | 1x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen1 Type C |
| I/O Panel - Audio In / Out | 1x 3.5mm Combo (Audio + Mic) |
| Fan Support - Front | 3x 120mm |
| Fan Support - Top | 2x 120mm / 2x 140mm |
| Fan Support - Rear | 1x 120mm |
| Pre-installed Fans - Front | Black: 3x 120mm ARGB Black, White: 3x 120mm ARGB White |
| Pre-installed Fans - Top | N/A |
| Pre-installed Fans - Rear | N/A |
| Radiator Support - Front | 120 / 240 / *360 mm (*Supported within 60mm thickness) |
| Radiator Support - Top | 120 / 140 / 240 / 280mm |
| Radiator Support - Rear | 120mm |
| Clearance - CPU Cooler | 163.5mm |
| Clearance - PSU | 160mm |
| Clearance - GFX | 365mm (without front fans & radiator) |
| Cable Routing | 18.5mm |
| Dust Filters | Top / Bottom / Front |
| Power Supply Support | ATX |
| Size | Mini Tower |
| Series | Elite Series |
| Case Form Factor | Mini Tower |
| Maximum GPU Length | 365 mm |
