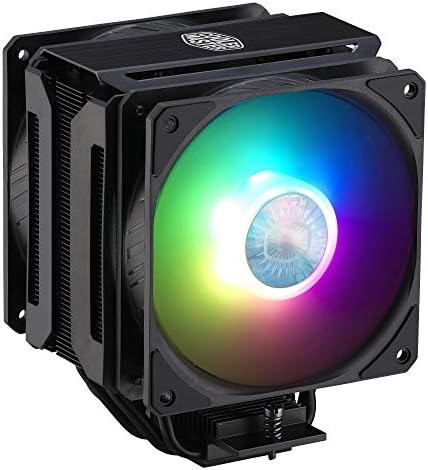

CM Air MA612 Stealth ARGB MAP-T6PS-218PA-R1
Part# / SKU :
MAP-T6PS-218PA-R1Product Warranty :
2 Year Warranty From ManufacturerCooler Master Air MA612 Stealth ARGB MAP-T6PS-218PA-R1
An air CPU cooler. The heatsink specification lists 6. The stated fan speed is 650-1800 RPM (PWM) ± 5%. The primary cooling configuration includes 2 fans. Fan lighting: ARGB. Check the stated dimensions and socket or connection requirements against your build.
Technical specifications
| Fan Rated Voltage | 12 VDC |
|---|---|
| Cooler Type | Air Cooler |
| Fan Quantity | 2 PCS |
| Fan Power Connector | 4-Pin (PWM) |
| CPU Socket | LGA2066 |
| Series | MasterAir |
| Fan MTTF | 160,000 Hours |
| Warranty | 5 years |
| Fan Safety Current | 0.37A |
| Heatpipes | 6 |
| Heat Sink Material | 6 Heat Pipes |
| Fan Power Consumption | 1.8W |
| Fan Rated Current | 0.15A |
| Dimensions (L x W x H) | 120 x 120 x 25 mm / 4.7 x 4.7 x 1.0 inch |
| Note | AM5 mounting kits are included from a certain point in production. You might receive the cooler without the AM5 bracket. You may obtain the requiered mounting kits for products through the CM store, regional resellers and distributors. |
| Fan Noise Level | 8 - 27 dBA |
| Fan Speed | 650-1800 RPM (PWM) ± 5% |
| Fan Airflow | 62 CFM (Max) |
| Fan Air Pressure | 2.5 mmH₂O |
| Product Number | MAP-T6PS-218PA-R1 |
| Type | Air |
| Number of Fans | 2 |
| Fan Lighting | ARGB |
