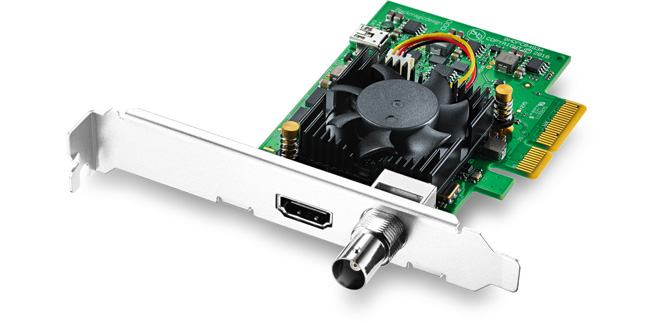

BMD Decklink Mini Recorder 4K
Product Warranty :
One Year WarrantyBMD Decklink Mini Recorder 4K
Manufacturer specifications for DeckLink Mini Recorder 4K.
Sources: Manufacturer specifications
| Product type | Video capture card |
|---|---|
| SDI Video Inputs | 1 x 10-bit SD/HD/Ultra HD switchable. |
| SDI Audio Inputs | 16 channels embedded in SD, HD, Ultra HD. |
| HDMI Video Inputs | 1 x HDMI 2.0a connector. |
| HDMI Audio Inputs | 8 Channels embedded in SD, HD, Ultra HD. |
| Computer Interface | PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots. |
| Software Included | Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. |
| Internal Software Upgrade | Firmware built into software driver. Loaded at system start or via updater software. |
| Physical Installation | PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements. |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 |
| 2K Video Standards (SDI ONLY) | 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI F25PsF |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 |
| 4K DCI Video Standards | 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p. |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE 2081, ITU-R BT.656 and ITU-R BT.601. |
| SDI Metadata Support | RP 188/SMPTE 12M-2 and closed captioning. |
| Audio Sampling | Television standard sample rate of 48 kHz and 24 bit. |
| SDI Video Sampling | 4:4:4 & 4:2:2 |
| SDI Color Precision | 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p60, and 8, 10-bit YUV 4:2:2 in all modes. |
| Color Space | REC 601, REC 709, REC 2020. |
| SDI HDR Support | HDR static metadata packing, HLG and PQ transfer characteristics. |
| HDMI Video Sampling | 4:4:4, 4:2:2 & 4:2:0 |
| HDMI Configuration | HDMI 2.0a supports Deep Color and HDR. |
| HDMI Color Precision | Up to 12-bit (Deep Color) |
| HDMI HDR Support | HDR static metadata packing, HLG and PQ transfer characteristics. |
| Multiple Rate Support | HDMI and SDI video connections are switchable between SD/HD/2K and 4K. |
| Copy Protection | HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. |
| Colorspace Conversion | Hardware based real time. |
| HD to SD Down Conversion | Software based down conversion during video capture. |
| HD Up Conversion | Built in, high quality software up converter from SD to HD on input. Selectable between 16:9 Zoom or anamorphic. |
| Power Consumption | 8 W |
| Operating temperature | 5° to 40° C (32° to 104° F) |
| Storage temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
