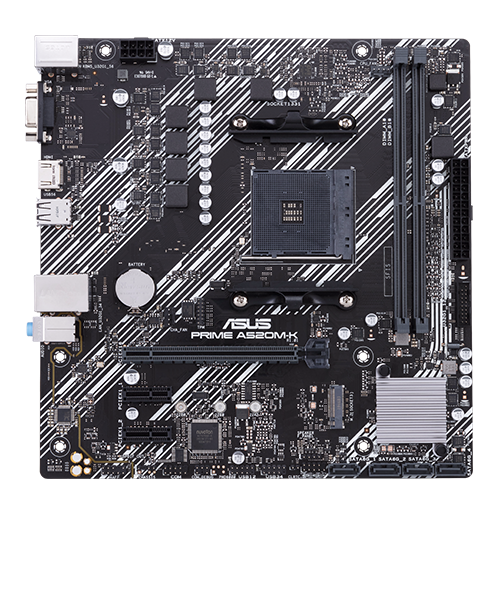

Asus Prime A520M K Board
Part# / SKU :
PRIME-A520M-KProduct Warranty :
3 Year Warranty From ManufacturerBarcode :
PRIME-A520M-KAsus Board Prime A520M K
Asus Board Prime A520M K is a Micro-ATX board based on the AMD A520 chipset. It provides 2 DIMM slots; supported memory types, capacities and speeds are listed below where confirmed. Processor compatibility, memory speeds and available interface modes depend on the installed CPU, memory configuration and BIOS support. Check the manufacturer CPU and memory support lists when planning a build.
Technical specifications
| Model | PRIME A520M-K |
|---|---|
| CPU | AMD Socket AM4 for AMD Ryzen ™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors* *Refer to www.asus.com for CPU support list. |
| Chipset | AMD A520 Chipset |
| Memory | 2 x DIMM slots, max. 64GB, DDR4 5100(OC)/ 4866(OC)/ 4666(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133, Un-buffered Memory* Dual Channel Memory Architecture *ECC memory(ECC mode) support varies by CPU. *Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphics | 1 x D-Sub 1 x HDMI ™ 2.1(4K@60HZ) |
| Expansion Slots | AMD Ryzen ™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors 1 x PCIe 3.0 x16 slot (supports x16 mode) AMD A520 Chipset 2 x PCIe 3.0 x1 slots |
| Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports AMD Ryzen ™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) AMD A520 Chipset 4 x SATA 6Gb/s ports Support RAID 0, 1, 10 |
| Ethernet | 1 x Realtek RTL8111H 1Gb Ethernet |
| USB | Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Dedicated audio PCB layers *A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

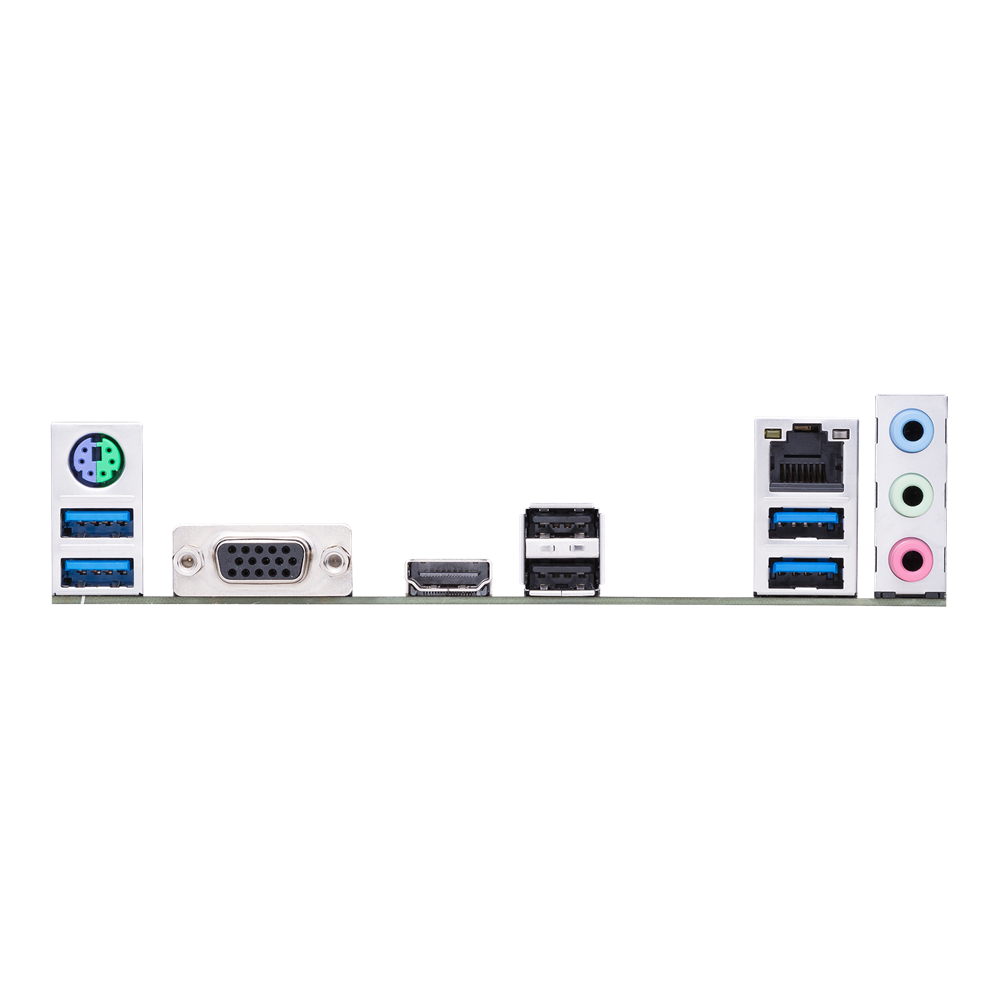

| Back Panel I/O Ports | 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x D-Sub port 1 x HDMI ™ port 1 x Realtek RTL8111H 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors | Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
| Special Features | ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design |
| Software Features | ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance and Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Windows 11, Windows 10 64-bit |
| Form Factor | mATX Form Factor 8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm ) |
| DIMM Slots | 2 |
| Motherboard Form Factor | Micro-ATX |
| Board Chipset | AMD A520 |
| Platform | AMD |
