AsRock Board H610M-X DDR5
Part# / SKU :
H610M-XProduct Warranty :
Three Year WarrantyBarcode :
4710483947056AsRock Board H610M-X DDR5

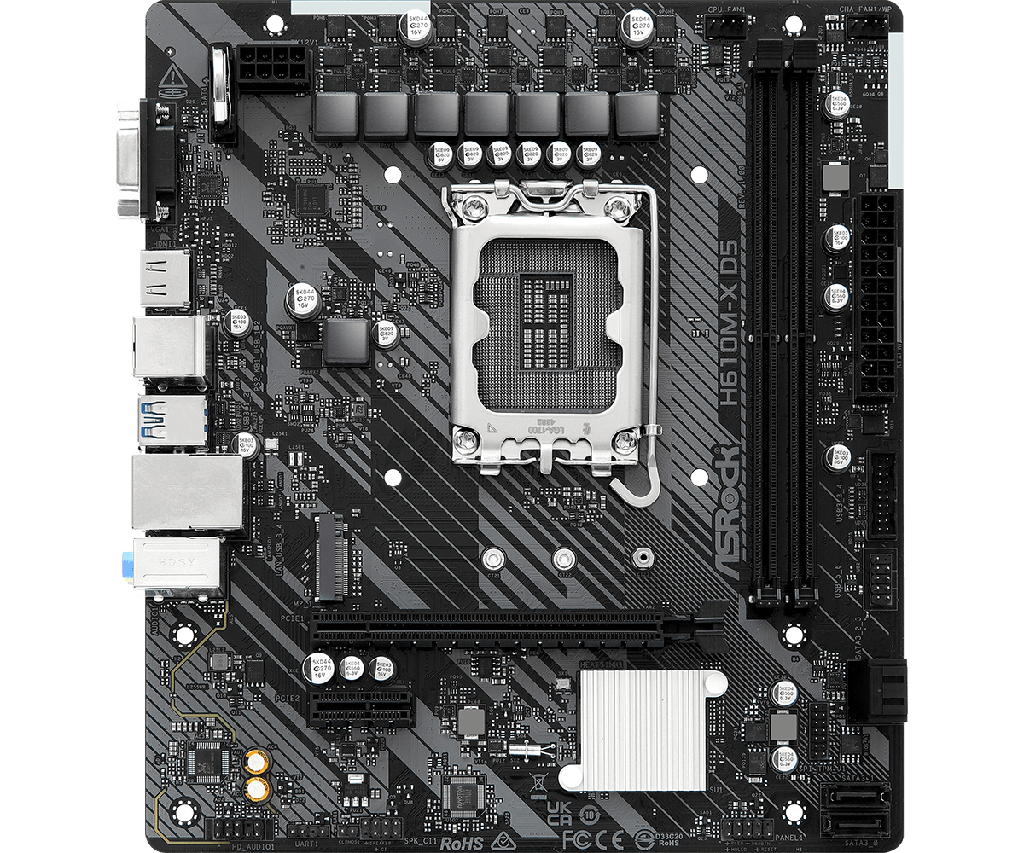

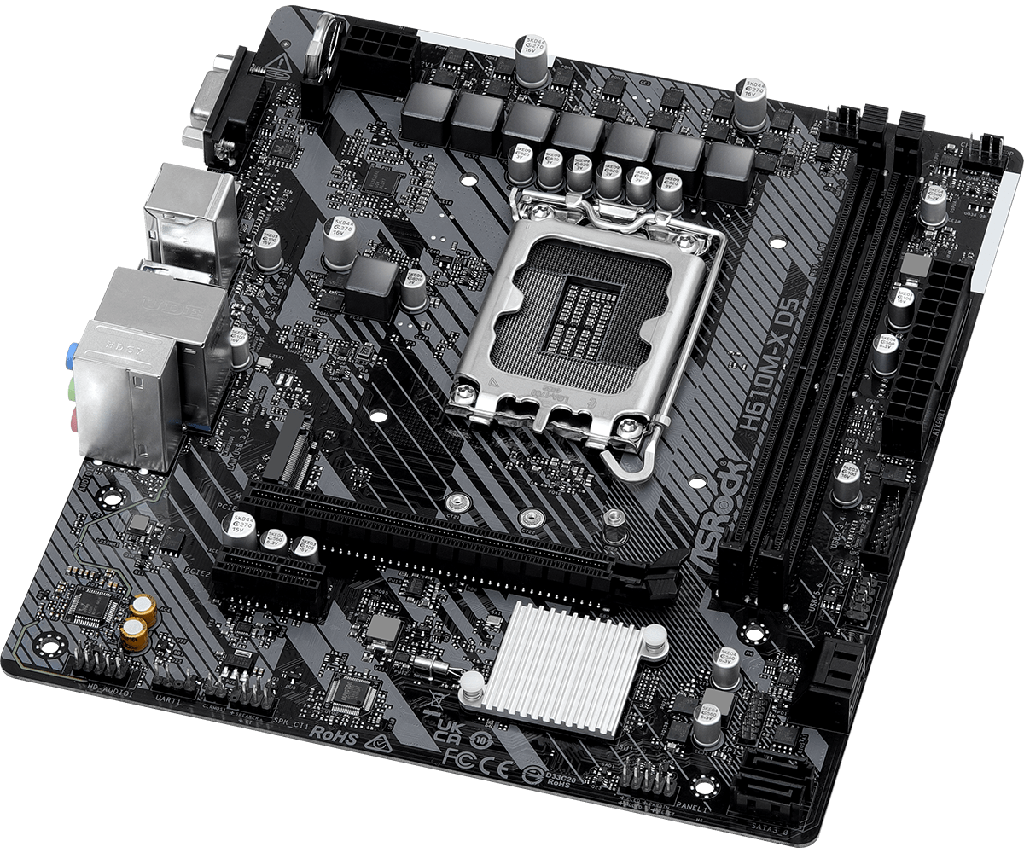

AsRock Board H610M-X DDR5 is a Micro-ATX board based on the Intel H610 chipset. It provides 2 DIMM slots; supported memory types, capacities and speeds are listed below where confirmed. Processor compatibility, memory speeds and available interface modes depend on the installed CPU, memory configuration and BIOS support. Check the manufacturer CPU and memory support lists when planning a build.
Technical specifications
| Unique Feature | Superb Productivity - Dual Channel DDR5 Rock-Solid Durability - 6+1+1 Power Phase Ultrafast Connectivity - 2.5G LAN EZ Update - ASRock Auto Driver Installer |
|---|---|
| CPU | - Supports 14 th , 13 th & 12 th Gen Intel ® Core™ Processors (LGA1700) - Supports Intel ® Hybrid Technology - Supports Intel ® Turbo Boost Max 3.0 Technology |
| Chipset | - Intel ® H610 |
| Memory | - Dual Channel DDR5 Memory Technology - 2 x DDR5 DIMM Slots - 14 th and 13 th Gen Intel ® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 5600 * - 12 th Gen Intel ® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 4800 * - Max. capacity of system memory: 128GB - Supports Intel ® Extreme Memory Profile (XMP) 3.0 * Actual support may vary by CPU |
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | - Intel ® Xe Graphics Architecture (Gen 12) - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz * Intel ® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
| Slots | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode * Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE2) * * Supports NVMe SSD as boot disks |
| Storage | Chipset: - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode * - 4 x SATA3 6.0 Gb/s Connectors * * Supports NVMe SSD as boot disks |
| USB | - 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) - 6 x USB 2.0 (4 Rear, 2 Front) * All USB ports support ESD Protection |
| Connector | - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin) * - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) * * - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) * CPU_FAN1 supports the fan power up to 1A (12W). * * CHA_FAN1/WP supports the fan power up to 2A (24W). CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. |

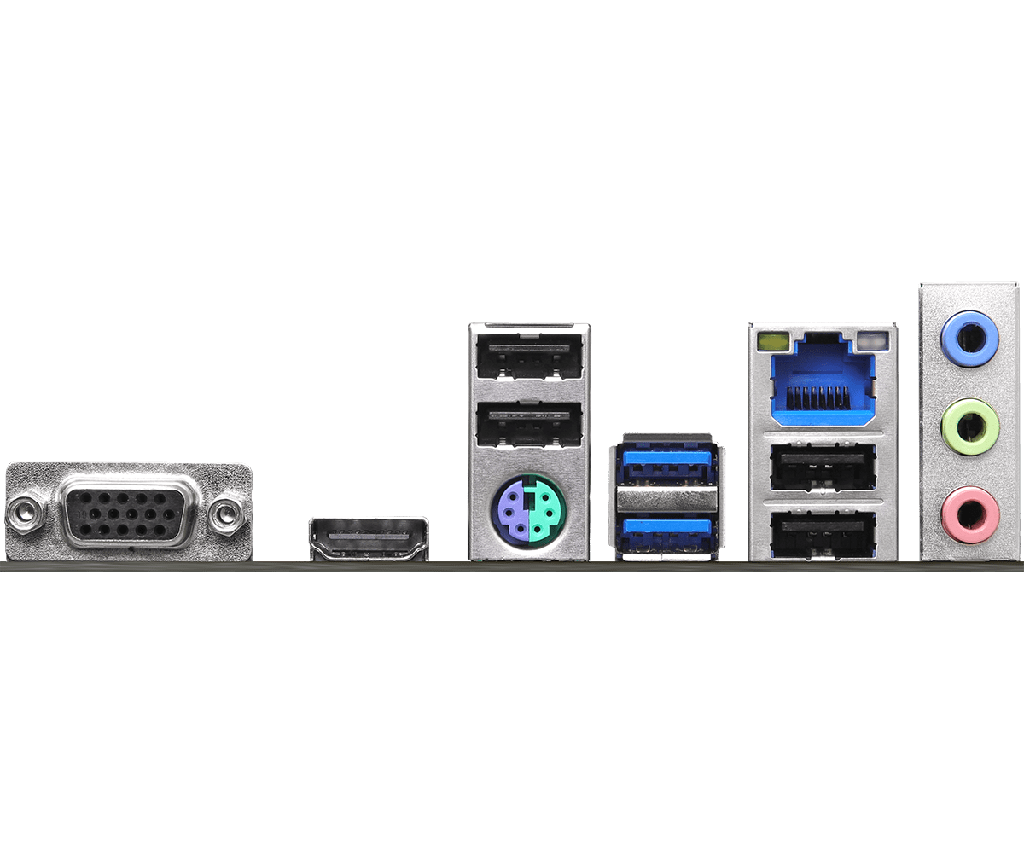

| Rear Panel I/O | - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x HDMI Port - 2 x USB 3.2 Gen1 Type-A Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software * UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash * These utilities can be downloaded from ASRock Live Update & APP Shop. |
| Form Factor | - Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm - Solid Capacitor design |
| OS | - Microsoft Windows ® 10 64-bit / 11 64-bit |
| Certifications | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
| DIMM Slots | 2 |
| Motherboard Form Factor | Micro-ATX |
| Platform | Intel |
| Board Chipset | Intel H610 |
